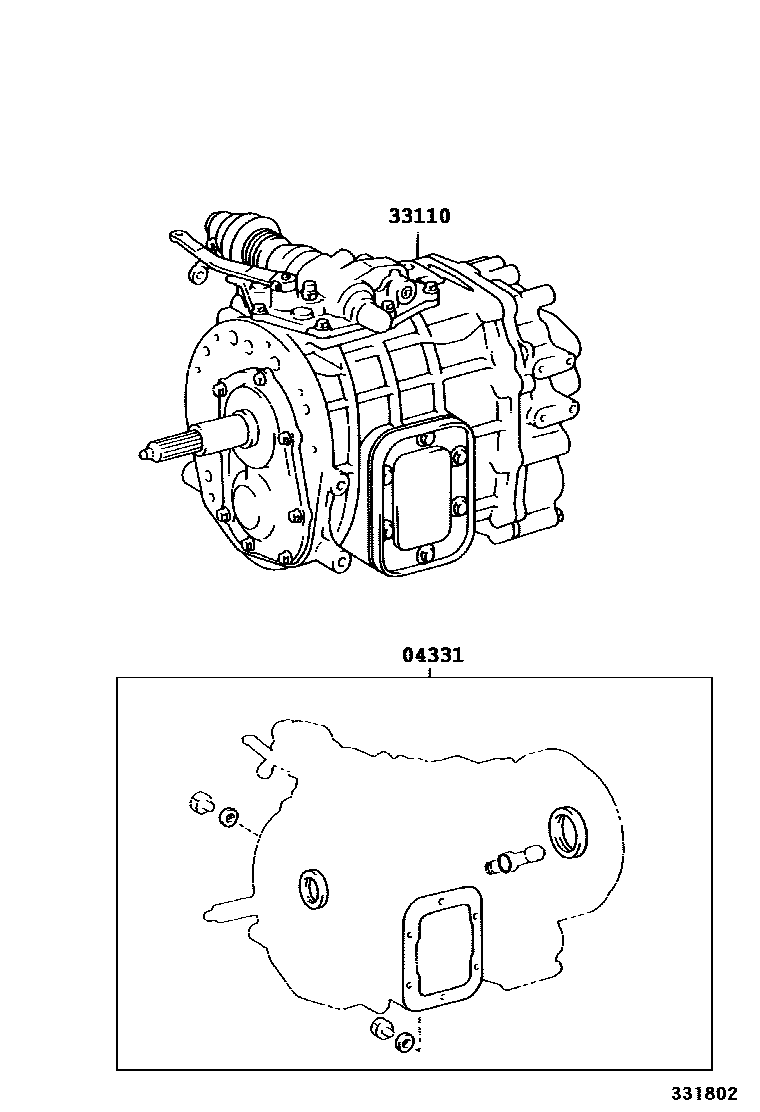

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1M152,M155 0003 1H260 0004 1M551

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-36080iBB4#199301-199907

main04331-36090iBZB40,50,HZB4#,5#..5F199301-200408

main04331-36100iHDB5#..6F199705-200408

main04331-36370iXZB50,51..5F200408-201501

main04331-36380iXZB40..5F..IV5200408-201501

main04331-36410iBZB40,50..STD200408-201501

33110TRANSMISSION ASSY, MANUAL

main33110-36A20iXZB50..WC..5F;XZB40,51..5F..CBU200408-201108

sub33110-36A21

main33110-36A21iXZB40,50,51..5F201108-201309

sub33110-36A22

main33110-36A22iXZB40,50,51..5F201309-201501

main33110-3J360iBB4#..(LX,STD)..WC199505-199907

main33110-3J390iHZB4#,50..5F199505-199907

main33110-3J441iHZB4#,50..5F199907-200408

main33110-3J450iHDB51..SULNG..5F199505-199705

main33110-3J490iHZB56..5F199505-199907

main33110-3J500iHDB5#..(EX,GX)..5F199505-199705

main33110-3J521iHZB56..5F199907-200408

main33110-3J570iHDB5#..6F199705-199907

main33110-3J610iHDB5#..6F199907-200408

main33110-3J660iBZB40,50200203-201501

main33110-3J740iXZB50,51..6F200408-200708

main33120-3E420iBB40..WOC199301-199505

main33120-3E440iBB46;BB40..WC199301-199505

main33120-3E500iBB40..WOC199505-199907

main33120-3E580iHZB4#,50..5F199301-199505

main33120-3E610iHDB51..SULNG..5F199301-199505

main33120-3E650iHZB56..5F199301-199505

main33120-3E660iHDB5#..(EX,GX)..5F199301-199505

2 parts on this diagram · 3 diagrams in section
