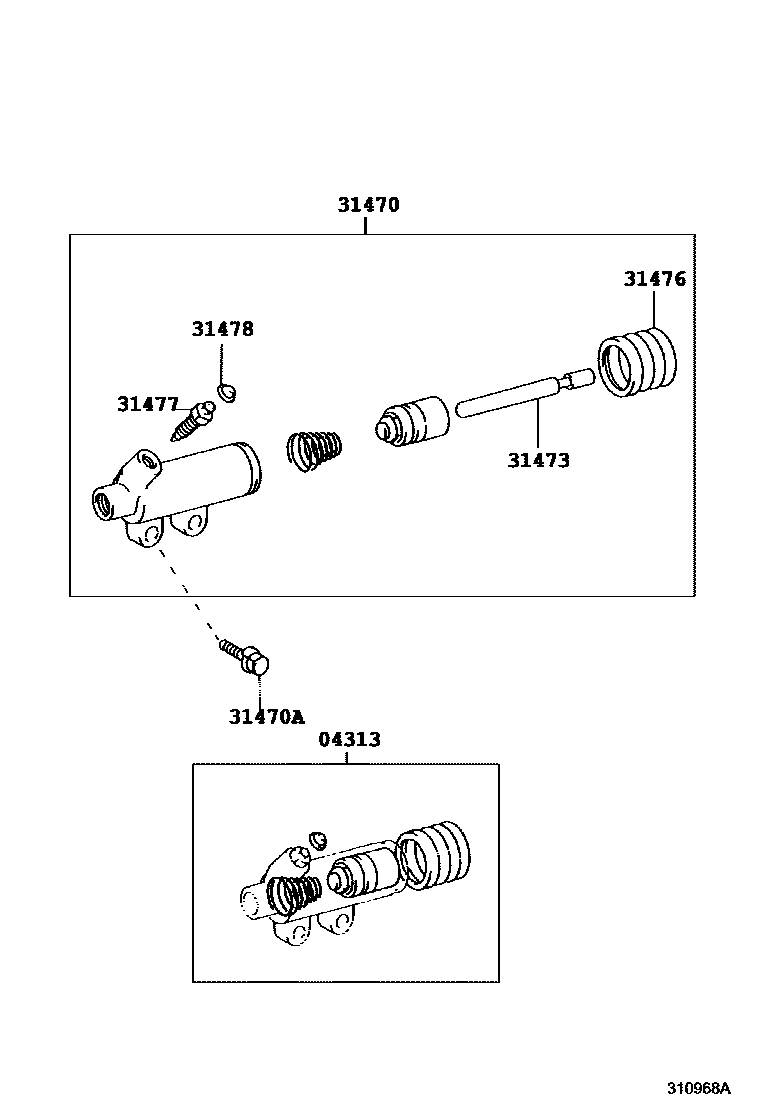

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-12030iBB4#199301-199907

main04313-36130iHDB5#,HZB4#,5#..5F199301-199408

main04313-36180iHDB5#,HZB4#,5#..MTM199408-199907

main04313-37030iBZB40,50..STD200408-201108

main04313-37090iXZB50..WOC;XZB40..5F..IV5200801-200908

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-36221iBB4#199301-199907

main31470-36290iHDB5#,HZB4#,5#..5F199301-199408

main31470-36291iHDB5#,HZB4#,5#..MTM199907-200408

main31470-37040iBZB40,50200203-200408

main31470-37080iXZB50..WC..5F;XZB40,51..5F..CBU200408-201310

main31470-37081iXZB40,50,51..5F201501

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-B0825×2iXZB50,51..6F200408-200708

main91611-G0820×2iBB4#199301-199907

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-14030iBZB40,50200203-200408

main31473-22010iBB4#199301-199907

main31473-37050iXZB50,51..6F200408-200708

main31473-60080iHDB5#,HZB4#,5#..MTM199907-200408

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iBZB40,50,XZB40,50,51..5F201501

main31476-36010iHDB5#,HZB4#,5#..MTM199907-200408

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iBZB40,50,HDB5#,HZB4#,5#..MTM199907-200408

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iXZB50..WC..5F;XZB40..5F..CBU;BZB40,50,XZB51..HRF..5F200408-201501

7 parts on this diagram · 1 diagram in section
