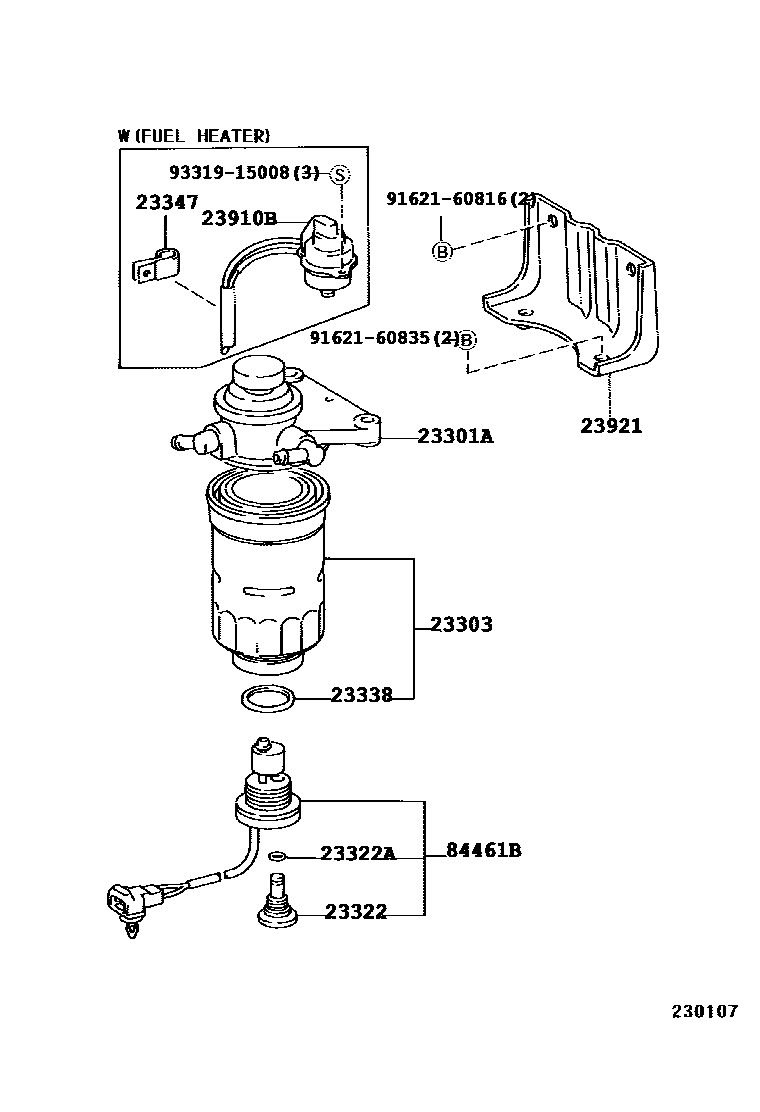

FUEL FILTER

0001 1 0002 1 0003 1 0004 1 0005 1���� ���� 0006 1����� ����

23301ACAP ASSY, FUEL FILTER

main23301-17190i1HD#,1HZ..HDB5#,HZB4#,5#199301-199907

main23301-17200i1HD#,1HZ..HDB5#,HZB4#,5#199301-199907

main23301-58150i3B..BB4#199301-199907

main23301-58160i3B..BB4#199301-199907

main23301-58160i15BF..BB5#199512-199907

main23380-17430iN04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)199907-200811

sub23380-17431

main23380-17431iN04C..XZB50..WOC;N04C..XZB51..IV5;N04C..XZB40..5F..IV5200811-201501

main23380-17440iN04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)199907-200812

sub23380-17441

main23380-17441iN04C..XZB4#,5#200812-201501

23303ELEMENT SUB-ASSY, FUEL FILTER

main23303-64010i15BF,3B..BB4#,5#199301-199907

main23390-64480i15BFTE..BB58199907-200408

main23390-78280iN04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)200408-200812

main23390-78280iN04C..XZB50..WOC;N04C..XZB40..5F..IV5;N04C..XZB51..6FC..IV5200408-201501

main23390-78300iN04C..XZB50..WOC;N04C..XZB51..IV5;N04C..XZB40..5F..IV5200812-201501

main23390-78300iN04C..XZB4#,5#201501

23322PLUG, DRAIN(FOR FUEL FILTER)

main23322-64020i1HD#,1HZ..HDB5#,HZB4#,5#199301-199907

main23388-64470iN04C..XZB4#,5#199907-201501

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i15BF,3B..BB4#,5#199301-201501

23338GASKET(FOR WARNING SWITCH)

main23344-64010i1HD#,1HZ..HDB5#,HZB4#,5#199301-201501

23347CLIP, CORD

main23347-54010i1HD#,1HZ..HDB5#,HZB4#,5#199301-199907

23910BHEATER ASSY, FUEL

main23910-17050i15BF,3B..BB4#,5#199301-199907

main23910-17070i15BFTE..BB58199907-200408

main23910-17070iN04C..XZB51..SULNG200408-201501

23921SUPPORT, FUEL FILTER

main23921-17040i15BF,3B..BB4#,5#199301-201501

84461BSWITCH, LEVEL WARNING

main84461-28040iHDB5#,HZB4#,5#199907-201202

sub84461-28041

main84461-28041iXZB4#,5#201203-201612

main84461-36080iHDB5#,HZB4#,5#199301-199907

sub84461-36090

9162160816

main91621-60816

9162160835

main91621-60835

9331915008

main93319-15008

12 parts on this diagram · 6 diagrams in section
