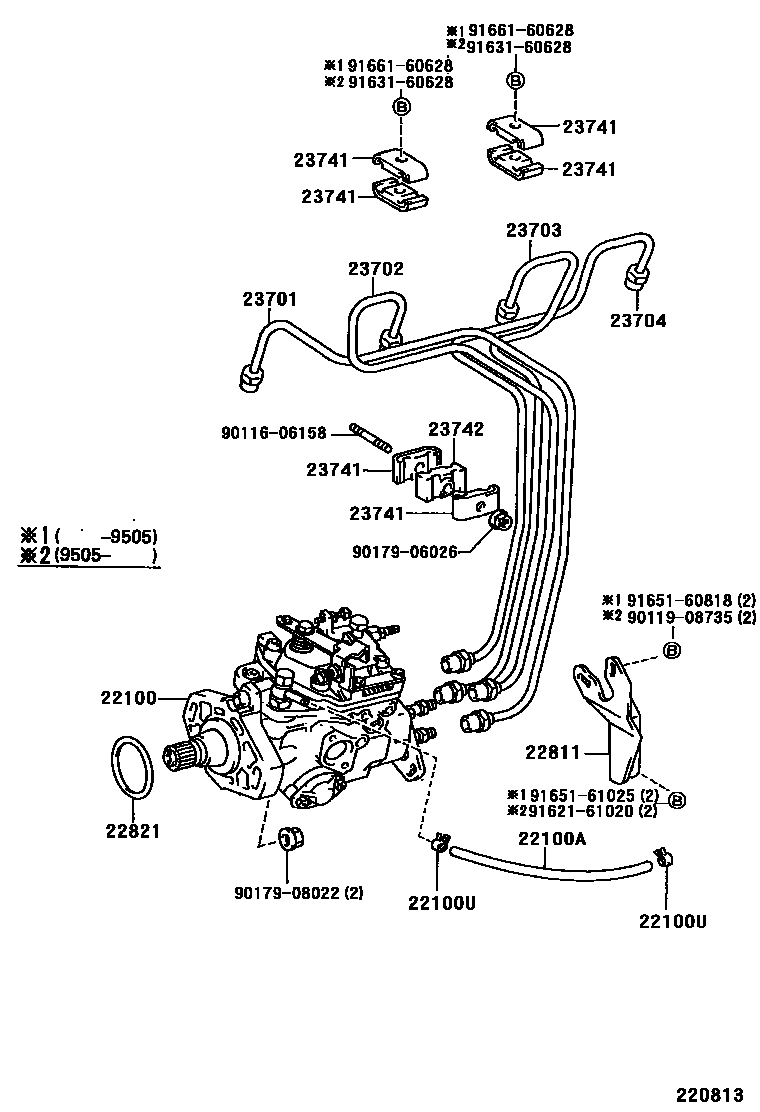

INJECTION PUMP ASSEMBLY

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-17420i1HDT..HDB5#..5F¥387,000199301-199505

main22100-17430i1HDT..HDB5#..4FC¥387,000199301-199505

main22100-17650i1HZ..HZB4#,5#..5F¥319,000199301-199505

sub22100-17651¥319,000

main22100-17660i1HZ..HZB4#,5#..5F¥352,000199301-199505

sub22100-17661¥352,000

main22100-17690i1HZ..HZB4#,5#..4FC¥341,000199301-199505

sub22100-17691¥342,000

main22100-17700i1HZ..HZB4#,5#..4FC¥375,000199301-199505

main22100-1B060i1HZ..HZB4#,5#..5F¥395,000199505-199907

sub22100-17830¥396,000

main22100-1B110i1HZ..HZB4#,5#..4FC¥408,000199505-199907

main22100-1B120i1HDFT..HDB5#..MTM¥402,000199505-199907

main22100-1B130i1HDFT..HDB5#..4FC¥416,000199505-199907

main22100-1C250i1HZ..HZB4#,5#..5F¥437,000199907-200408

main22100-1C260i1HZ..HZB4#,5#..4FC¥378,000199907-200408

main22100-1C360i1HDFTE..HDB5#¥409,000199907-200105

sub22100-1C361¥411,000

sub82989-36010¥600

sub82999-12020¥170

main22100-1C361i1HDFTE..HDB5#¥411,000200105-200408

main22100-58870i3B..BB4#¥274,000199301-199505

main22100-5C100i15BF..BB55¥333,000199512-199612

main22100-5C310i3B..BB4#¥274,000199505-199907

main22100-5C410i15BF..BB5#¥319,000199612-199907

main22100-5C610i15BFTE..BB58¥352,000199907-200108

sub22100-5C700¥354,000

sub82817-65050¥180

sub82989-36010¥600

sub82989-65020¥600

sub82999-12020¥170

sub90463-15002¥120

main22100-5C700i15BFTE..BB58¥354,000200108-200408

main22100-78180iN04C..XZB4#,5#¥207,000200408-200504

sub22100-78181¥207,000

main22100-78181iN04C..XZB4#,5#¥207,000200504-200506

sub22100-78182¥207,000

main22100-78182iN04C..XZB4#,5#¥207,000200506-200511

sub22100-78183¥207,000

main22100-78183iN04C..XZB4#,5#¥207,000200511-200708

sub22100-78184¥206,000

main22100-78231iN04C..XZB4#,5#¥214,000200708-200709

sub22100-78232¥214,000

main22100-78232iN04C..XZB4#,5#¥214,000200709-200803

sub22100-78233¥214,000

main22100-78233iN04C..XZB4#,5#¥214,000200803-200805

sub22100-78234¥214,000

main22100-78234iN04C..XZB4#,5#¥214,000200805-200905

sub22100-78235¥214,000

main22100-78235iN04C..XZB4#,5#¥214,000200905-200909

sub22100-78236¥214,000

main22100-78236iN04C..XZB4#,5#¥214,000200909-200912

sub22100-78237¥214,000

main22100-78237iN04C..XZB4#,5#¥214,000200912-201108

sub22100-E0067¥114,000

main22100-E0540iN04C..XZB4#,5#¥114,000201108-201612

sub22100-E0541¥114,000

sub26223-E0010¥970

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23271-17090i1HD#,1HZ..HDB5#,HZB4#,5#¥1,720199309-200408

sub23271-17091¥1,080

main23271-17140i1HDFTE..HDB5#¥2,380199907-200408

main23271-78300iN04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD¥2,080200408-200607

sub23271-78301¥2,070

main23271-78301iN04C..XZB4#,5#..4FC,6F¥2,070200608-201012

sub23271-78302¥2,070

main23271-78302iN04C..XZB4#,5#¥2,070201101-201108

main95332-10040i3B..BB4#¥1,160199301-199907

main95332-10048i15BF..BB5#¥1,160199602-199907

main95332-10050i15BF..BB55¥1,080199512-199602

sub95332-10060¥1,700

main95332-12028i1H#..HDB5#,HZB4#,5#¥820199301-199309

main95332-12038i15BFTE..BB58¥1,070199907-200408

22100UCLIP, HOSE FUEL(FOR INJECTION PUMP)

main90467-18002i15BFTE..BB58¥230199907-200408

sub90467-18008¥110

main90467-18008iN04C..XZB51..SULNG¥110200408-201108

main96132-41500i15BF,3B..BB4#,5#¥90199301-199907

22811STAY, INJECTION PUMP, NO.1

main22811-17010i1H#..HDB5#,HZB4#,5#¥2,600199301-199505

sub22811-17011¥1,650

main22811-17011i1HZ..HZB4#,5#¥1,650199505-199907

main22811-17020i1HDFT..HDB5#¥4,000199505-199907

main22811-17030i1H#..HDB5#,HZB4#,5#¥770199907-200408

main22811-56050i3B..BB4#¥1,400199301-199505

main22811-58030i15BF,3B..BB4#,5#¥1,070199505-199907

sub22811-58031¥890

main22811-58060i15BFTE..BB58¥910199907-200408

main22811-78141iN04C..XZB4#,5#¥5,200201108-201501

22821GASKET, INJECTION PUMP

main90301-49003i15BF,3B..BB4#,5#¥170199301-200408

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-17010i1HZ..HZB4#,5#¥1,880199301-199505

main23701-17020i1HDT..HDB5#¥3,110199301-199505

main23701-17040i1HZ..HZB4#,5#¥1,180199505-200408

main23701-17050i1HDFT..HDB5#¥3,420199505-199509

sub23701-17051¥3,440

main23701-17051i1HDFT..HDB5#¥3,440199509-199907

main23701-17060i1HDFTE..HDB5#¥3,430199907-200408

main23701-58010i3B..BB4#¥2,890199301-199505

main23701-58011i3B..BB4#¥2,900199505-199907

main23701-58030i15BF..BB5#¥2,760199512-199907

main23701-58070i15BFTE..BB58¥3,510199907-200104

sub23701-58071¥3,520

main23701-58071i15BFTE..BB58¥3,520200104-200408

main23701-78090iN04C..XZB51..SULNG¥14,600200408-200708

subS2371-12650¥9,300

main23701-78131iN04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5¥12,100200708-201101

sub23701-E0012¥7,700

main23701-78160iN04C..XZB4#,5#¥8,300201108-201501

main23701-E0012iN04C..XZB4#,5#¥7,700201101-201108

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-17010i1HZ..HZB4#,5#¥1,880199301-199505

main23702-17020i1HDT..HDB5#¥3,110199301-199505

main23702-17040i1HZ..HZB4#,5#¥1,180199505-200408

main23702-17050i1HDFT..HDB5#¥3,420199505-199509

sub23702-17051¥3,440

main23702-17051i1HDFT..HDB5#¥3,440199509-199907

main23702-17060i1HDFTE..HDB5#¥3,430199907-200408

main23702-58010i3B..BB4#¥2,890199301-199505

main23702-58011i3B..BB4#¥2,900199505-199907

main23702-58030i15BF..BB5#¥2,760199512-199907

main23702-58070i15BFTE..BB58¥3,510199907-200104

sub23702-58071¥3,520

main23702-58071i15BFTE..BB58¥3,520200104-200408

main23702-78090iN04C..XZB51..SULNG¥13,600200408-200708

subS2371-22620¥8,700

main23702-78131iN04C..XZB50..WOC;N04C..XZB51..IV5;N04C..XZB40..5F..IV5¥12,100200708-201101

sub23702-E0012¥7,700

main23702-78160iN04C..XZB4#,5#¥8,300201108-201501

main23702-E0012iN04C..XZB4#,5#¥7,700201101-201108

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-17010i1HZ..HZB4#,5#¥1,880199301-199505

main23703-17020i1HDT..HDB5#¥3,110199301-199505

main23703-17040i1HZ..HZB4#,5#¥1,180199505-200408

main23703-17050i1HDFT..HDB5#¥3,420199505-199509

sub23703-17051¥3,440

main23703-17051i1HDFT..HDB5#¥3,440199509-199907

main23703-17060i1HDFTE..HDB5#¥3,430199907-200408

main23703-58010i3B..BB4#¥2,890199301-199505

main23703-58011i3B..BB4#¥2,900199505-199907

main23703-58030i15BF..BB5#¥2,760199512-199907

main23703-58070i15BFTE..BB58¥3,510199907-200104

sub23703-58071¥3,520

main23703-58071i15BFTE..BB58¥3,520200104-200408

main23703-78090iN04C..XZB51..SULNG¥12,600200408-200708

subS2371-32550¥7,900

main23703-78121iN04C..XZB50..WOC;N04C..XZB51..IV5;N04C..XZB40..5F..IV5¥12,100200708-201101

sub23703-E0012¥7,700

main23703-78150iN04C..XZB4#,5#¥8,300201108-201608

sub23703-78151¥8,300

main23703-78151iN04C..XZB4#,5#¥8,300201609

main23703-E0012iN04C..XZB4#,5#¥7,700201101-201108

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-17010i1HZ..HZB4#,5#¥1,880199301-199505

main23704-17020i1HDT..HDB5#¥3,110199301-199505

main23704-17040i1HZ..HZB4#,5#¥1,180199505-200408

main23704-17050i1HDFT..HDB5#¥3,420199505-199509

sub23704-17051¥3,440

main23704-17051i1HDFT..HDB5#¥3,440199509-199907

main23704-17060i1HDFTE..HDB5#¥3,430199907-200408

main23704-58010i3B..BB4#¥2,890199301-199505

main23704-58011i3B..BB4#¥2,900199505-199907

main23704-58030i15BF..BB5#¥2,760199512-199907

main23704-58070i15BFTE..BB58¥3,510199907-200104

sub23704-58071¥3,520

main23704-58071i15BFTE..BB58¥3,520200104-200408

main23704-78080iN04C..XZB51..SULNG¥12,600200408-200708

subS2371-42570¥7,900

main23704-78121iN04C..XZB50..WOC;N04C..XZB51..IV5;N04C..XZB40..5F..IV5¥12,100200708-201101

sub23704-E0012¥7,700

main23704-78150iN04C..XZB4#,5#¥8,300201108-201602

sub23704-78151¥8,300

main23704-78151iN04C..XZB4#,5#¥8,300201603

main23704-E0012iN04C..XZB4#,5#¥7,700201101-201108

23741CLAMP, INJECTION PIPE, NO.1

main23741-17010i1HDT,1HZ..HDB5#,HZB4#,5#¥240199301-200408

main23741-17020i1HZ..HZB4#,5#¥530199301-200408

main23741-17030i1HDT,1HZ..HDB5#,HZB4#,5#¥350199301-200408

main23741-17040i1HDFT..HDB5#¥550199505-199907

main23741-17050i1HDFTE..HDB5#¥1,480199907-200102

sub23741-17051¥1,190

main23741-17051i1HDFTE..HDB5#¥1,190200102-200408

main23741-56010i3B..BB4#¥450199301-199505

main23741-58010i15BF..BB5#¥260199505-199907

main90034-68024iN04C..XZB4#,5#¥430201108-201501

main90034-68032iN04C..XZB51..SULNG¥360200408-200708

sub21576-E0020¥1,620

mainS799041240iN04C..XZB4#,5#201501

23742CLAMP, INJECTION PIPE, NO.2

main23741-56020i3B..BB4#¥310199301-199605

sub23741-56021¥460

main23741-56021i3B..BB4#¥460199605-199907

main23741-58020i15BFTE..BB58¥1,090200105-200408

main23742-17010i1HDT,1HZ..HDB5#,HZB4#,5#¥340199301-200408

main23742-17020i1HDT,1HZ..HDB5#,HZB4#,5#¥700199301-200408

main23742-17020i1HDFT..HDB5#¥700199505-199907

main23742-17030i1HDFTE..HDB5#¥1,480199907-200408

main23742-27010i15BFTE..BB58¥1,080199907-200105

main23742-58010i15BF..BB5#¥350199512-199907

main23742-58020i15BFTE..BB58¥1,070199907-200105

main23742-58030i15BFTE..BB58¥1,070200105-200408

main23742-66020iN04C..XZB50..WOC;N04C..XZB51..IV5;N04C..XZB40..5F..IV5¥500200708-201108

main90034-68026iN04C..XZB4#,5#¥440201108-201305

mainS2304E0020iN04C..XZB4#,5#201108-201501

mainS2304E0020iN04C..XZB4#,5#201501-201610

mainS799041021iN04C..XZB4#,5#201610

9011606158

main90116-06158¥170

9011908735

main90119-08735¥120

9017906026

main90179-06026¥70

9017908022

main90179-08022¥220

9162161020

main91621-61020¥180

9163160628

main91631-60628¥110

9165160818

main91651-60818¥170

9165161025

main91651-61025¥100

9166160628

main91661-60628¥170

20 parts on this diagram · 12 diagrams in section
