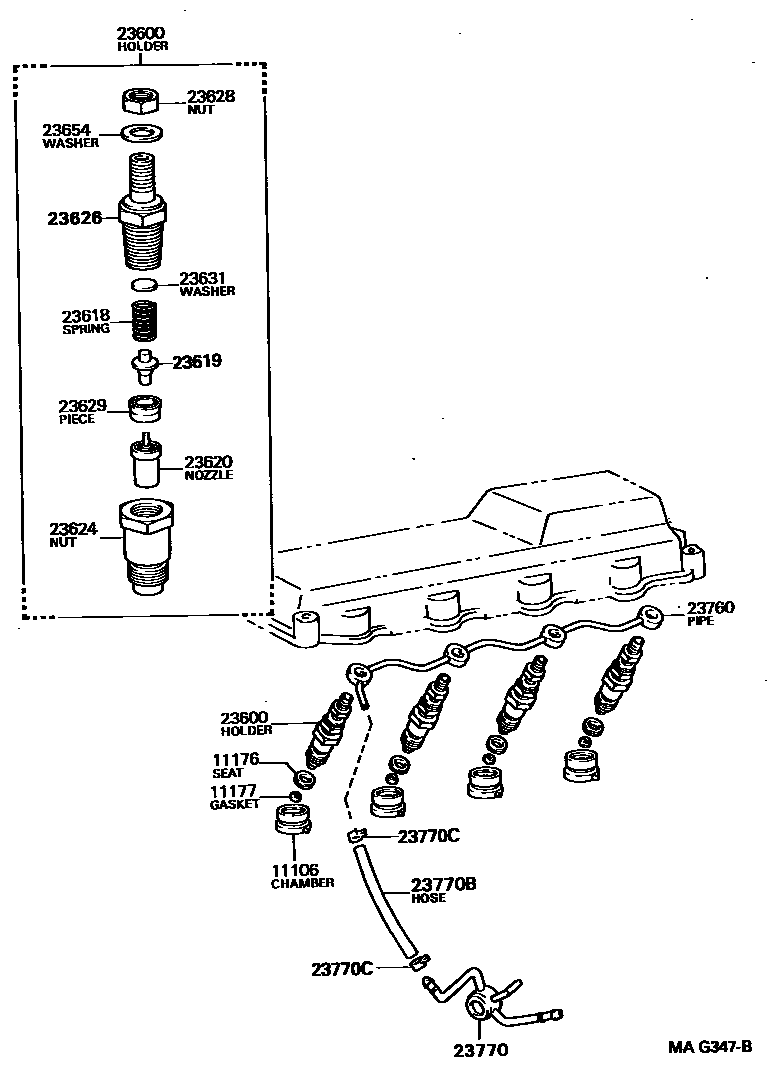

INJECTION NOZZLE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

11106CHAMBER SUB-ASSY, COMBUSTION

main11106-17020i1HZ..HZB4#,5#199301-199401

sub11106-17021

main11106-17021i1HZ..HZB4#,5#199401-199907

main11106-17040i1HZ..HZB4#,5#199907-200408

main11106-58020i3B..BB4#199301-199907

11176SEAT, INJECTION NOZZLE

main11176-17020i1HD#..HDB5#199301-200006

sub11176-27010

main11176-27010i15BFTE..BB58200005-200408

sub11176-27011

main11176-56010i3B..BB4#199301-199907

main11176-64010i1HZ..HZB4#,5#199301-200408

11177GASKET, INJECTION NOZZLE SEAT

main11177-54020i1HZ..HZB4#,5#199910-200408

main11177-56010i3B..BB4#199301-199907

main11177-64010i1HZ..HZB4#,5#199301-199910

main23682-78030iN04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU200408-201108

sub23682-E0050

main23682-E0050iN04C..XZB4#,5#201108-201501

23600HOLDER & NOZZLE SET, NOZZLE

main23600-17031i1HDT..HDB5#199301-199307

sub23600-17032

main23600-17032i1HDT..HDB5#199307-199505

main23600-19055i1HZ..HZB4#,5#199505-199907

main23600-19065i1HDFT..HDB5#199505-199507

sub23600-19066

main23600-19066i1HDFT..HDB5#199507-199907

sub23600-19067

main23600-19085i1HDFTE..HDB5#199910-200408

sub23600-19086

main23600-19105i1HZ..HZB4#,5#199907-200408

main23600-19115i1HDFTE..HDB5#199907-199909

sub23600-19116

main23600-56020i3B..BB4#199301-199505

main23600-58080i3B..BB4#199505-199907

main23600-59206i15BF..BB5#199512-199907

sub23600-59207

main23600-59305i15BFTE..BB58199907-200408

sub23600-59306

main23600-69055i1HZ..HZB4#,5#199301-199505

23618SPRING, NOZZLE HOLDER PRESSURE

main23618-17060i15BFTE..BB58199907-200408

main23618-17070i1HDFT..HDB5#199505-199907

main23618-17070i15BF..BB5#199512-199907

main23618-17080i1HDFTE..HDB5#199907-200408

main23618-17090i1HZ..HZB4#,5#199907-200408

main23618-46010i3B..BB4#199505-199907

main23618-56010i3B..BB4#199301-199505

main23618-58030i1HDFT..HDB5#199505-199907

main23618-58030i1HDT..HDB5#199301-199505

main23618-64010i1HZ..HZB4#,5#199301-199505

main23618-64080i1HZ..HZB4#,5#199505-199907

23619PIN, NOZZLE HOLDER PRESSURE

main23619-17010i1HDT..HDB5#199301-199505

main23619-17070i15BFTE..BB58199505-200408

main23619-46010i3B..BB4#199505-199907

main23619-64010i1HZ..HZB4#,5#199301-200408

23620NOZZLE ASSY

main23602-17080i1HDFTE..HDB5#199907-200408

main23602-58100i15BFTE..BB58199907-200408

main23620-17010i1HDT..HDB5#199301-199505

main23620-17070i1HDFT..HDB5#199505-199907

main23620-19105i1HZ..HZB4#,5#199505-199907

main23620-19115i1HZ..HZB4#,5#199907-200408

main23620-56020i3B..BB4#199301-199505

main23620-58060i15BF..BB5#199512-199907

main23620-58080i3B..BB4#199505-199907

main23620-69045i1HZ..HZB4#,5#199301-199505

23624NUT, NOZZLE RETAINING

main23624-17070i15BF..BB5#199505-200408

main23624-54020i3B..BB4#199301-199505

sub23624-58080

main23624-58010i1HDT..HDB5#199301-199505

main23624-58080i3B..BB4#199505-199907

main23624-58100i15BFTE..BB58199907-200408

main23624-64040i1HZ..HZB4#,5#199301-199505

sub23624-64041

main23624-64041i1HZ..HZB4#,5#199907-200408

main23624-64080i1HZ..HZB4#,5#199505-199907

23626BODY SUB-ASSY, NOZZLE

main23626-17070i1HDFT..HDB5#199505-199907

main23626-17080i1HDFTE..HDB5#199910-200408

main23626-17110i1HZ..HZB4#,5#199907-200408

main23626-17120i1HDFTE..HDB5#199907-199909

main23626-56020i3B..BB4#199301-199505

main23626-58060i15BF..BB5#199512-199907

main23626-58080i3B..BB4#199505-199907

main23626-58100i15BFTE..BB58199907-200408

23628NUT(FOR RING PACKING SETTING)

main23628-46010i3B..BB4#199301-199907

main23628-64010i1HZ..HZB4#,5#199301-200408

23629PIECE, DISTANCE(FOR NOZZLE)

main23629-46010i3B..BB4#199301-199907

main23629-54080i1HZ..HZB4#,5#199505-200408

main23629-64010i1HZ..HZB4#,5#199301-199505

23631WASHER(FOR NOZZLE HOLDER PRESSURE SPRING)

main23631-17010i1HDFTE..HDB5#199301-200408

main23631-17011i1HDT..HDB5#199301-199505

main23631-17012i1HDT..HDB5#199301-199505

main23631-17013i1HDT..HDB5#199301-199505

main23631-17014i1HDT..HDB5#199301-199505

main23631-17015i1HDT..HDB5#199301-199505

main23631-17016i1HDT..HDB5#199301-199505

main23631-17017i1HDT..HDB5#199301-199505

main23631-17018i1HDT..HDB5#199301-199505

main23631-17019i1HDT..HDB5#199301-199505

main23631-17029i1HDFTE..HDB5#199505-200408

main23631-17030i1HDFTE..HDB5#199505-200408

main23631-17031i1HDFTE..HDB5#199505-200408

main23631-17032i1HDFT..HDB5#199505-200408

main23631-17033i1HDFTE..HDB5#199505-200408

main23631-17034i15BFTE..BB58199505-200408

main23631-17035i1HDFT..HDB5#199505-200408

main23631-17036i15BFTE..BB58199505-200408

main23631-17037i15BF..BB5#199505-200408

main23631-17038i1HDFTE..HDB5#199505-200408

main23631-17039i1HDFTE..HDB5#199505-200408

main23631-17040i15BFTE..BB58199505-200408

main23631-17041i1HDFTE..HDB5#199505-200408

main23631-17042i15BFTE..BB58199505-200408

main23631-17043i15BFTE..BB58199505-200408

main23631-17044i1HDFTE..HDB5#199505-200408

main23631-17045i15BF..BB5#199505-200408

main23631-17046i1HDFTE..HDB5#199505-200408

main23631-17047i15BFTE..BB58199505-200408

main23631-17048i1HDFTE..HDB5#199505-200408

main23631-17049i1HDFTE..HDB5#199505-200408

main23631-17050i1HDFT..HDB5#199505-200408

main23631-17051i1HDFT..HDB5#199505-200408

main23631-17052i15BFTE..BB58199505-200408

main23631-17053i15BF..BB5#199505-200408

main23631-17054i1HDFTE..HDB5#199505-200408

main23631-17055i1HDFT..HDB5#199505-200408

main23631-17056i15BFTE..BB58199505-200408

main23631-17057i15BFTE..BB58199505-200408

main23631-17058i15BFTE..BB58199505-200408

main23631-17059i15BF..BB5#199505-200408

main23631-17060i1HDFTE..HDB5#199505-200408

main23631-17061i15BFTE..BB58199505-200408

main23631-17062i1HDFTE..HDB5#199505-200408

main23631-17063i1HDFTE..HDB5#199505-200408

main23631-17064i1HDFTE..HDB5#199505-200408

main23631-17065i1HDFT..HDB5#199505-200408

main23631-17066i1HDFTE..HDB5#199505-200408

main23631-17067i15BF..BB5#199505-200408

main23631-17068i15BF..BB5#199505-200408

main23631-17069i15BF..BB5#199505-200408

main23631-17079i15BFTE..BB58199505-200408

main23631-46010i3B..BB4#199301-199907

main23631-58010i1HDT..HDB5#199301-199505

main23631-58011i1HDT..HDB5#199301-199505

main23631-58012i1HDT..HDB5#199301-199505

main23631-58013i1HDT..HDB5#199301-199505

main23631-58014i1HDT..HDB5#199301-199505

main23631-58015i1HDT..HDB5#199301-199505

main23631-58016i1HDT..HDB5#199301-199505

main23631-58017i1HDT..HDB5#199301-199505

main23631-58018i1HDT..HDB5#199301-199505

main23631-58019i1HDT..HDB5#199301-199505

main23631-64010i1HZ..HZB4#,5#199301-200408

main23631-64011i1HZ..HZB4#,5#199301-200408

main23631-64012i1HZ..HZB4#,5#199301-200408

main23631-64013i1HZ..HZB4#,5#199301-200408

main23631-64014i1HZ..HZB4#,5#199301-200408

main23631-64015i1HZ..HZB4#,5#199301-200408

main23631-64016i1HZ..HZB4#,5#199301-200408

main23631-64017i1HZ..HZB4#,5#199301-200408

main23631-64018i1HZ..HZB4#,5#199301-200408

main23631-64019i1HZ..HZB4#,5#199301-200408

main23632-17010i1HDT..HDB5#199301-199505

main23632-17011i1HDT..HDB5#199301-199505

main23632-17012i1HDT..HDB5#199301-199505

main23632-17013i1HDT..HDB5#199301-199505

main23632-17014i1HDT..HDB5#199301-199505

main23632-17015i1HDT..HDB5#199301-199505

main23632-17016i1HDT..HDB5#199301-199505

main23632-17017i1HDT..HDB5#199301-199505

main23632-17018i1HDT..HDB5#199301-199505

main23632-17019i1HDT..HDB5#199301-199505

main23632-17020i1HDFTE..HDB5#199505-200408

main23632-17021i1HDFTE..HDB5#199505-200408

main23632-17022i1HDFT..HDB5#199505-200408

main23632-17023i15BFTE..BB58199505-200408

main23632-17024i15BFTE..BB58199505-200408

main23632-17025i1HDFTE..HDB5#199505-200408

main23632-17026i15BF..BB5#199505-200408

main23632-17027i15BFTE..BB58199505-200408

main23632-17028i15BFTE..BB58199505-200408

main23632-17029i1HDFTE..HDB5#199505-200408

main23632-17030i15BFTE..BB58199505-200408

main23632-17031i1HDFTE..HDB5#199505-200408

main23632-17032i1HDFTE..HDB5#199505-200408

main23632-17033i15BFTE..BB58199505-200408

main23632-17037i15BFTE..BB58199907-200408

main23632-46010i3B..BB4#199301-199907

main23632-58010i1HDT..HDB5#199301-199505

main23632-58011i1HDT..HDB5#199301-199505

main23632-58012i1HDT..HDB5#199301-199505

main23632-58013i1HDT..HDB5#199301-199505

main23632-58014i1HDT..HDB5#199301-199505

main23632-58015i1HDT..HDB5#199301-199505

main23632-58016i1HDT..HDB5#199301-199505

main23632-64010i1HZ..HZB4#,5#199301-200408

main23632-64011i1HZ..HZB4#,5#199301-200408

main23632-64012i1HZ..HZB4#,5#199301-200408

main23632-64013i1HZ..HZB4#,5#199301-200408

main23632-64014i1HZ..HZB4#,5#199301-200408

main23632-64015i1HZ..HZB4#,5#199301-200408

main23632-64016i1HZ..HZB4#,5#199301-200408

main23632-64017i1HZ..HZB4#,5#199301-200408

main23632-64018i1HZ..HZB4#,5#199301-200408

main23632-64019i1HZ..HZB4#,5#199301-200408

main23633-17010i1HDT..HDB5#199301-199505

main23633-17011i1HDT..HDB5#199301-199505

main23633-17012i1HDT..HDB5#199301-199505

main23633-17013i1HDT..HDB5#199301-199505

main23633-17014i1HDT..HDB5#199301-199505

main23633-17015i1HDT..HDB5#199301-199505

main23633-17016i1HDT..HDB5#199301-199505

main23633-17017i1HDT..HDB5#199301-199505

main23633-17018i1HDT..HDB5#199301-199505

main23633-17019i1HDT..HDB5#199301-199505

main23633-46010i3B..BB4#199301-199907

main23633-58012i1HDT..HDB5#199301-199505

main23633-58013i1HDT..HDB5#199301-199505

main23633-58014i1HDT..HDB5#199301-199505

main23633-58015i1HDT..HDB5#199301-199505

main23633-58016i1HDT..HDB5#199301-199505

main23633-58017i1HDT..HDB5#199301-199505

main23633-58018i1HDT..HDB5#199301-199505

main23633-58019i1HDT..HDB5#199301-199505

main23633-64010i1HZ..HZB4#,5#199301-200408

main23633-64011i1HZ..HZB4#,5#199301-200408

main23633-64012i1HZ..HZB4#,5#199301-200408

main23633-64013i1HZ..HZB4#,5#199301-200408

main23633-64014i1HZ..HZB4#,5#199301-200408

main23633-64015i1HZ..HZB4#,5#199301-200408

main23633-64016i1HZ..HZB4#,5#199301-200408

main23633-64017i1HZ..HZB4#,5#199301-200408

main23633-64018i1HZ..HZB4#,5#199301-200408

main23633-64019i1HZ..HZB4#,5#199301-200408

main23634-17010i1HDT..HDB5#199301-199505

main23634-17011i1HDT..HDB5#199301-199505

main23634-17012i1HDT..HDB5#199301-199505

main23634-17013i1HDT..HDB5#199301-199505

main23634-46010i3B..BB4#199301-199907

main23634-58010i1HDT..HDB5#199301-199505

main23634-58011i1HDT..HDB5#199301-199505

main23634-58012i1HDT..HDB5#199301-199505

main23634-58013i1HDT..HDB5#199301-199505

main23634-64010i1HZ..HZB4#,5#199301-200408

main23634-64011i1HZ..HZB4#,5#199301-200408

main23634-64012i1HZ..HZB4#,5#199301-200408

main23634-64013i1HZ..HZB4#,5#199301-200408

main23634-64014i1HZ..HZB4#,5#199301-200408

main23634-64015i1HZ..HZB4#,5#199301-200408

main23634-64016i1HZ..HZB4#,5#199301-200408

main23634-64017i1HZ..HZB4#,5#199301-200408

main23634-64018i1HZ..HZB4#,5#199301-200408

main23634-64019i1HZ..HZB4#,5#199301-200408

main23635-46010i3B..BB4#199301-199907

main23635-64010i1HZ..HZB4#,5#199301-200408

main23635-64011i1HZ..HZB4#,5#199301-200408

main23635-64012i1HZ..HZB4#,5#199301-200408

main23636-46010i3B..BB4#199301-199907

main23637-46010i3B..BB4#199301-199907

main23638-46010i3B..BB4#199301-199907

main23639-46010i3B..BB4#199301-199907

main23641-46010i3B..BB4#199301-199907

main23642-46010i3B..BB4#199301-199907

main23643-46010i3B..BB4#199301-199907

main23644-46010i3B..BB4#199301-199907

main23645-46010i3B..BB4#199301-199907

main23646-46010i3B..BB4#199301-199907

main23647-46010i3B..BB4#199301-199907

main23648-46010i3B..BB4#199301-199907

main23649-46010i3B..BB4#199301-199907

main23651-46010i3B..BB4#199301-199907

main23652-46010i3B..BB4#199301-199907

23654WASHER(FOR RING PACKING)

main23654-46010i3B..BB4#199301-199907

main23654-64010i1HZ..HZB4#,5#199301-200408

23760PIPE ASSY, NOZZLE LEAKAGE

main23708-78010iN04C..XZB50..WOC;N04C..XZB40..5F..IV5;N04C..XZB51..6FC..IV5200408-201107

subS2308-12630

main23760-56040i3B..BB4#199301-199907

main23761-17010i1HZ..HZB4#,5#199301-200408

main23761-17020i1HDT..HDB5#199301-199505

main23761-17030i1HDFT..HDB5#199505-199905

sub23761-17031

main23761-17031i1HDFT..HDB5#199905-200408

main23761-58010i15BF..BB5#199512-199905

sub23761-58011

main23761-58011i15BF..BB58199905-200408

mainS230812630iN04C..XZB51..SULNG201107-201501

23770PIPE ASSY, NOZZLE LEAKAGE, NO.2

main23762-17010i1HZ..HZB4#,5#199301-199505

sub23762-17011

main23762-17021i1HDT..HDB5#199301-199501

sub23762-17050

main23762-17050i1HDT..HDB5#199501-199604

sub23762-17051

main23762-17051i1H#..HDB5#,HZB4#,5#199604-200408

main23762-58010i15BF..BB5#199512-199907

main23762-58030i15BFTE..BB58199907-200408

main23770-58050i3B..BB4#199301-199907

23770BHOSE, FUEL

main23271-58090i15BFTE..BB58199907-200408

main95333-04010i1HDFTE..HDB5#199505-200408

main95333-04020i3B..BB4#199505-199907

main95333-04020i1HDT,1HZ..HDB5#,HZB4#,5#199301-200408

main95333-04030i15BF..BB5#199512-199907

23770CCLAMP OR CLIP(FOR FUEL HOSE SET)

main90467-10049i1HDFT..HDB5#199301-199907

sub90467-10149

main90467-10149i1HZ..HZB4#,5#199907-200408

main96132-30400i3B..BB4#199301-199302

sub96132-51000

main96132-41000i15BFTE..BB58199302-200408

17 parts on this diagram · 10 diagrams in section
