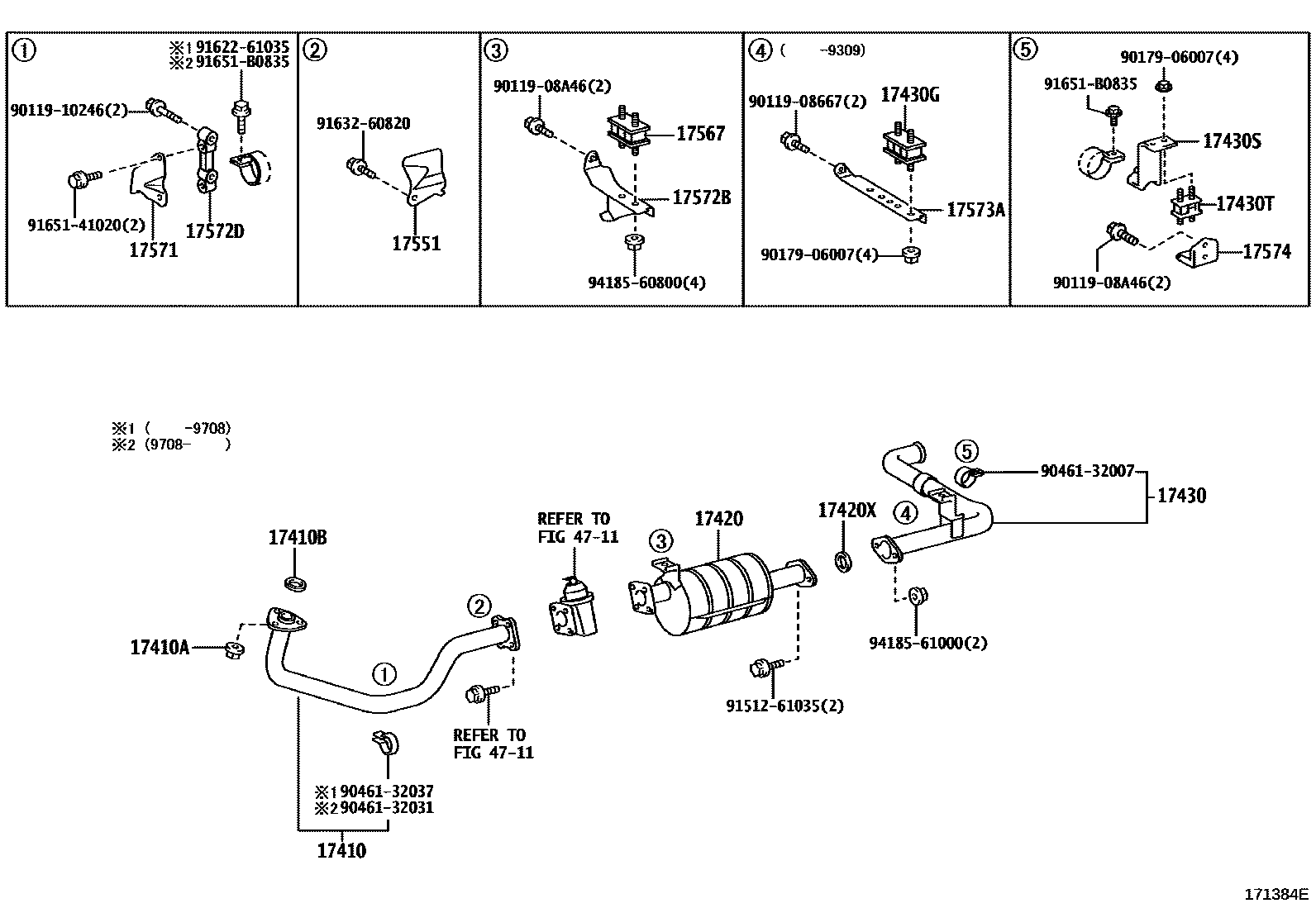

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

17410PIPE ASSY, EXHAUST, FRONT

main17401-17100i1HDFTE..HDB5#199301-200408

main17401-17110i1HZ..HZB4#,5#199301-200408

sub17401-17111

main17401-58270i3B..BB4#199301-199708

sub17401-58271

sub17571-58301

sub91621-60835

main17401-58271i3B..BB4#199708-199907

main17401-E0S60iN04C..XZB4#,5#201108-201501

sub17401-E0S61

main17410-48020i1BZFPE..BZB40,50200203-200707

sub17410-48021

main17410-48021i1BZFPE..BZB40,50..STD200708-201501

main17410-58220i15BF..BB5#199512-199907

main17410-58280i15BFTE..BB58199907-200408

main17410-78010iN04C..XZB51..SULNG200408-201108

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070iN04C..XZB51..SULNG199301-201501

17410BGASKET, EXHAUST PIPE

main17451-78110iN04C..XZB4#,5#201108-201501

main17451-78110iN04C..XZB4#,5#201501

main17451-E0110iN04C..XZB4#,5#201501

main17451-E0110iN04C..XZB4#,5#201108-201501

main90917-06059i15BF,3B,1HZ..BB4#,5#,HZB4#,5#199301-200408

main90917-06067i1BZFPE..BZB40,50..LX200203-201501

main90917-06068i1HD#..HDB5#199301-200408

17420PIPE ASSY, EXHAUST, CENTER

main17403-17120i1HZ..HZB4#199301-199309

main17403-17121i1HZ..HZB4#199309-199907

main17403-17150i1HD#,1HZ..HDB5#,HZB5#199301-200307

main17403-17151i1H#..HDB5#,HZB5#200307-200408

main17403-58400i3B..BB4#199301-199309

main17403-58401i3B..BB4#199309-199907

main17404-78010iN04C..XZB4#,5#200408-200504

sub17404-78011

main17404-78011iN04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD200505-200608

main17404-78012iN04C..XZB50..WOC;N04C..XZB40..5F..IV5;N04C..XZB51..6FC..IV5200608-201108

main17404-78040iN04C..XZB4#,5#201108-201501

main17420-17020i1HZ..HZB4#199907-200408

main17420-48010i1BZFPE..BZB50200203-200708

main17420-58780i15BF..BB5#199512-199907

sub17420-58781

main17420-5C070i15BFTE..BB58199907-200408

17420XGASKET, EXHAUST PIPE, CENTER

main17451-74040iN04C..XZB4#,5#201108-201501

main90917-06042i3B..BB4#199301-199309

main90917-06045i1HZ..HZB4#200108-200408

main90917-06054i1HD#,1HZ..HDB5#,HZB5#199301-200708

main90917-06059i15BFTE..BB58199907-200408

main90917-06062i1HZ..HZB4#199309-200108

main90917-06076i15BF..BB5#199512-199907

17430PIPE ASSY, EXHAUST, TAIL

main17405-17140i1HD#,1HZ..HDB5#,HZB5#199301-200408

main17405-17200i1HZ..HZB4#199301-199309

main17405-17201i1HZ..HZB4#199309-199907

main17405-58520i15BF..BB5#199512-199907

main17405-58560i3B..BB4#199301-199309

main17405-58561i3B..BB4#199309-199907

main17405-58630i15BFTE..BB58199907-200408

main17430-17010i1HZ..HZB4#199907-200408

main17430-48040i1BZFPE..BZB40200203-200707

sub17430-48041

main17430-48041i1BZFPE..BZB40,50..LX200708-201501

main17430-58840i1BZFPE..BZB50200203-200708

main17430-78020iN04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD200408-200602

sub17430-78021

main17430-78021iN04C..XZB4#,5#..4FC,6F200603-201108

main17430-78060iN04C..XZB4#,5#201108-201501

17430GCUSHION, EXHAUST TAILPIPE(FOR CENTER)

main17567-17010i3B..BB4#199301-199309

main17567-58010iN04C..XZB51..SULNG199301-201501

17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)

main17561-17010i1HD#,1HZ..HDB5#,HZB5#199301-200408

main17561-58020i3B..BB4#199301-199907

main17561-68010i1HZ..HZB4#199301-199907

17430TCUSHION, EXHAUST TAILPIPE (FOR REAR)

main17567-17010i3B,1HD#,1HZ..BB4#,HDB5#,HZB4#,5#199301-200408

main17567-17020i1BZFPE..BZB40,50200408-201501

17551INSULATOR, EXHAUST PIPE HEAT, NO.1

main17551-17010i3B,1H#..BB4#,HDB5#,HZB4#,5#199301-199309

sub17551-17011

main17551-17011i1BZFPE..BZB40,50..STD199309-201501

main17551-78050iN04C..XZB50..WOC;N04C..XZB40..5F..IV5;N04C..XZB51..6FC..IV5200408-201501

17567CUSHION, EXHAUST PIPE SUPPORT

main17567-35010i15BF..BB5#199512-200408

main17567-58010i3B,1HZ..BB4#,HZB4#199301-201501

main17567-75050iN04C..XZB51..SULNG..6FC200408-201501

17571BRACKET, EXHAUST PIPE SUPPORT, NO.1

main17571-17060i1HD#..HDB5#..5F199301-199705

sub17571-17100

main17571-17070i1HD#..HDB5#..4FC199301-200408

main17571-17080i1HZ..HZB4#,5#..5F199301-200408

main17571-17090i1HZ..HZB4#,5#..4FC199301-200408

main17571-17100i1HDFT..HDB5#..6F199705-200408

main17571-58300i3B..BB4#199301-199708

sub17571-58301

sub90461-32031

sub91621-60835

main17571-58301i1BZFPE..BZB40,50..LX199708-201501

main17571-58310i15BF..BB5#199512-199907

main17571-58410i15BFTE..BB58199907-200408

main17571-78110iN04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)200408-201108

main17571-E0480iN04C..XZB4#,5#201108-201501

17572BRACKET, EXHAUST PIPE NO.1 SUPPORT

main17572-58120i15BFTE..BB58199907-200408

17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2

main17572-17030i3B,1HZ..BB4#,HZB4#199301-200408

main17572-58120i15BF..BB5#199512-199907

main17572-75220i1BZFPE..BZB40,50..STD200203-201501

main17572-75220i1BZFPE..BZB40,50201501

main17572-75260i1BZFPE..BZB40,50..STD200203-201501

main17572-75260i1BZFPE..BZB40,50201501

main17572-78270iN04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)200408-201108

sub17572-78271

main17572-78271iN04C..XZB4#,5#201108-201501

17572DBRACKET, EXHAUST PIPE SUPPORT, NO.1

main17579-73010i1BZFPE,1HZ..BZB40,50,HZB4#,5#..5F199301-201501

17573ABRACKET, EXHAUST PIPE SUPPORT, NO.3

main17572-58090i3B,1HZ..BB4#,HZB4#199301-200408

main17573-17010i1HD#,1HZ..HDB5#,HZB5#199301-200708

main17573-78290iN04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU200408-201501

17574BRACKET, EXHAUST PIPE SUPPORT, NO.4

main17574-17010i3B,1HD#,1HZ..BB4#,HDB5#,HZB4#,5#199301-199907

main17574-58170i1BZFPE..BZB40,50199907-201501

4711

9011908667

main90119-08667

9011908A46

main90119-08A46

9011910246

main90119-10246

9017906007

main90179-06007

9046132007

main90461-32007

9046132031

main90461-32031

9046132037

main90461-32037

9151261035

main91512-61035

9162261035

main91622-61035

9163260820

main91632-60820

9165141020

main91651-41020

91651B0835

main91651-B0835

9418560800

main94185-60800

9418561000

main94185-61000

32 parts on this diagram · 9 diagrams in section
