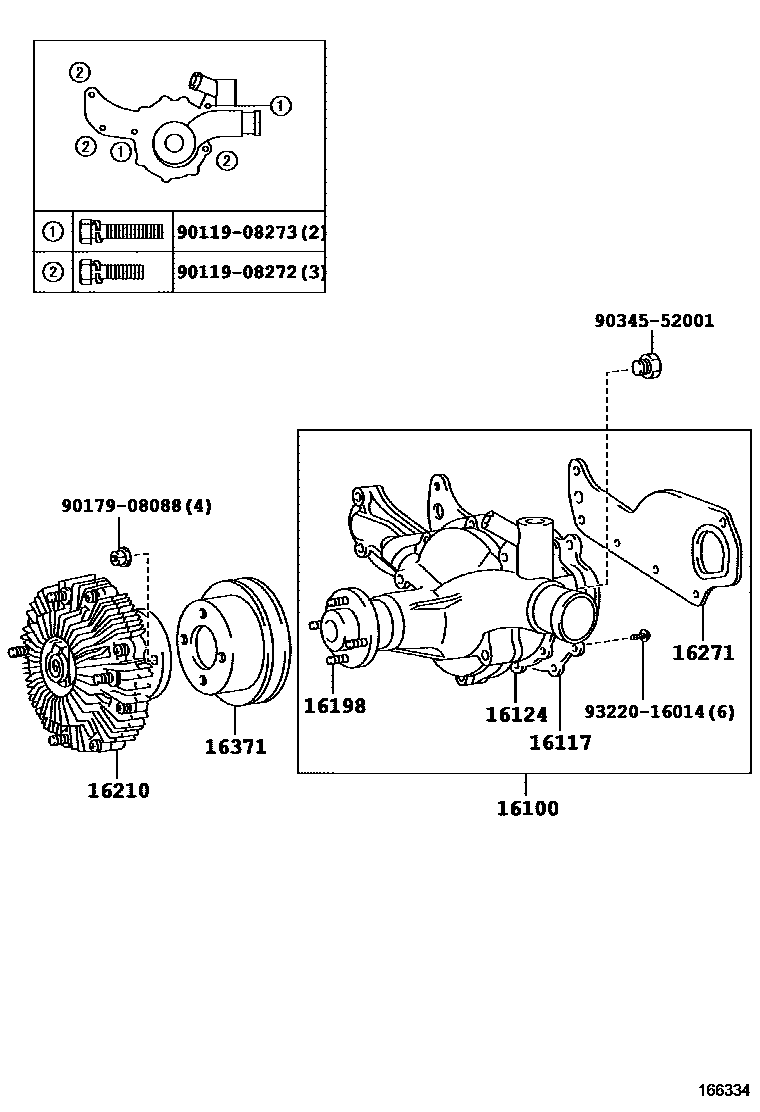

WATER PUMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

16100PUMP ASSY, ENGINE WATER

main16100-19235i1HD#,1HZ..HDB5#,HZB4#,5#199301-199907

main16100-19325i1H#..HDB5#,HZB4#,5#200108-200408

main16100-59185i3B..BB4#199301-199505

main16100-59186i15BF,3B..BB4#,5#199505-199907

main16100-59187i1BZFPE..BZB40,50201501

main16100-59295i15BFTE..BB58199907-200408

main16100-78080iN04C..XZB4#,5#200408-200511

main16100-78110iN04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)200511-200708

main16100-78111iN04C..XZB4#,5#200903-200907

main16100-78112iN04C..XZB50..WOC;N04C..XZB51..IV5;N04C..XZB40..5F..IV5200907-200908

main16100-78170iN04C..XZB51..SULNG201011-201108

sub16100-E0B60

main16100-E0780iN04C..XZB4#,5#201501-201611

sub16100-E0B60

16117PLATE, WATER PUMP

main16117-58010i1BZFPE..BZB40,50..LX200408-201501

main16117-58090i15BFTE..BB58199907-200408

16124GASKET, WATER PUMP COVER

main16124-58010i1BZFPE..BZB40,50200203-200408

main16124-58090i15BFTE..BB58199907-200408

16198BOLT, STUD(FOR WATER PUMP PULLEY SEAT)

main16198-41170×4i1BZFPE..BZB40,50..STD200408-201108

16210COUPLING ASSY, FLUID

main16210-17030i1HDT,1HZ..HDB5#,HZB4#,5#199301-199907

main16210-17060i1HDFT..HDB5#199505-199907

main16210-17080i1HZ..HZB40,41,50;1H#..HDB51,HZB46,56..08S,09S,24S199907-200408

main16210-58041i15BF,3B..BB4#,5#199301-199907

main16210-58070i15BFTE..BB58199907-200408

main16250-78190iN04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU200408-201106

mainS162501850iN04C..XZB4#,5#201501

16271GASKET, WATER PUMP

main16271-17010i1HD#,1HZ..HDB5#,HZB4#,5#199301-199907

main16271-56030i3B..BB4#199301-199304

main16271-56031i15BF,3B..BB4#,5#199304-199905

main16271-58010i1BZFPE..BZB40,50..STD200408-201108

16371PULLEY, FAN

main16107-E0040iN04C..XZB4#,5#201501

main16308-78030iN04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU200408-201106

main16371-17010i1HD#,1HZ..HDB5#,HZB4#,5#199301-199907

main16371-58030i3B..BB40..STD..WOC199301-199907

main16371-58040i3B..BB40..STD..WOC199301-199907

main16371-58041i15BFTE,1BZFPE..BB58,BZB40,50200307-200408

mainS161051140iN04C..XZB51..SULNG201106-201108

9011908272

main90119-08272

9011908273

main90119-08273

9017908088

main90179-08088

9034552001

main90345-52001

9322016014

main93220-16014

12 parts on this diagram · 7 diagrams in section
