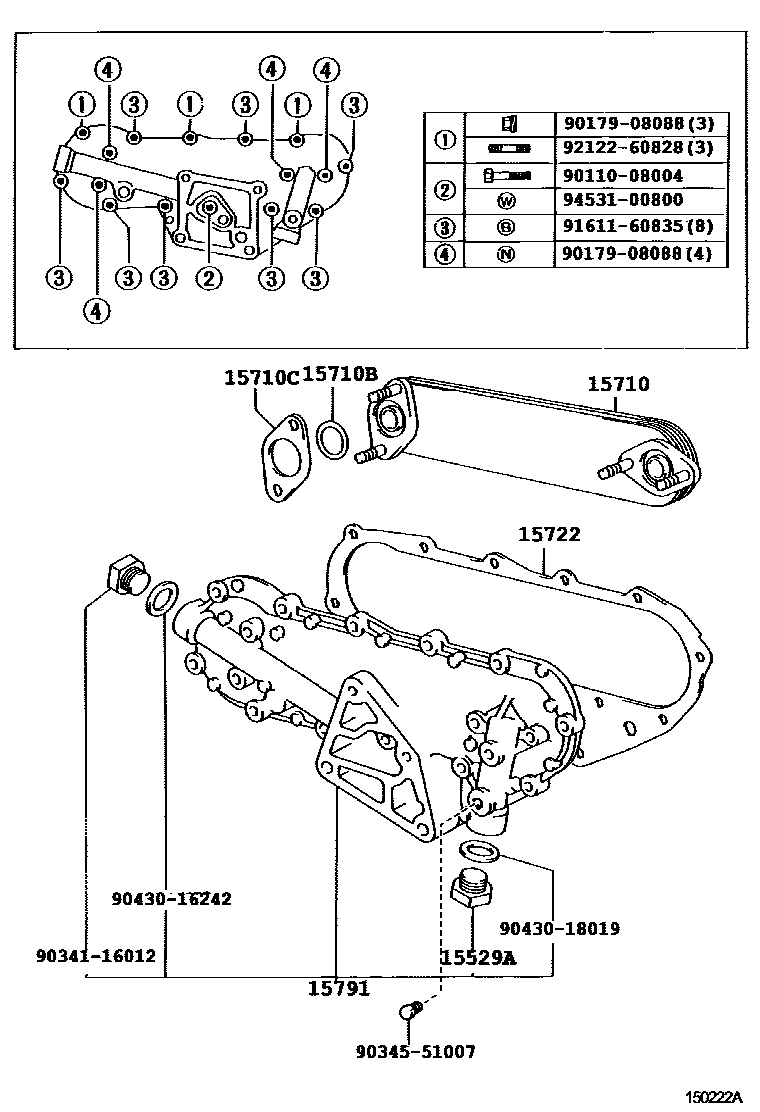

ENGINE OIL COOLER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

15529APLUG

main90341-18006i1BZFPE..BZB40,50..STD199301-201501

15710COOLER ASSY, OIL

main15710-17010i1HZ..HZB4#,5#199301-200103

sub15710-17011

main15710-17011i1HZ..HZB4#,5#200103-200408

main15710-17020i1HDFTE..HDB5#199907-200104

sub15710-17021

main15710-17021i1HDFTE..HDB5#200104-200408

main15710-56100i3B..BB4#199301-199505

main15710-58030i1BZFPE..BZB40,50..LX199512-201501

main15710-58040i3B..BB4#199505-199907

sub15710-58030

main15710-58080i15BFTE..BB58199907-200408

main15710-78060iN04C..XZB50..WC..DCR;N04C..XZB40..6FC..IV5;N04C..XZB4#,51,56..DCR..CBU200802-201212

subS1571-22260

main15710-78060iN04C..XZB4#,5#200708-200802

subS1571-22260

main15710-78070iN04C..XZB50,51..HDCR201108-201212

subS1571-22270

main15710-89104iN04C..XZB51..SULNG200408-200708

sub15710-78060

mainS157122260iN04C..XZB4#,5#..DCR201212-201501

sub16491-EV050

mainS157122270iN04C..XZB50,51..HDCR201212-201501

sub16491-EV060

15710BRING, O(FOR OIL COOLER)

main90033-01101iN04C..XZB4#,5#200904-201410

subSZ301-19015

main90301-19005iN04C..XZB4#,5#200408-200904

main90301-20001i3B..BB4#199301-199505

mainSZ30119018iN04C..XZB4#,5#201410-201501

mainSZ30119018iN04C..XZB4#,5#201501

15710CGASKET(FOR OIL COOLER)

main15725-E0020iN04C..XZB4#,5#201410-201501

main15785-58010i15BFTE,1BZFPE..BB58,BZB40,50199505-201501

main90923-05018i3B..BB4#199301-199505

15722GASKET, OIL COOLER

main15725-56020i15BF,3B..BB4#,5#199301-201501

15791CASE, OIL COOLER

main15701-56031i3B..BB4#199301-199412

sub15701-58050

main15701-58050i15BF,3B..BB4#,5#199412-201501

9011008004

main90110-08004

9017908088

main90179-08088

9034116012

main90341-16012

9034551007

main90345-51007

9043016242

main90430-16242

9043018019

main90430-18019

9161160835

main91611-60835

9212260828

main92122-60828

9453100800

main94531-00800

15 parts on this diagram · 8 diagrams in section
