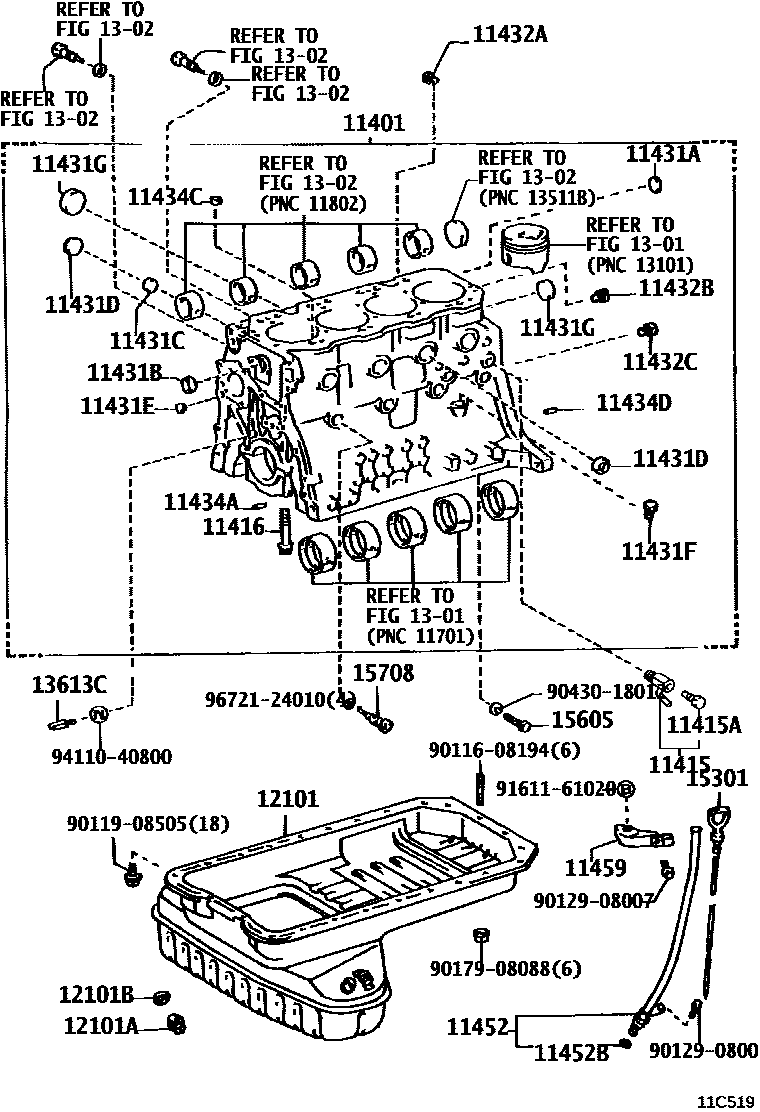

CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1

11401BLOCK SUB-ASSY, CYLINDER

main11401-19617i1HDT..HDB5#199301-199410

sub11401-19618

sub91622-G1014

main11401-19636i1HZ..HZB4#,5#199301-199411

sub91622-G1014

main11401-19637i1HZ..HZB4#,5#199411-199705

main11401-19638i1HZ..HZB4#,5#199705-199801

main11401-19639i1HZ..HZB4#,5#199801-199907

sub11401-80043

main11401-19795i1HDT..HDB5#199410-199411

sub91622-G1014

main11401-19796i1HDT..HDB5#199411-199505

sub11401-19797

main11401-19895i1HDFT..HDB5#199505-199705

main11401-19896i1HDFT..HDB5#199705-199801

sub15407-17020

sub91511-60614

sub96721-24014

main11401-19897i1HDFT..HDB5#199801-199907

main11401-49735i1BZFPE..BZB40,50..LX200408-201501

sub11401-49736

main11401-59416i3B..BB4#199307-199502

sub11401-59417

main11401-59535i3B..BB4#199301-199307

sub11401-59415

main11401-59536i3B..BB4#199502-199505

main11401-59537i3B..BB4#199505-199907

sub11401-59417

main11401-59575i15BF..BB5#199512-199907

main11401-59725i15BFTE..BB58199907-200408

sub11401-59726

sub13511-58031

main11401-78250iN04C..XZB51..SULNG200408-200512

main11401-80012i1HDFTE..HDB5#200105-200404

main11401-80041i1HZ..HZB4#,5#199907-200408

main11401-80730i1HDFTE..HDB5#199907-200408

main11410-78300iN04C..XZB4#,5#201108-201501

main11410-78320iN04C..XZB4#,5#200704-200708

main11410-78360iN04C..XZB4#,5#200708-200804

main11410-78361iN04C..XZB50..WOC;N04C..XZB51..IV5;N04C..XZB40..5F..IV5200804-200908

sub11410-E0711

main11410-E0E41iN04C..XZB4#,5#201501

sub11410-E0E42

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90345-52003i1HD#,1HZ..HDB5#,HZB4#,5#199301-199705

main90910-09075i1H#..HDB5#,HZB4#,5#199705-199907

sub90910-09129

main90910-09078i15BF..BB5#199512-199907

main90910-09095i1BZFPE..BZB40,50201501

main96431-53828i3B..BB4#199301-199904

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90910-09087i1H#..HDB5#,HZB4#,5#199907-200408

main96432-23814i15BF,3B..BB4#,5#199301-199904

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90105-16068×5i15BFTE..BB58199907-200408

main90105-16069×5i15BFTE..BB58199907-200408

main90119-08182×15i1H#..HDB5#,HZB4#,5#199907-200408

main90910-02082×5i1BZFPE..BZB40,50..LX200408-201501

main90910-02083×5i1BZFPE..BZB40,50200203-200408

main90910-02098×14i1H#..HDB5#,HZB4#,5#199907-200408

main90910-02156×10iN04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)200408-200708

mainS115211410×10iN04C..XZB4#,5#201501

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main90033-31026×3iN04C..XZB51..SULNG..6FC200408-201108

main90331-35002×3i1HD#,1HZ..HDB5#,HZB4#,5#199301-199907

main96411-14500i15BF,3B..BB4#,5#199301-199905

main96411-64500i1BZFPE..BZB40,50..STD200408-201108

mainSN41105016×3iN04C..XZB4#,5#201501

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main90033-31035×3iN04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU200408-201501

main90331-50003i15BFTE,1BZFPE..BB58,BZB40,50199907-200408

main96411-41800×4i1HD#,1HZ..HDB5#,HZB4#,5#199301-199907

main96411-45000i3B..BB4#199301-199411

mainSN41104016×3iN04C..XZB4#,5#201501

11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)

main90033-31034×5iN04C..XZB51..SULNG200408-200512

main96411-42500i1HD#,1HZ..HDB5#,HZB4#,5#199301-199907

main96411-43000×4i3B..BB4#199301-199411

main96411-63000×4i1BZFPE..BZB40,50..STD200408-201108

mainSN41103616×5iN04C..XZB4#,5#201501

11431DPLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)

main90033-31020×5iN04C..XZB50..WOC;N04C..XZB40..5F..IV5;N04C..XZB51..6FC..IV5200408-200908

main96411-43500×5i1HD#..HDB5#199301-199907

main96411-63500×5i15BFTE,1BZFPE..BB58,BZB40,50199907-200408

mainSN41101712×5iN04C..XZB4#,5#201501

11431EPLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)

main90331-14006×3i1BZFPE..BZB40,50201501

main96411-41400×3i3B..BB4#199301-199411

main96411-45000×2i1HD#,1HZ..HDB5#,HZB4#,5#199301-199907

11431FPLUG, TIGHT, NO.6(FOR CYLINDER BLOCK)

main90331-14005iN04C..XZB50..WOC;N04C..XZB40..5F..IV5;N04C..XZB51..6FC..IV5200408-200908

main96411-41200i1BZFPE..BZB40,50200203-200408

mainSZ33114001iN04C..XZB4#,5#201501

11431GPLUG, TIGHT

main96411-45000×4i3B..BB4#199301-199411

main96411-65000i15BF,3B..BB4#,5#199411-199905

11432APLUG, W/HEAD TAPER SCREW, NO.1

main90345-51007×3i15BF,3B..BB4#,5#199301-199907

11432BPLUG, W/HEAD TAPER SCREW, NO.2

main90345-53004i15BF,3B..BB4#,5#199301-199907

11432CPLUG, W/HEAD TAPER SCREW, NO.3

main90345-52001i15BF,3B..BB4#,5#199301-199907

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90032-50050×2iN04C..XZB50..WOC;N04C..XZB40..5F..IV5;N04C..XZB51..6FC..IV5200704-200908

main90250-08015×2iN04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD200408-200704

main90250-08120×2i1HD#,1HZ..HDB5#,HZB4#,5#199301-199907

mainSZ25008008×2iN04C..XZB4#,5#201501

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90032-50049×2iN04C..XZB51..SULNG200704-201108

main90250-08016×2iN04C..XZB51..SULNG200408-200512

main90250-08074×2i1H#..HDB5#,HZB4#,5#199907-200408

main90253-15005×2i3B..BB4#199301-199505

main90253-15008×2i15BFTE,1BZFPE..BB58,BZB40,50199907-200408

mainSZ25008007×2iN04C..XZB4#,5#201501

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06068×2i1H#..HDB5#,HZB4#,5#199907-200408

main90250-08120×4i1BZFPE..BZB40,50..LX200408-201501

11452GUIDE, OIL LEVEL GAGE

main11409-58010i15BF..BB5#199512-199907

main11452-17020i1HDT,1HZ..HDB5#,HZB4#,5#199301-199907

main11452-17030i1HDFT..HDB5#199505-199907

main11452-17050i1HDFTE..HDB5#199907-200408

main11452-17060i1HZ..HZB4#,5#199907-200408

main11452-48040i1BZFPE..BZB40,50..LX200408-201501

main11452-58030i3B..BB4#199301-199907

main11452-58110i15BFTE..BB58199907-200408

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main90033-01058iN04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU200408-201501

main96721-19010i15BFTE..BB58199907-200408

main96721-24010i3B..BB4#199301-199907

mainSZ30110025iN04C..XZB4#,5#201501

11459SUPPORT, OIL LEVEL GAGE GUIDE

main11459-58020i3B..BB4#199301-199907

main11459-58060i15BFTE..BB58199907-200408

12101PAN SUB-ASSY, OIL

main12101-17050i1HD#,1HZ..HDB5#,HZB4#,5#199301-199907

main12101-17210i1H#..HDB5#,HZB4#,5#199907-200408

main12101-58140i3B..BB4#199301-199907

main12101-58180i1BZFPE..BZB40,50..LX200408-201501

main12101-58200i15BF..BB5#199512-199907

main12101-58240i15BFTE..BB58199907-200408

main12101-78130iN04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD200408-200703

main12101-78160iN04C..XZB4#,5#..4FC,6F200703-200708

main12101-E0320iN04C..XZB4#,5#201501

12101APLUG(FOR OIL PAN DRAIN)

main90033-41020iN04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU200408-201501

main90341-12012i1H#..HDB5#,HZB4#,5#199907-200408

main90341-12026i1HD#,1HZ..HDB5#,HZB4#,5#199301-199907

mainSZ34118014iN04C..XZB4#,5#201501

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90034-30046iN04C..XZB51..SULNG200506-200512

main90034-30047iN04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5;N04C..XZB40,51..(26S,29S,39S)..CBU200802-201501

main90202-18002iN04C..XZB4#,5#200408-200506

main90430-12027i1H#..HDB5#,HZB4#,5#199301-199312

main90430-12031i1BZFPE..BZB40,50..STD200408-201108

mainSZ43018009iN04C..XZB4#,5#201501

1301

1302

13613CNOZZLE, OIL

main90915-01015i15BFTE,1BZFPE..BB58,BZB40,50199907-200408

15301GAGE SUB-ASSY, OIL LEVEL

main15301-17020i1HDT,1HZ..HDB5#,HZB4#,5#199301-199907

main15301-17040i1HDFT..HDB5#199505-199907

main15301-17070i1H#..HDB5#,HZB4#,5#199907-200408

main15301-58030i1BZFPE..BZB40,50..LX200408-201501

main15301-58040i15BF..BB55199512-199602

main15301-58060i15BF..BB5#199602-199907

main15301-58100i15BFTE..BB58199907-200408

main15301-78120iN04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD200408-200708

sub15301-78121

main15301-78210iN04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5200708-201108

sub15301-E0330

main15301-E0B90iN04C..XZB4#,5#201108-201501

15605VALVE SUB-ASSY, OIL CHECK

main15602-E0010iN04C..XZB4#,5#201508

main15605-17030×6i1HD#,1HZ..HDB5#,HZB4#,5#199501-199907

main15605-54010×6i1H#..HDB5#,HZB4#,5#199301-199501

main15605-56010i15BF,3B..BB4#,5#199301-199907

main15703-78030iN04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)200408-200708

mainS156021200iN04C..XZB4#,5#..DX,EX,GX,LX,STD201107-201501

15708NOZZLE SUB-ASSY, OIL, NO.1

main11418-78010×4iN04C..XZB51..SULNG200408-200512

main11418-78070×4iN04C..XZB4#,5#201108-201501

main15708-17010×6i1HDT,1HZ..HDB5#,HZB4#,5#199301-199907

main15708-17020×6i1HDFT..HDB5#199505-199907

main15708-56010×4i3B..BB4#199505-199907

main15708-58020×4i3B..BB4#199301-199505

main15708-58040×4i1BZFPE..BZB40,50..STD200408-201108

main15708-58060×4i15BFTE..BB58199907-200408

mainS110BE0010×4iN04C..XZB4#,5#201501

9011608194

main90116-08194

9011908505

main90119-08505

9012908007

main90129-08007

9017908088

main90179-08088

9043018012

main90430-18012

9161161020

main91611-61020

9411040800

main94110-40800

9672124010

main96721-24010

37 parts on this diagram · 11 diagrams in section
