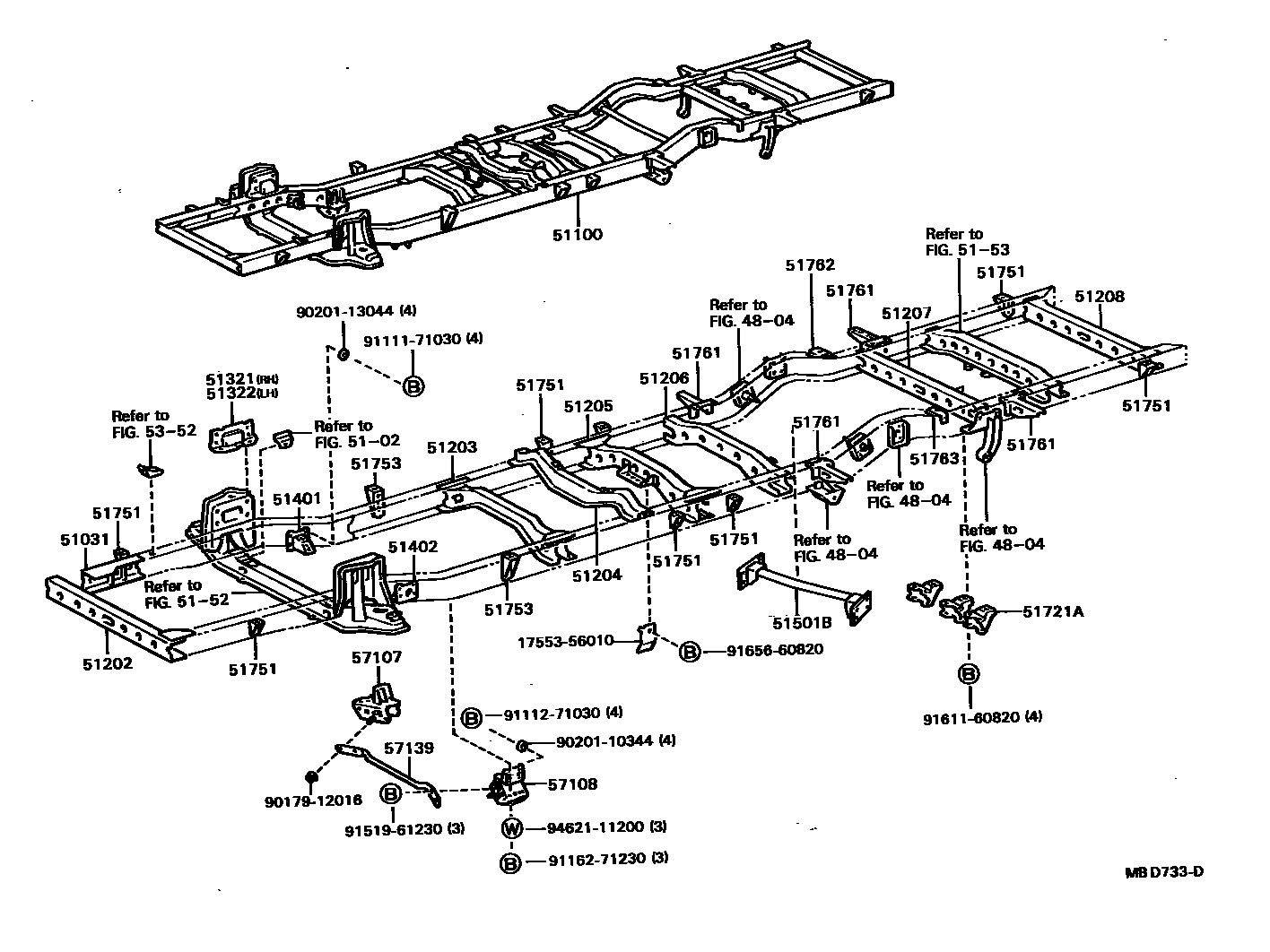

FRAME

4804

5102

51031GUSSET SUB-ASSY, FRONT CROSSMEMBER, RH

main51031-36010iBB2#,3#,HB3#,RB2#198205-198808

sub51031-36011

main51031-36011iBB2#,31,HB3#,RB20198808-199301

51100FRAME ASSY

main51001-3B310iBB3#198205-198408

main51001-3B311iBB3#198408-198504

sub51001-3B312

main51001-3B312iBB3#198504-198510

main51001-3B313iBB3#198510-198610

main51001-3B314iBB3#198610-199301

main51001-3B320iHB30198205-198408

main51001-3B321iHB3#198408-198504

sub51001-3B322

main51001-3B322iHB3#198504-198510

main51001-3B323iHB3#..5F198510-198610

main51001-3B324iHB30,31,36..5F198610-199001

main51001-3B420iBB2#198205-198408

main51001-3B421iBB2#198408-198504

sub51001-3B422

main51001-3B422iBB2#198504-198510

main51001-3B423iBB2#198510-198610

main51001-3B424iBB21,23,26..5F198610-199301

main51001-3B430iRB20198205-198408

main51001-3B431iRB2#198408-198504

sub51001-3B432

main51001-3B432iRB2#198504-198510

main51001-3B433iRB2#198510-198610

main51001-3B434iRB2#198610-199301

main51002-3B200iHB31..4FC198510-198610

main51002-3B201iHB31..4FC198610-199001

main51002-3B840iBB23..4FC198808-199301

main51002-3B850iBB24..5F198808-199301

main51002-3B860iBB24..4FC198808-199301

main51002-3B870iHB32..5F198808-199001

main51002-3B880iHB32..4FC198808-199001

main51003-3B090iHDB20199001-199301

main51003-3B260iHDB30,HZB30,36..5F199001-199301

main51003-3B270iHDB30,HZB30..4FC199001-199301

main51003-3B280iHDB31,HZB31..5F199001-199301

main51003-3B290iHDB31,HZB31..4FC199001-199301

51202CROSSMEMBER SUB-ASSY, FRAME, NO.1

main51201-36080iBB2#,3#,HB3#,RB2#198205-199301

51203CROSSMEMBER SUB-ASSY, FRAME, NO.2

main51203-36230iBB2#,3#,HB3#,RB2#198205-198510

main51203-36231iBB2#,3#,HB3#,RB2#198510-199301

51204CROSSMEMBER SUB-ASSY, FRAME, NO.3

main51204-36080iBB2#,3#,HB3#,RB2#198205-198504

sub51204-36081

main51204-36081iBB2#,3#,HB3#,RB2#198504-198510

main51204-36082iBB23,24..4FC198510-199301

main51204-36140iHDB20,3#,HZB30,31..4FC198510-199301

51205CROSSMEMBER SUB-ASSY, FRAME, NO.4

main51205-36060iBB2#,3#,HB3#,RB2#198205-199301

51206CROSSMEMBER SUB-ASSY, FRAME, NO.5

main51206-36050iBB2#,3#,HB30,RB20198205-198408

main51206-36051iBB2#,3#,HB3#,RB2#198408-198505

main51206-36052iHDB20,3#,HZB3#198505-199301

51207CROSSMEMBER SUB-ASSY, FRAME, NO.6

main51271-36050iBB2#,3#,HB3#,RB2#198205-199301

51208CROSSMEMBER SUB-ASSY, FRAME, NO.7

main51291-36110iBB2#,3#,HB3#,RB2#198205-199301

51321GUSSET, CROSSMEMBER, NO.2 RH

main51321-36040iBB2#,3#,HB3#,RB2#198205-199301

51322GUSSET, CROSSMEMBER, NO.2 LH

main51322-36050iBB2#,3#,HB3#,RB2#198205-199301

51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

main51401-36100iRB2#198205-199301

main51421-36070iBB2#,3#198205-199301

main51421-36080iHDB20,3#,HZB3#198205-199301

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51402-36100iRB2#198205-199301

main51422-36040iHDB20,3#,HZB3#198205-199301

main51422-36050iHB3#198205-199001

51501BROD SUB-ASSY, LATERAL ROD SUPPORT

main51501-36020iBB24,HB32198808-199301

5152

5153

51721ABRACKET, BODY SUPPORT, CENTER

main51721-36050iHB3#198205-199301

51751BRACKET, BODY SUPPORT, NO.1

main51751-36040iBB2#,RB2#198205-199301

51753BRACKET, BODY SUPPORT, NO.2

main51753-36040iBB2#,3#,HB3#,RB2#198205-198608

sub51753-36041

main51753-36041iBB2#,3#,HB3#,RB2#198608-199301

51761BRACKET, BODY SUPPORT, NO.6

main51763-36030iBB2#,3#,HB3#,RB2#198205-199301

51762BRACKET, BODY SUPPORT, NO.5 RH

main51761-36020iBB2#,3#,HB3#,RB2#198205-199301

51763BRACKET, BODY SUPPORT, NO.5 LH

main51762-36030iBB2#,3#,HB3#,RB2#198205-199301

5352

57107BRACKET SUB-ASSY, STRUT BAR, RH

main57107-36010iBB2#,3#,RB2#198205-198510

main57107-36011iBB2#,3#,RB2#198510-199301

main57107-36020iHB3#198205-198510

main57107-36021iHDB20,3#198510-199301

57108BRACKET SUB-ASSY, STRUT BAR, LH

main57108-36010iBB2#,3#,RB2#198205-198510

main57108-36011iBB2#,3#,RB2#198510-199301

main57108-36020iHB3#198205-198510

main57108-36021iHB3#198510-199301

57139ROD, STRUT BAR BRACKET BRACE

main57139-36010iBB2#,3#,RB2#198205-199301

main57139-36020iHB3#198205-199001

main57139-36030iHDB20,3#199001-199301

1755356010INSULATOR, EXHAUST PIPE HEAT, NO.3

main17553-56010

9017912016

main90179-12016

9020110344

main90201-10344

9020113044

main90201-13044

9111171030

main91111-71030

9111271030

main91112-71030

9116271230

main91162-71230

9151961230

main91519-61230

9161160820

main91611-60820

9165660820

main91656-60820

9462111200

main94621-11200

39 parts on this diagram · 1 diagram in section
