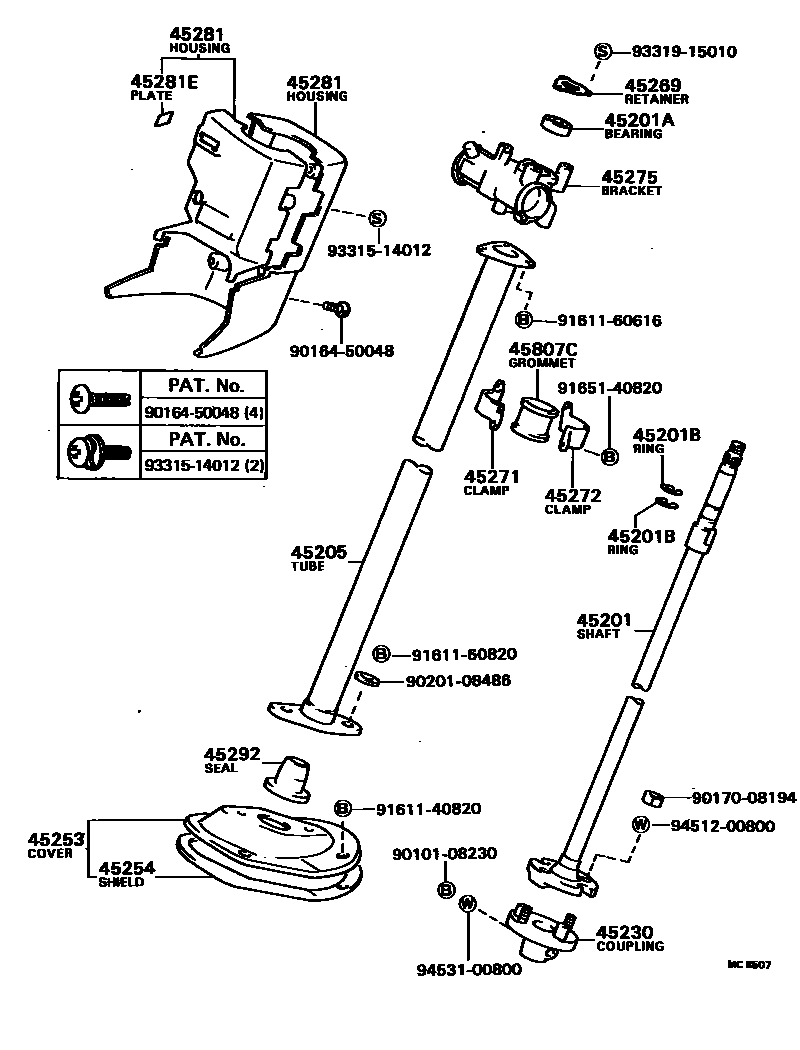

STEERING COLUMN & SHAFT

45201SHAFT SUB-ASSY, STEERING MAIN

main45201-36120iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18038iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

main90520-17269iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-36140iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

45230COUPLING ASSY, FLEXIBLE

main45230-36010iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

45253COVER, STEERING COLUMN HOLE

main45025-36080iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

45254SHIELD, STEERING COLUMN HOLE

main45254-36060iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

45269RETAINER, MAIN SHAFT BEARING

main45269-36010iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

45271CLAMP, STEERING COLUMN, UPPER

main55175-90B00iBB2#,3#,HB3#,RB2#..CBU198205-199301

45272CLAMP, STEERING COLUMN, LOWER

main55177-90B00iBB2#,3#,HB3#,RB2#..CBU198205-199301

45275BRACKET, STEERING COLUMN, UPPER

main45307-36140iBB20,30,HB30,RB20198205-198208

main45307-36141iBB2#,3#,HB3#,RB2#198208-199001

main45307-36180iBB23,24,HDB20,3#,HZB30,31..4FC199001-199301

45281HOUSING, STEERING COLUMN

main45286-36420iBB2#,3#,HB3#..CBU198205-198510

UPR,W/EXHAUST BRAKE

main45286-36430iBB2#,3#,RB2#..CBU198205-198510

UPR

main45286-36440iBB20,21,HB30,RB20..IV198205-198510

UPR

main45286-36450iBB20,21,RB20..IV198205-198510

UPR

main45286-36670-12iBB2#,3#,HB3#198708-198808

UPR,W/*EB,MAROON

main45286-36720-12iBB2#,3#,RB2#198510-198708

MAROON,UPR,MAROON

main45286-36730-06iBB2#,31,HDB3#,HZB3#..5F199001-199301

SABLE,UPR,SABLE

main45286-36740-02iBB21,26,3#,RB2#198708-199301

UPR,DARK WINE

main45286-36810-06iBB23,24,HDB20,3#,HZB30,31..4FC199001-199301

SABLE,UPR,SABLE

main45287-36160iBB2#,3#,HB3#..CBU198205-198510

LWR

main45287-36170iBB2#,3#,RB2#198205-198510

LWR

main45287-36290-06iBB2#,31,HB3#,HDB20,3#,HZB3#198808-199301

SABLE,LWR,W/*EB,SABLE

main45287-36290-12iBB2#,3#,HB3#198510-198808

MAROON,LWR,W/*EB,MAROON

main45287-36300-12iBB21,26,3#,RB2#198510-199301

MAROON,LWR,MAROON

45281EPLATE, SAFETY CAUTION

main45283-22010iBB2#,3#,HB3#,RB2#198205-199301

45292SEAL, MAIN SHAFT LOWER DUST

main45292-36010iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

45807CGROMMET(FOR STEERING COLUMN CLAMP)

main90480-45092iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

9010108230

main90101-08230

9016450048

main90164-50048

9017008194

main90170-08194

9020108486

main90201-08486

9161140820

main91611-40820

9161160616

main91611-60616

9161160820

main91611-60820

9165140820

main91651-40820

9331514012

main93315-14012

9331915010

main93319-15010

9451200800

main94512-00800

9453100800

main94531-00800

27 parts on this diagram · 1 diagram in section
