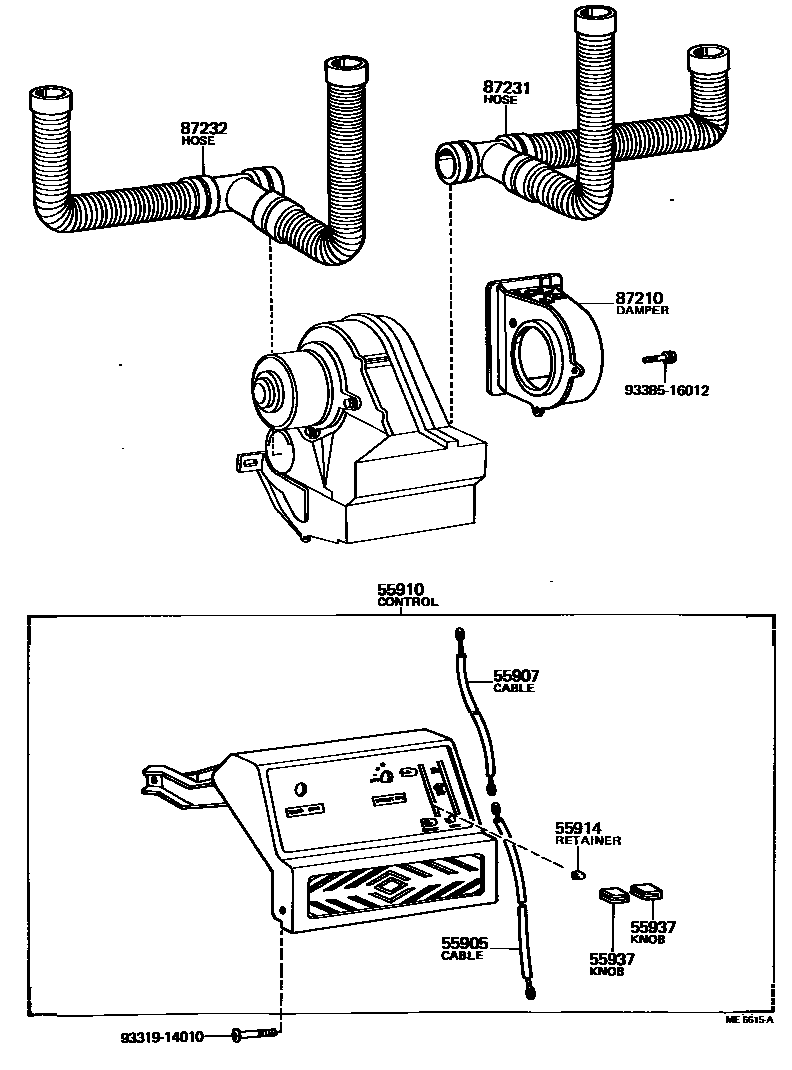

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1 0003 1

55905CABLE SUB-ASSY, DEFROST CONTROL

main55906-36011iBB1#,RB1#197708-198204

55907CABLE SUB-ASSY, HEATER AIR INLET BUTTERFLY

main55908-36011iBB1#,RB1#197708-198204

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-36050iBB1#,RB1#197708-198204

55914RETAINER, HEATER CONTROL KNOB

main55918-30020×2iBB1#,RB1#197708-198204

55937KNOB, HEATER CONTROL LEVER

main55925-30020×2iBB1#,RB1#197708-198204

87210DAMPER ASSY, AIR

main87210-36010iBB1#,RB1#197708-198204

87231HOSE, HEATER DEFROSTER, RH

main87231-36061iBB1#,RB1#197708-198204

87232HOSE, HEATER DEFROSTER, LH

main87232-36052iBB1#,RB11,12197708-198204

sub87232-36070

9331914010

main93319-14010

9338516012

main93385-16012

10 parts on this diagram · 3 diagrams in section
