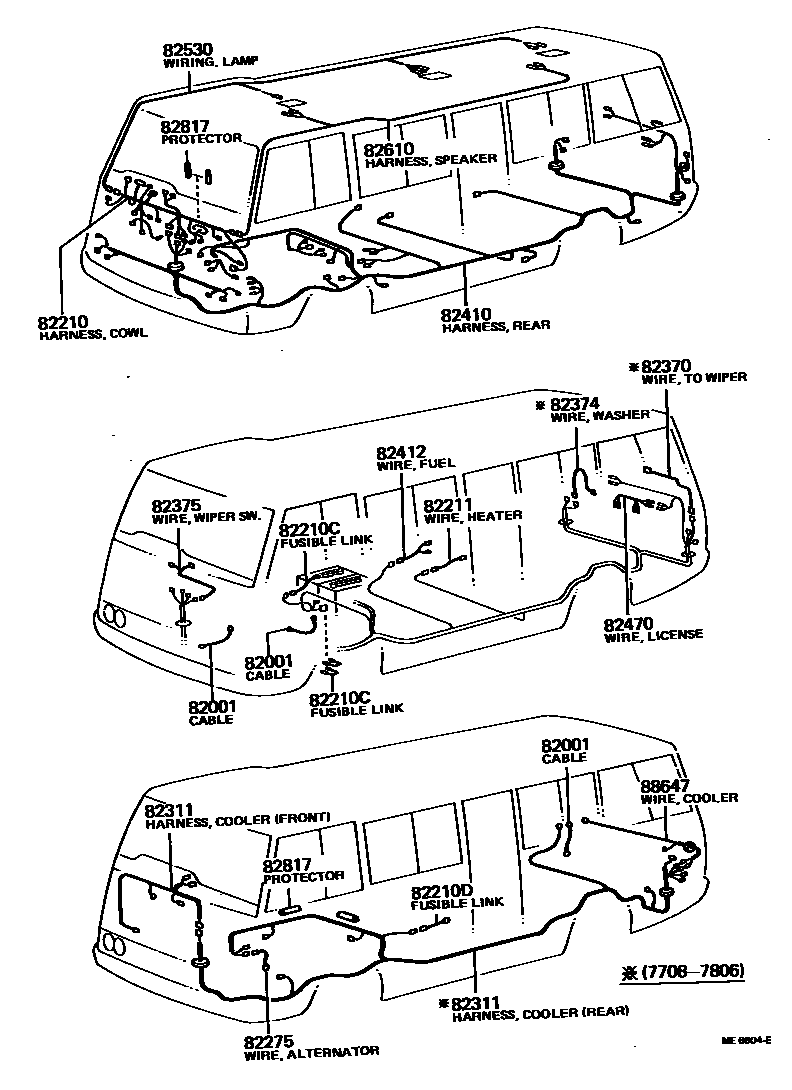

WIRING & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1

82001CABLE, BOND, NO.1

main82416-90740iBB1#,RB1#..BC197708-198204

L=250,COOLER MOTOR

main90980-07021iRB1#197708-198204

L=280

main90980-07063iBB1#197708-198103

L=300

main90980-07124iRB1#197708-198204

L=280

main90980-07164iRB1#197911-198204

L=360

main90980-07199iBB11198103-198204

L=320

sub90980-07125

82210HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1

main82210-90513iRB13..BC198008-198204

main82210-90740iRB11..DLX,STD197708-197911

main82210-90742iBB10197708-197911

main82210-90747iRB11197808-197911

W/COOLER & COLD SPEC

main82210-90752iBB11197911-198008

W/EXHAUST BRAKE

main82210-90755iRB12..DLX,STD197911-198008

main82210-90758iRB12197911-198008

W/COOLER & COLD SPEC

main82210-90762iBB11197911-198008

main82220-90500iBB11..DLX,STD198008-198204

main82220-90501iBB11..DLX,STD198008-198204

W/EXHAUST BRAKE

main82220-90507iBB11..BC198008-198204

main82220-90508iBB11..BC198008-198204

W/EXHAUST BRAKE

main82220-90512iRB13..DLX,STD198008-198204

82210CFUSIBLE LINK

main90982-08035iBB11198002-198204

L=110, 1.25B

main90982-08036iBB1#,RB1#197708-198204

L=100, 0.5G

main90982-08038iRB1#198002-198204

L=110, 1.0B

main90982-08038iBB1#,RB1#197708-198002

L=110,1.0B

main90982-08042iBB1#,RB1#197708-198204

L=100, 0.85R

main90982-08150iBB11198008-198204

L=100,0.3P

82210DFUSIBLE LINK

main90982-08069iBB1#,RB1#..BC197708-198204

L=110,2L

82211WIRE, HEATER BLOWER FAN SWITCH

main82213-90740iBB10,RB11..21S,22S197708-197911

main82213-90741iBB11,RB12..21S,22S197911-198008

main82213-90744iBB11,RB13..21S,22S198008-198204

82275WIRE, ALTERNATOR

main82261-90740iBB10..DLX,STD197708-197911

COLD SPEC

main82261-90741iRB1#197808-198204

W/COOLER & COLD SPEC

82311HARNESS ASSY, COOLER

main82310-90740iBB10,RB11..BC197708-197807

FR

main82310-90742iBB1#,RB1#..BC197807-198008

FR

main82310-90744iBB11..BC198008-198204

sub82310-90746

main82310-90746iRB13..BC198008-198204

main82320-90740iRB11..BC197708-197806

RR

main82320-90742iBB10..BC197708-197806

RR

82370WIRE ASSY, WIPER SWITCH TO WIPER

main82375-90740iBB10,RB11..BC;BB10,RB11..DLX197708-197806

RR WIPER

82374WIRE, WASHER

main82374-90740iBB10,RB11..BC;BB10,RB11..DLX197708-197806

RR WIPER

82375WIRE, WIPER SWITCH

main82305-90740iBB1#,RB1#..BC;BB1#,RB1#..DLX197708-198204

RR WIPER

82410HARNESS ASSY, WIRING TO REAR LAMP

main82410-90521iBB11..39C197911-198008

W/EXHAUST BRAKE

main82410-90522iRB12..BC197912-198004

sub82410-90529

main82410-90525iBB11..BC197912-198004

main82410-90528iBB11..BC197912-198004

W/EXHAUST BRAKE

main82410-90532iRB12..BC198004-198006

main82410-90535iBB11..BC198004-198006

main82410-90538iBB11..BC198004-198006

W/EXHAUST BRAKE

main82410-90539iRB12..BC198006-198008

main82410-90542iBB11..BC198006-198008

main82410-90545iBB11..BC198006-198008

W/EXHAUST BRAKE

main82410-90546iBB11..22S,26S198008-198204

W/EXHAUST BRAKE

main82410-90547iBB11..BC198008-198204

W/EXHAUST BRAKE

main82410-90548iBB11..22S,26S198008-198204

main82410-90549iBB11..BC198008-198204

main82410-90550iBB11..39C198008-198204

W/EXHAUST BRAKE

main82410-90551iBB11..39C198008-198204

main82410-90556iRB13..BC198008-198204

main82410-90557iRB13..22S,26S198008-198204

main82410-90558iRB13..39C198008-198204

COLD SPEC

main82410-90559iRB13..39C198008-198204

main82410-90560iRB13..22S,26S198008-198204

COLD SPEC

main82410-90740iRB11..21S,22S,25S,26S197708-197806

main82410-90741iRB11..39C197708-197806

main82410-90745iBB10..21S,22S,25S,26S197708-197806

main82410-90746iBB10..39C197708-197806

main82410-90749iRB11..22S,26S197806-197911

main82410-90750iRB11..39C197806-197911

main82410-90753iRB11..BC197806-197808

main82410-90758iBB10..22S,26S197806-197911

main82410-90760iBB10..BC197806-197911

main82410-90762iRB11..22S,26S197808-197911

COLD SPEC

main82410-90763iRB11..39C197808-197911

COLD SPEC

main82410-90764iRB11..BC197808-197911

main82410-90767iBB10..39C197811-197911

main82410-90770iBB11..22S,26S197911-198008

main82410-90773iBB11..BC197911-197912

sub82410-90525

main82410-90775iBB11..39C197911-198008

main82410-90776iRB12..22S,26S197911-198008

main82410-90777iRB12..39C197911-198008

main82410-90780iRB12..BC197911-197912

sub82410-90522

main82410-90783iRB12..22S,26S197911-198008

COLD SPEC

main82410-90784iRB12..39C197911-198008

COLD SPEC

main82410-90788iBB11..22S,26S197911-198008

W/EXHAUST BRAKE

main82410-90789iBB11..BC197911-197912

W/EXHAUST BRAKE

sub82410-90528

82412WIRE, FUEL GAGE

main82412-90740iRB11197708-197911

main82412-90741iBB10197708-198204

82470WIRE ASSY, LICENSE LAMP FEED

main82470-90501iBB10,RB11..21S,22S,25S,26S197708-197806

main82470-90502iBB10,RB11..(22S,26S)..STD197806-197911

main82470-90503iBB10,RB11..BC;BB10,RB11..DLX197806-197911

main82470-90504iBB1#,RB1#..39C197806-198204

main82470-90505iBB11,RB1#..(22S,26S)..STD197911-198204

main82470-90506iBB11,RB1#..BC;BB11,RB1#..DLX197911-198204

82530WIRING ASSY, INTERIOR LAMP FEED

main82530-90740iBB10,RB11..(21S,22S,25S,26S)..SRF197708-197911

main82530-90741iBB10,RB11..39C197708-197911

main82530-90742iBB10,RB11..HRF197708-197911

main82530-90743iBB11,RB12..(21S,22S,25S,26S)..SRF197911-198008

main82530-90744iBB11,RB12..HRF197911-198008

main82530-90745iBB11,RB12..39C197911-198008

main82530-90746iRB13..(21S,22S,25S,26S)..SRF198008-198204

main82530-90747iRB13..HRF198008-198204

main82530-90748iRB13..39C198008-198204

main82530-90750iBB11..39C198008-198204

main82530-90751iBB11..HRF198008-198204

82610HARNESS ASSY, ROOF SPEAKER

main82402-90740iBB10,RB11..SRF197708-197911

main82402-90741iBB10,RB11..HRF197708-197911

main82402-90742iBB11,RB1#..SRF197911-198204

main82402-90743iBB11,RB1#..HRF197911-198204

82817PROTECTOR, WIRING HARNESS, NO.1

main82718-95700iBB1#,RB1#197801-198204

L=130

main82817-90300iBB10,RB11197801-197808

L=60

main82817-90502iBB1#,RB1#197801-198204

L=160

main82817-90510iBB11,RB13198008-198204

60X20

main82817-95600iBB1#,RB1#197708-198204

L=80

88647WIRE SUB-ASSY, COOLER

main82418-90500iRB1#..BC197807-198004

main82418-90501iBB1#..BC197807-198004
