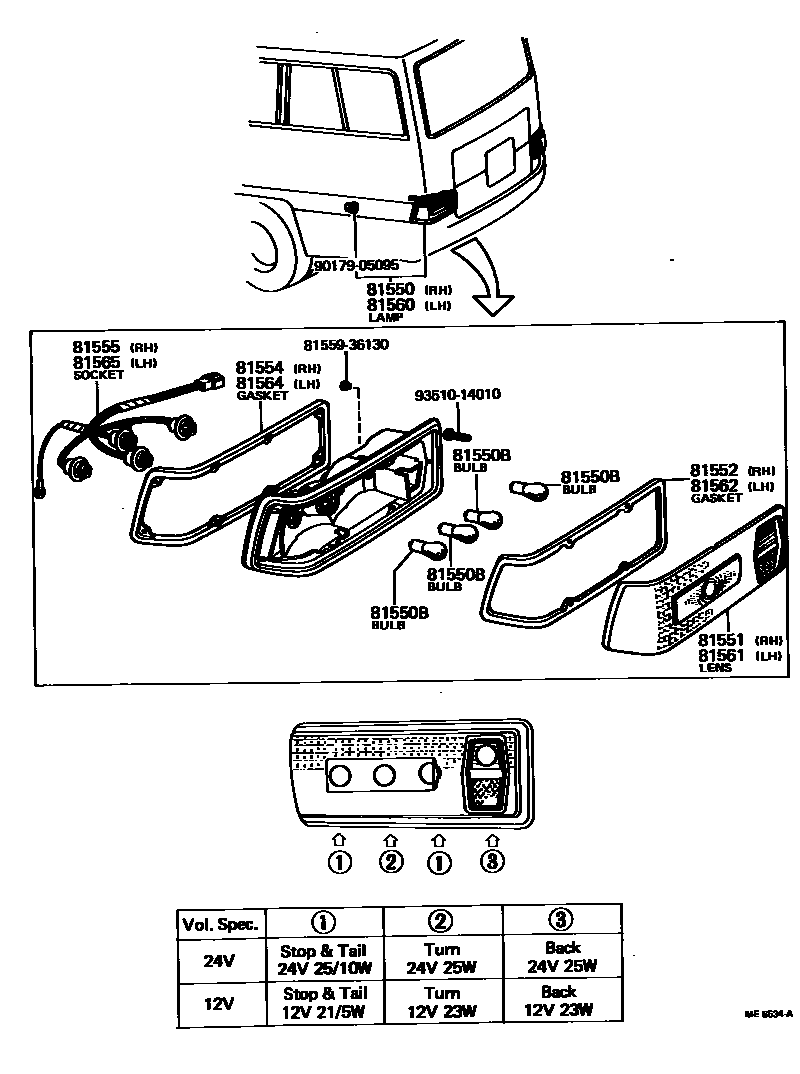

REAR COMBINATION LAMP

81550LAMP ASSY, REAR COMBINATION, RH

main81550-39146iRB1#197708-198204

main81550-39156iBB1#197708-198204

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-16021iBB11198008-198204

main99132-11230iRB1#197708-198204

main99132-21210iRB1#197708-198204

main99134-11250iBB1#197708-198204

main99134-22250iBB1#197708-198008

81551LENS, REAR COMBINATION LAMP, RH

main81551-36140iBB1#,RB1#197708-198204

AMBER-RED-CLEAR

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81552-36140iBB1#,RB1#197708-198204

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81554-36141iBB1#,RB1#197708-198204

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-36141iRB1#197708-198204

main81555-36151iBB1#197708-198204

sub81555-36141

81560LAMP ASSY, REAR COMBINATION, LH

main81560-39166iRB1#197708-198204

main81560-39176iBB1#197708-198204

81561LENS, REAR COMBINATION LAMP, LH

main81561-36150iBB1#,RB1#197708-198204

AMBER-RED-CLEAR

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81562-36150iBB1#,RB1#197708-198204

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81564-36151iBB1#,RB1#197708-198204

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-36141iRB1#197708-198204

main81555-36151iBB1#197708-198204

sub81555-36141

8155936130MOULDING, REAR COMBINATION LAMP, RH

main81559-36130

9017905095

main90179-05095

9351014010

main93510-14010

14 parts on this diagram · 1 diagram in section
