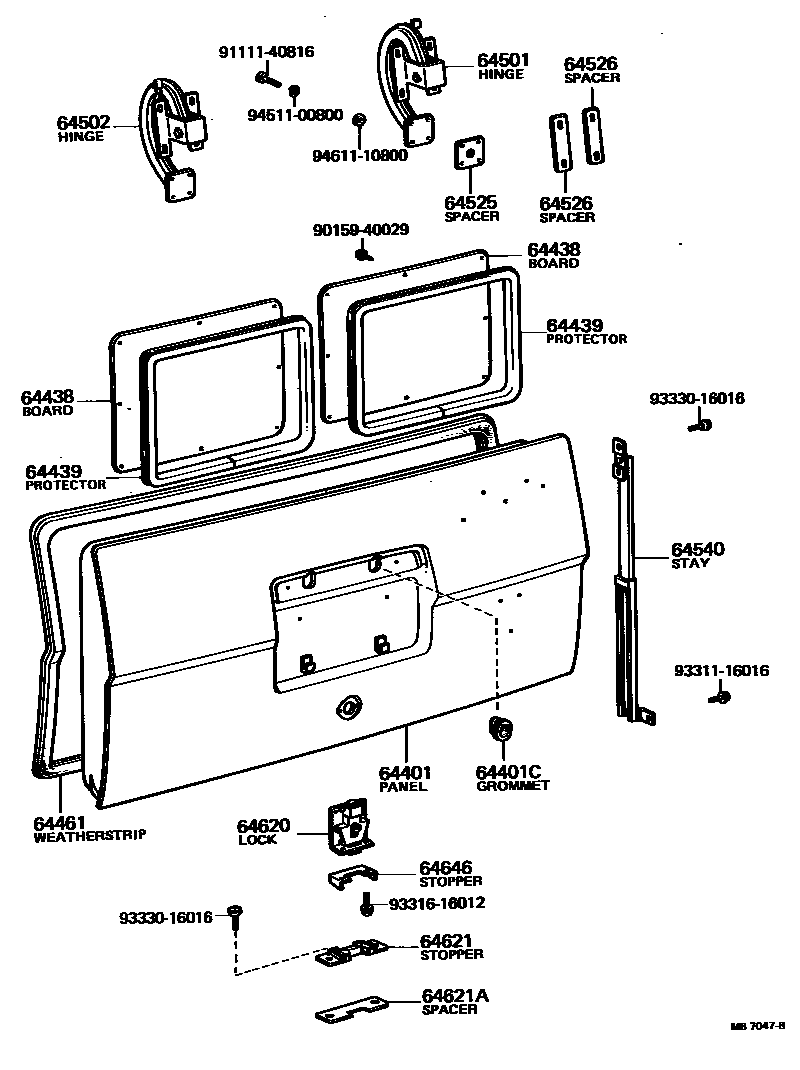

LUGGAGE COMPARTMENT DOOR & LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-90506iBB10,RB11..21S,22S,25S,26S197708-197911

sub64401-90509

main64401-90509iBB11,RB1#..21S,22S,25S,26S197911-198204

64401CGROMMET(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main64427-90500iBB1#,RB1#..21S,22S,25S,26S197708-198204

64438BOARD, LUGGAGE COMPARTMENT DOOR, INNER

main64438-90740iBB1#,RB1#..21S,22S,25S,26S197708-198204

64439PROTECTOR, LUGGAGE COMPARTMENT DOOR, INNER

main64439-90500iBB11,RB1#..21S,22S,25S,26S197911-198204

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-90504iBB1#,RB1#..21S,22S,25S,26S197708-198204

64501HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-90500iBB1#,RB1#..21S,22S,25S,26S197708-198204

64502HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-90500iBB1#,RB1#..21S,22S,25S,26S197708-198204

64525SPACER, LUGGAGE DOOR HINGE MALE

main64525-90500iBB1#,RB1#..21S,22S,25S,26S197708-198204

T=1.0

main64525-90501iBB1#,RB1#..21S,22S,25S,26S197708-198204

T=1.6

64526SPACER, LUGGAGE DOOR HINGE FEMALE

main64526-90500iBB1#,RB1#..21S,22S,25S,26S197708-198204

T=1.0

main64526-90501iBB1#,RB1#..21S,22S,25S,26S197708-198204

T=1.6

64540STAY ASSY(FOR LUGGAGE COMPARTMENT DOOR)

main64530-90500iBB1#,RB1#..21S,22S,25S,26S197708-198204

64620LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64620-90500iBB1#,RB1#..21S,22S,25S,26S197708-198204

64621STOPPER, LUGGAGE DOOR LOCK

main64604-90500iBB1#,RB1#..21S,22S,25S,26S197708-198204

64621ASPACER, LUGGAGE DOOR LOCK STOPPER

main64647-90500iBB1#,RB1#..21S,22S,25S,26S197708-198204

64646STOPPER, LUGGAGE COMPARTMENT DOOR FEMALE

main64646-90500iBB1#,RB1#..21S,22S,25S,26S197708-198204

9015940029

main90159-40029

9111140816

main91111-40816

9331116016

main93311-16016

9331616012

main93316-16012

9333016016

main93330-16016

9451100800

main94511-00800

9461110800

main94611-10800

21 parts on this diagram · 1 diagram in section
