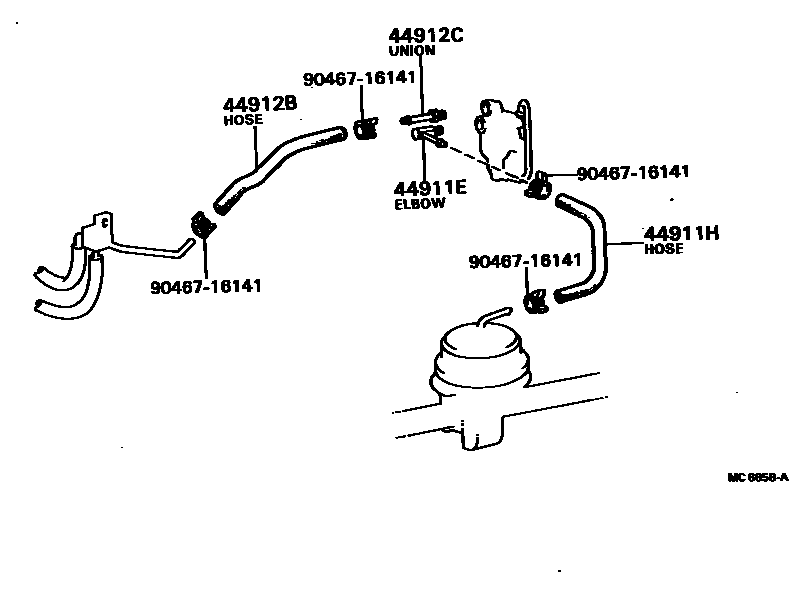

EXHAUST BRAKE TUBE & CLAMP

44911EELBOW (FOR MAGNETIC VALVE TO VACUUM CYLINDER TUBE)

main90407-51002iBB11197911-198204

44911HHOSE (FOR MAGNETIC VALVE TO VACUUM CYLINDER TUBE)

main90445-17033iBB11197911-198204

sub95441-09220

44912BHOSE(FOR 3 WAY TO MAGNETIC VALVE TUBE)

main90445-17927iBB11197911-198204

44912CUNION(FOR 3 WAY TO MAGNETIC VALVE TUBE)

main90404-51319iBB11197911-198204

9046716141

main90467-16141

5 parts on this diagram · 1 diagram in section
