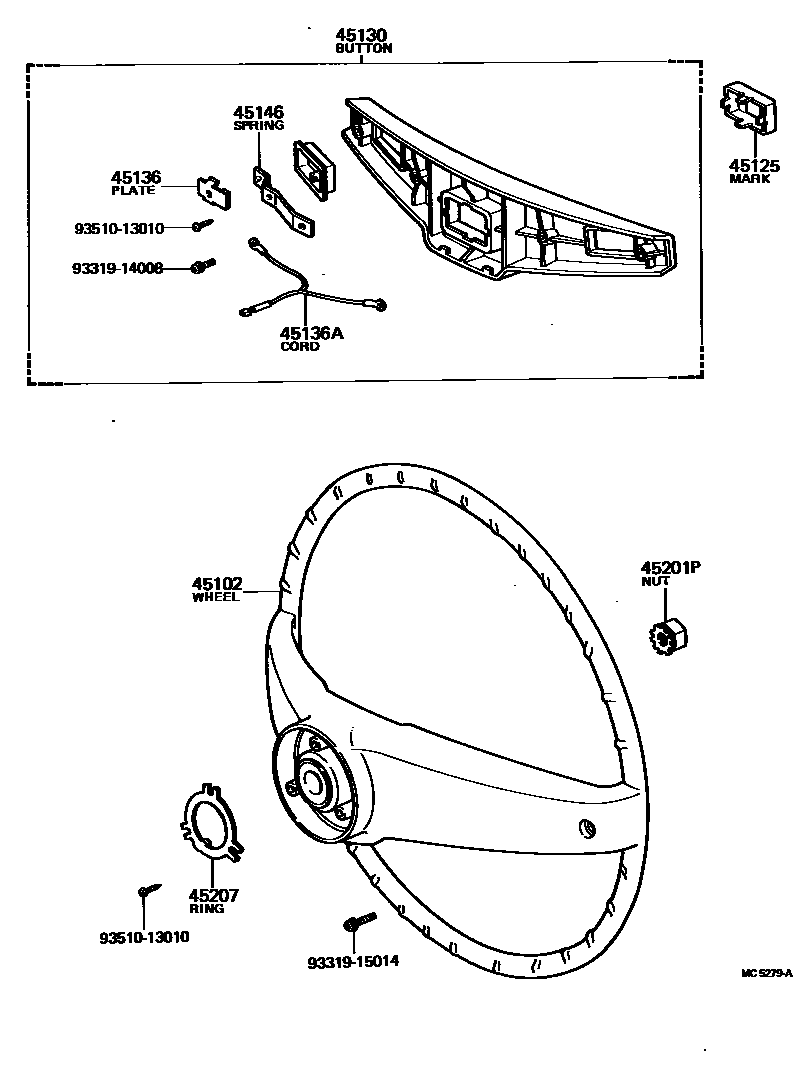

STEERING WHEEL

45102WHEEL SUB-ASSY, STEERING

main45102-36030iBB1#,RB1#197708-198204

45125MARK, STEERING WHEEL PAD

main45125-36010iBB1#,RB1#197708-198204

45130BUTTON ASSY, HORN

main45130-36040iBB1#,RB1#197708-198204

45136PLATE, HORN BUTTON CONTACT

main45136-26020iBB1#,RB1#197708-198204

45136ACORD(FOR HORN CONTACT RING)

main90945-02013iBB1#,RB1#197708-198204

45146SPRING, HORN BUTTON CONTACT

main45146-26010iBB1#,RB1#197708-198204

45201PNUT, STEERING WHEEL SET

main90179-12086iBB1#,RB1#197708-198204

45207RING, HORN CONTACT

main45176-20030iBB1#,RB1#197708-198204

9331914008

main93319-14008

9331915014

main93319-15014

9351013010

main93510-13010

11 parts on this diagram · 1 diagram in section
