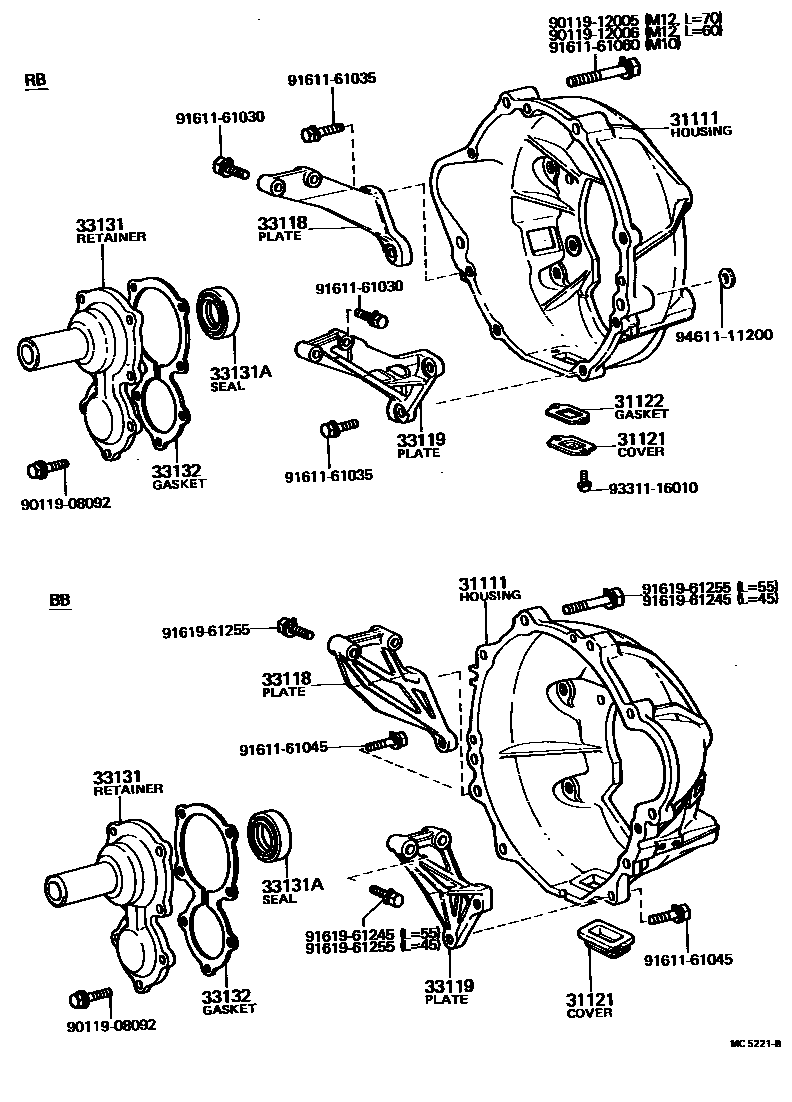

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1 0002 1

31111HOUSING, CLUTCH

main31111-36050iBB1#197708-198204

main31111-36070iRB11197708-197911

sub31111-36090

main31111-36090iRB1#197911-198204

31121COVER, CLUTCH HOUSING, NO.1

main31121-36040iBB1#197708-198204

sub31121-36110

main31121-36050iRB1#197708-198204

31122GASKET, CLUTCH HOUSING COVER

main31122-36010iRB1#197708-198204

33118PLATE, STIFFENER, RH(MTM)

main33118-22030iRB1#197708-198204

main33118-36010iBB1#197708-198204

sub33118-36020

33119PLATE, STIFFENER, LH(MTM)

main33119-22020iRB11197708-197808

sub33119-22021

main33119-22021iRB1#197808-198204

sub33119-22022

main33119-36010iBB1#197708-198204

33131RETAINER, BEARING, FRONT(MTM)

main33131-36022iBB1#,RB1#197708-198109

sub33131-36023

main33131-36023iBB11,RB13198109-198204

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-32106iBB1#,RB1#197708-198204

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-36022iBB1#,RB1#197708-198204

9011908092

main90119-08092

9011912005

main90119-12005

9011912006

main90119-12006

9161161030

main91611-61030

9161161035

main91611-61035

9161161045

main91611-61045

9161161060

main91611-61060

9161961245

main91619-61245

9161961255

main91619-61255

9331116010

main93311-16010

9461111200

main94611-11200

19 parts on this diagram · 2 diagrams in section
