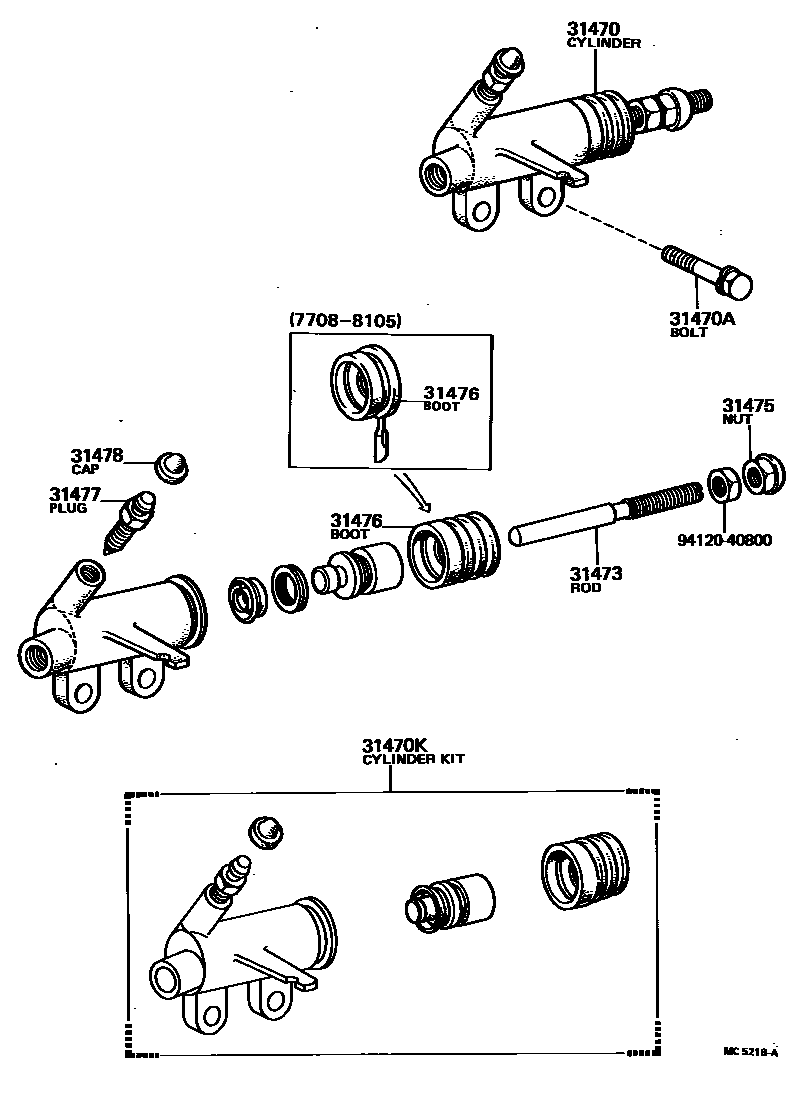

CLUTCH RELEASE CYLINDER

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-36050iBB1#197708-198204

main31470-36080iRB1#197708-198204

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-40828iBB1#,RB1#197708-198204

sub91611-60828

31470KCYLINDER KIT, CLUTCH RELEASE

main04313-36020iBB1#,RB1#197708-198105

main04313-36021iBB11,RB13198105-198204

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-25010iBB11,RB13198105-198204

main31473-30021iBB1#,RB1#197708-198105

31475NUT, CLUTCH RELEASE CYLINDER PUSH ROD

main31475-30010iBB1#,RB1#197708-198204

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-20040iBB1#,RB1#197708-198105

main31476-22010iBB11,RB13198105-198204

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iBB1#,RB1#197708-198204

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iBB1#,RB1#197708-198204

9412040800

main94120-40800

9 parts on this diagram · 1 diagram in section
