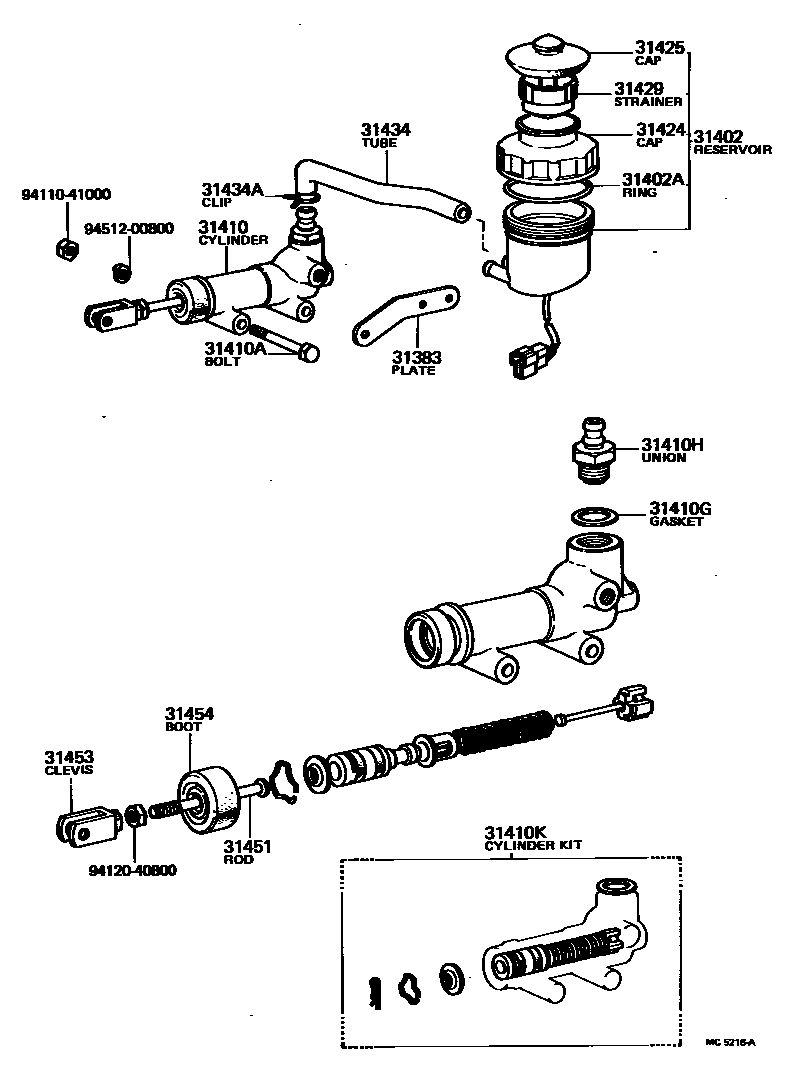

CLUTCH MASTER CYLINDER

31383PLATE, PEDAL SUPPORT SHAFT SET

main55136-90740iBB1#,RB1#197708-198204

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main47220-36010iBB1#,RB1#197708-198101

sub47220-36011

main47220-36011iBB11,RB13198101-198204

31402ARING, O(FOR RESERVOIR CAP SET)

main90301-59149iBB1#,RB1#197708-198204

31410CYLINDER ASSY, CLUTCH MASTER

main31420-36030iBB1#,RB1#197708-198204

sub31420-36031

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main91121-40870iBB1#,RB1#197708-198204

sub91131-40870

31410GGASKET(FOR CLUTCH MASTER CYLINDER UNION)

main90430-16242iBB1#,RB1#197708-198204

31410HUNION(FOR CLUTCH MASTER CYLINDER)

main90404-16307iBB1#,RB1#197708-198204

31410KCYLINDER KIT, CLUTCH MASTER

main04311-20050iBB1#,RB1#197708-198204

sub04311-14011

31424CAP, RESERVOIR(FOR CLUTCH MASTER CYLINDER)

main31424-36010iBB1#,RB1#197708-198101

main31424-36011iBB11,RB13198101-198204

sub47230-20040

31425CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main31440-35010iBB1#,RB1#197708-198101

sub47230-20040

main47230-25020iBB11,RB13198101-198204

31429STRAINER, MASTER CYLINDER RESERVOIR

main47299-25010iBB11,RB13198101-198204

main47299-36010iBB1#,RB1#197708-198101

31434TUBE, CLUTCH RESERVOIR

main31434-36022iBB1#,RB1#197708-198204

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main90467-14044iBB1#,RB1#197708-198204

sub90467-14001

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-14010iBB1#,RB1#197708-198204

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31453-22010iBB1#,RB1#197708-198204

sub31453-35010

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iBB1#,RB1#197708-198204

9411041000

main94110-41000

9412040800

main94120-40800

9451200800

main94512-00800

19 parts on this diagram · 1 diagram in section
