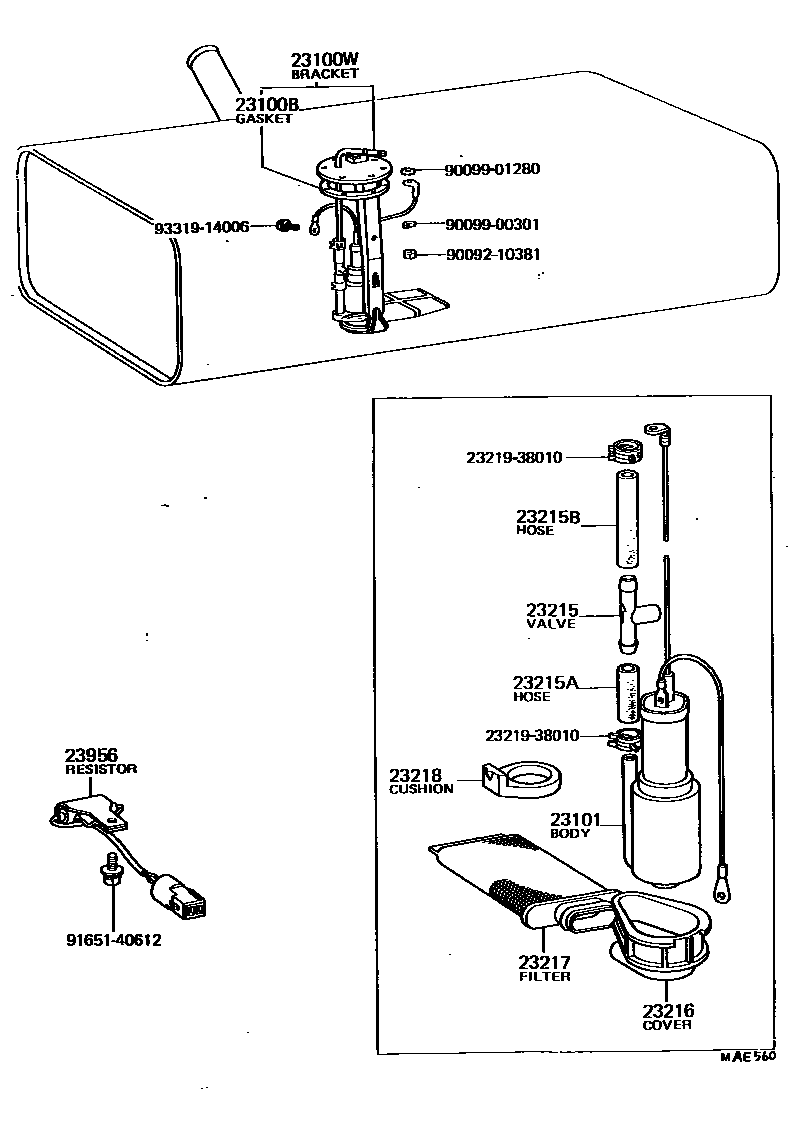

FUEL PUMP & PIPE

0001 1 0002 1

23100PUMP ASSY, FUEL

main23100-39315i20R..RB12197911-198008

sub23100-38070

main23100-39335i22R..RB13198008-198108

sub23100-39336

main23100-39336i22R..RB13198108-198204

23100BGASKET, FUEL PUMP

main83361-14010i20R..RB11197708-197911

main90923-05005i20R,22R..RB1#197911-198204

sub90923-05019

23100WBRACKET(FOR FUEL PUMP & FUEL SENDER GAGE)

main85681-39015i20R..RB11197708-197911

23101BODY SUB-ASSY, FUEL PUMP

main23101-38010i20R..RB11197708-197911

23215VALVE, RELIEF

main23215-38011i20R..RB11197708-197805

sub85675-21010

main85675-21010i20R..RB11197805-197911

23215AHOSE, FUEL PUMP, NO.1

main90099-19101i20R..RB11197708-197911

23215BHOSE, FUEL PUMP, NO.2

main90099-19102i20R..RB11197708-197911

23216COVER, FUEL PUMP

main85676-14010i20R..RB11197708-197911

23217FILTER, FUEL PUMP

main85677-14010i20R..RB11197708-197911

23218CUSHION, RUBBER

main23218-38010i20R..RB11197708-197911

23956RESISTOR, FUEL PUMP

main85671-20011i20R..RB11197708-197911

2321938010CLIP, HOSE

main23219-38010

9009210381

main90092-10381

9009900301

main90099-00301

9009901280

main90099-01280

9165140612

main91651-40612

9331914006

main93319-14006

17 parts on this diagram · 2 diagrams in section
