FUEL PIPE & CLAMP

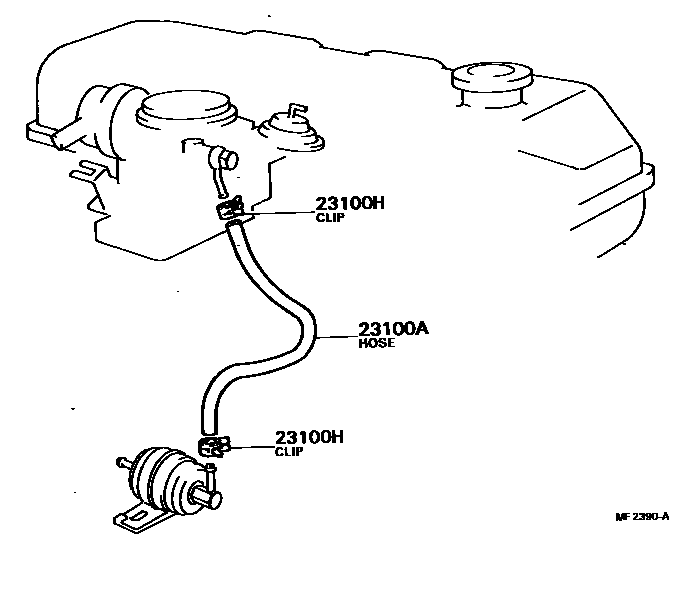

Parts diagram
23100AHOSE, FUEL
main95332-08030i197911-198008
*H,L=240
sub95333-08030
main95332-08030i198008-198204
*H,L=260
sub95333-08030
main95335-08046i197708-197911
L=420
sub95336-08070
23100HCLIP(FOR FUEL HOSE)
main96132-30600i197911-198008
PIPE SIDE
sub96132-51100
main96132-30600i198008-198204
PUMP SIDE
sub96132-51100
main96132-30800i197708-198008
FILTER TO PUMP SIDE
sub96132-51300
main96132-30800i198008-198204
FILTER SIDE
sub96132-51300
