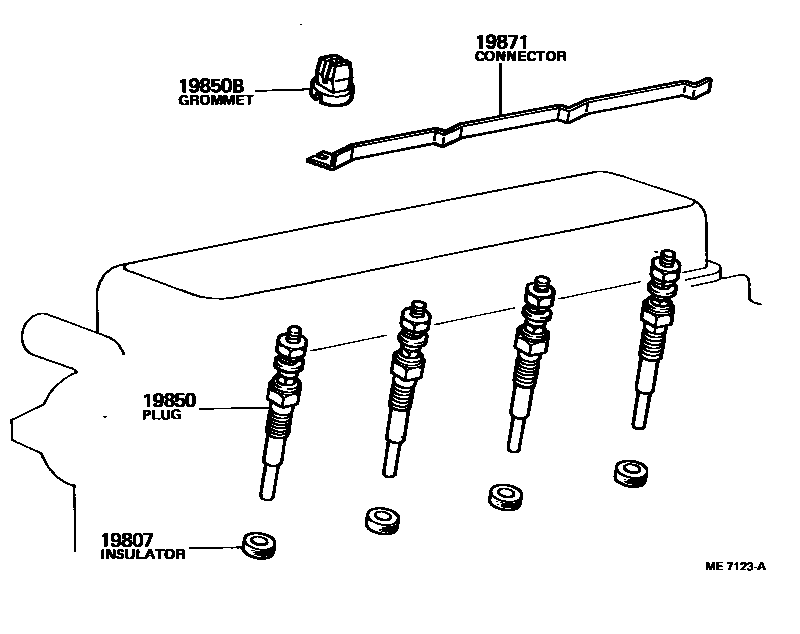

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1 0003 1

19807INSULATOR SUB-ASSY, GLOW PLUG, NO.1

main19877-56010i2B..BB1#197708-198204

19850PLUG ASSY, GLOW

main19850-56012i2B..BB1#197708-198008

main19850-68040i2B..BB11198008-198204

24V

19850BGROMMET, SCREW(FOR GLOW PLUG)

main90189-04024i2B..BB11198008-198204

main90189-05011i2B..BB11197911-198008

main90189-06004i2B..BB10197708-197911

19871CONNECTOR, GLOW PLUG NO.1

main19871-56010i2B..BB1#197708-198008

sub19871-56020

main19871-56020i2B..BB11198008-198204

4 parts on this diagram · 3 diagrams in section
