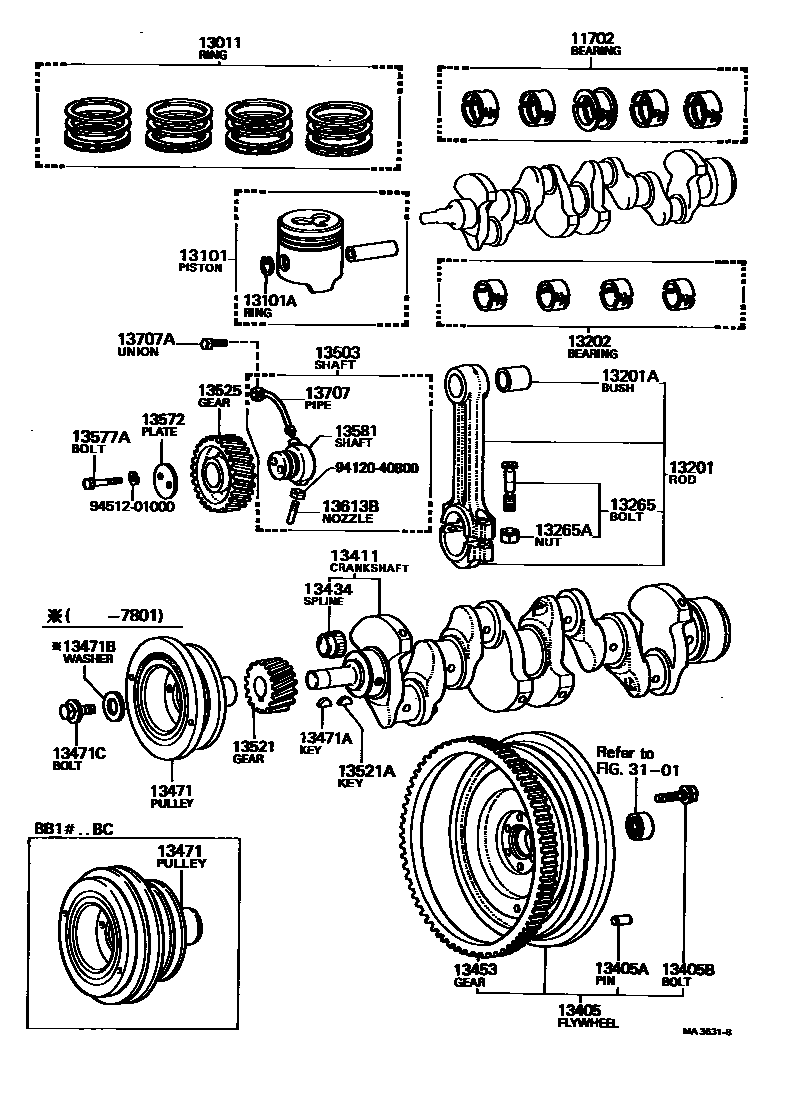

CRANKSHAFT & PISTON

0001 1 0002 1 0003 1

11702BEARING SET, CRANKSHAFT

main11702-38010i20R,22R..RB1#197708-198203

main11702-38011i22R..RB13198203-198204

main11702-56010i2B..BB1#197708-198204

main11704-38010i20R,22R..RB1#197708-198203

main11704-38011i22R..RB13198203-198204

main11704-56010i2B..BB1#197708-198204

main11705-56010i2B..BB1#197708-198204

main11707-56010i2B..BB1#197708-198204

13011RING SET, PISTON

main13011-35020i22R..RB13198008-198204

main13011-38020i20R..RB11197708-197808

sub13011-34030

main13011-38060i20R..RB1#197808-198008

main13011-57010i2B..BB1#197708-198204

STD

main13013-35020i22R..RB13198008-198204

main13013-38010i20R..RB11197708-197808

sub13013-34030

main13013-38040i20R..RB1#197808-198008

main13015-35020i22R..RB13198008-198204

main13015-38010i20R..RB11197708-197808

sub13015-34030

main13015-38040i20R..RB1#197808-198008

13101PISTON SUB-ASSY, W/PIN

main13101-35010×4i22R..RB13198008-198204

sub13101-35020

main13101-38020×4i20R..RB11197708-197808

main13101-38050×4i20R..RB1#197808-198008

main13101-57011×4i2B..BB1#197708-198008

STD

main13101-57020×4i2B..BB11198008-198204

STD

main13103-35020×4i22R..RB13198008-198204

sub13103-35030

main13103-38020×4i20R..RB11197708-197808

main13103-38050×4i20R..RB1#197808-198008

main13105-35020×4i22R..RB13198008-198204

sub13105-35030

main13105-38020×4i20R..RB11197708-197808

main13105-38050×4i20R..RB1#197808-198008

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90521-25105×8i20R,22R..RB1#197708-198204

main90521-33130×8i2B..BB1#197708-198204

13201ROD SUB-ASSY, CONNECTING

main13201-38011×4i20R,22R..RB1#197708-198204

sub13201-35020

main13201-56010×4i2B..BB1#197708-198008

main13201-56020×4i2B..BB11198008-198204

sub13201-59045

13201ABUSH(FOR CONNECTING ROD SMALL END)

main90999-73065×4i2B..BB1#197708-198204

sub90999-73121

main90999-73072i20R,22R..RB1#197708-198204

13202BEARING SET, CONNECTING ROD

main13202-38011i20R,22R..RB1#197708-198204

sub13041-35030

main13202-56010i2B..BB1#197708-198204

STD

main13204-38011i20R,22R..RB1#197708-198204

sub13204-35040

main13204-56010i2B..BB1#197708-198204

U/S 0.25

main13205-56010i2B..BB1#197708-198204

U/S 0.50

main13207-56010i2B..BB1#197708-198204

U/S 1.00

13265BOLT, CONNECTING ROD

main13265-39025×8i20R,22R..RB1#197708-198204

main13265-59015×8i2B..BB1#197708-198204

13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)

main90170-10198×8i20R,22R..RB1#197708-198204

main90170-11112×8i2B..BB1#197708-198204

sub90170-11008

13405FLYWHEEL SUB-ASSY

main13405-39105i20R..RB11197708-197801

N=115

main13405-39106i20R,22R..RB1#197801-198204

N=115

sub13405-35030

main13405-59025i2B..BB1#197708-198008

N=110

main13405-59055i2B..BB11198008-198204

N=110

sub13405-56031

sub90105-13004

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08054×3i20R,22R..RB1#197708-198204

main90250-10192×3i2B..BB1#197708-198204

13405BBOLT, FLYWHEEL SETTING

main90105-12039×6i2B..BB1#197708-198008

*12-1.25PX32-22

main90105-13002×6i2B..BB11198008-198204

*13-1.5PX32-22

main90913-01011×6i20R,22R..RB1#197708-198204

*11-1.25PX26-18

13411CRANKSHAFT

main13401-56010i2B..BB10197708-197811

main13401-56011i2B..BB1#197811-198008

sub13401-56012

sub90561-50001

main13401-56020i2B..BB11198008-198204

sub13401-56021

sub90561-50001

main13411-38010i20R,22R..RB1#197708-198204

13434SPLINE, OIL PUMP DRIVE

main13434-38010i20R,22R..RB1#197708-198204

N=42

main13434-56011i2B..BB10197811-198008

13453GEAR, FLYWHEEL RING

main13453-20010i20R,22R..RB1#197708-198204

N=115

main13453-56020i2B..BB1#197708-198204

N=110

sub13453-56021

13471PULLEY, CRANKSHAFT

main13408-38020i20R,22R..RB1#197905-198204

main13470-56020i2B..BB10..DLX,STD197708-197911

main13470-56060i2B..BB11..DLX,STD197911-198008

main13470-56100i2B..BB11..DLX,STD198008-198110

main13470-56101i2B..BB11..DLX,STD198110-198204

sub13470-56170

main13470-57010i2B..BB10..DLX,STD197708-197911

24V 40A ALTERNATOR

main13470-57011i2B..BB11..DLX,STD197911-198008

24V 40A ALTERNATOR

main13470-57020i2B..BB11..DLX,STD198008-198204

24V 40A ALTERNATOR

main13471-38030i20R..RB11197708-197905

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main90280-05010i2B..BB1#197708-198008

main95161-10416i2B..BB11198008-198204

13471BWASHER, PLATE(FOR CRANKSHAFT PULLEY SET)

main90209-32037i2B..BB10197708-197801

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90105-14004i20R,22R..RB1#197709-198204

main90105-14048i20R..RB11197708-197709

main90105-16003i2B..BB1#197708-198204

13503SHAFT SUB-ASSY, IDLE GEAR

main13504-56010i2B..BB1#197708-198008

main13504-56020i2B..BB11198008-198204

sub13504-58010

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-38010i20R,22R..RB1#197708-198204

N=18

main13521-56020i2B..BB1#197708-198204

N=22

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main90280-05010i2B..BB1#197708-198008

main95161-10519i2B..BB11198008-198204

13525GEAR, IDLE, NO.1

main13525-56010i2B..BB1#197708-198204

N=35

13572PLATE, IDLE GEAR THRUST

main13572-56010i2B..BB1#197708-198204

sub13572-56020

13577ABOLT, HEXAGON(FOR IDLE GEAR BOLT LOCK)

main90101-10031×2i2B..BB1#197708-198008

main90119-10208×2i2B..BB11198008-198204

13581SHAFT, IDLE GEAR, NO.1

main13581-56020i2B..BB10197708-197807

13613BNOZZLE, TIMING GEAR OIL

main90915-01011i2B..BB1#197708-198008

13707PIPE SUB-ASSY, OIL, NO.1

main15707-56010i2B..BB10197708-197807

13707AUNION(FOR OIL PIPE, NO.1)

main90044-01010i2B..BB1#197812-198204

main90401-10007i2B..BB10197708-197812

3101

9412040800

main94120-40800

9451201000

main94512-01000

32 parts on this diagram · 3 diagrams in section
