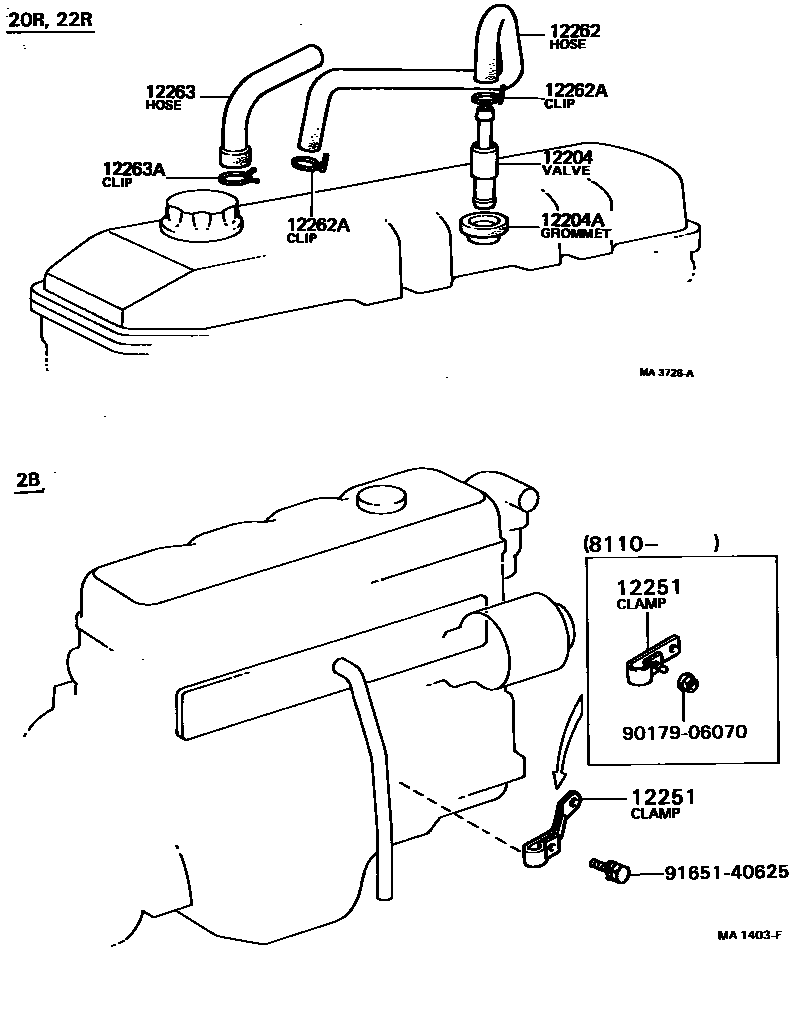

VENTILATION HOSE

12204VALVE SUB-ASSY, VENTILATION

main12204-31020i20R..RB11197708-197911

main12204-35010i22R..RB13198008-198204

main12204-45010i20R..RB12197911-198008

12204AGROMMET(FOR VENTILATION SYSTEM)

main90480-18180i20R,22R..RB1#197708-198204

12251CLAMP, VENTILATION TUBE

main12251-56020i2B..BB1#197708-198008

main12251-56030i2B..BB11198008-198110

sub12251-56031

sub90179-06070

main12251-56031i2B..BB11198110-198204

12262HOSE, VENTILATION, NO.2

main12261-38011i20R,22R..RB1#197708-198204

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-16010i20R,22R..RB1#197708-198204

ID=16

12263HOSE, VENTILATION, NO.3

main12262-38010i20R,22R..RB1#197708-198204

12263ACLIP(FOR VENTILATION HOSE)

main90467-20020i20R,22R..RB1#197708-198204

ID=20

9017906070

main90179-06070

9165140625

main91651-40625

9 parts on this diagram · 1 diagram in section
