CYLINDER HEAD

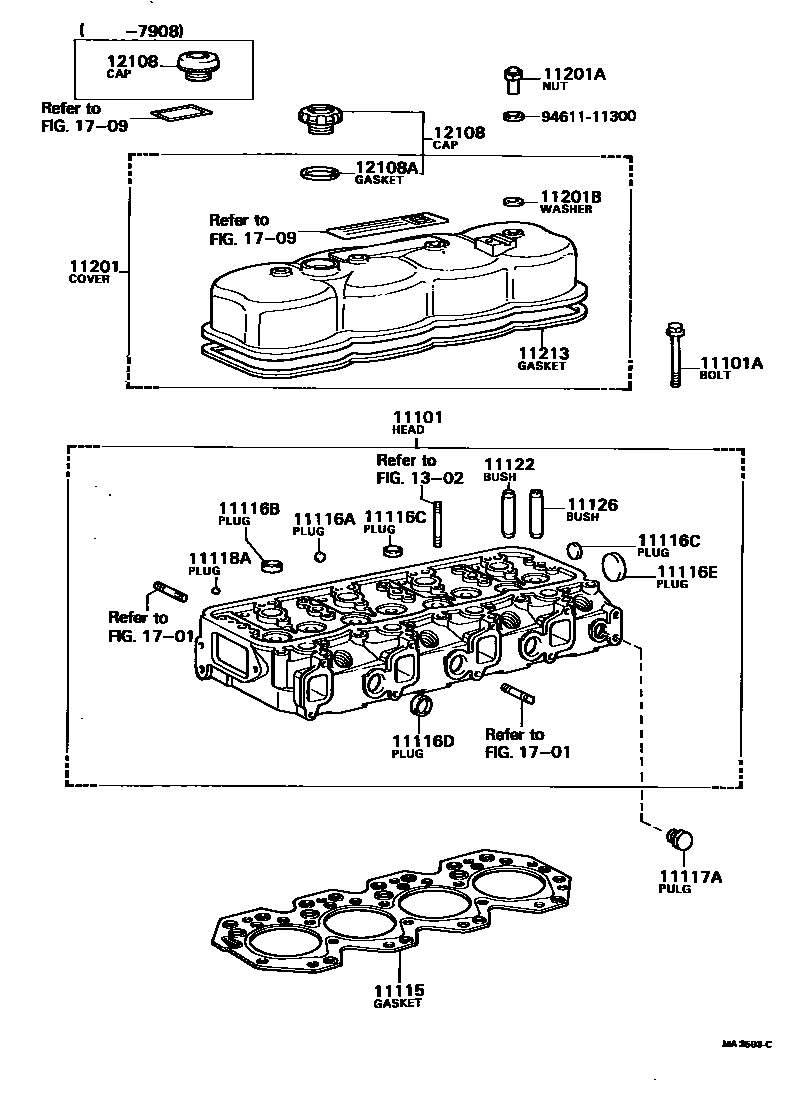

Parts diagram
11101HEAD SUB-ASSY, CYLINDER
main11101-39375i197708-197808
sub11101-39376
main11101-39376i197808-198008
sub11101-38043
sub11181-35020
sub11181-35030
sub11182-35010
main11101-39415i198008-198204
sub11101-35030
sub11181-35020
sub11181-35030
sub11182-35010
sub25612-37010
main11101-59045i197708-198008
sub11101-59046
main11101-59105i198008-198110
sub11101-59106
main11101-59106i198110-198204
sub11101-56032
sub90116-08123
sub90116-10048
sub90345-54005
sub92132-60822
sub94184-61000
11101ABOLT(FOR CYLINDER HEAD SET)
main90910-02046i197708-198204
*12-1.25PX119-25
main90910-02058i197708-198204
*12-1.25PX166.5-21
11115GASKET, CYLINDER HEAD
main11115-35010i198008-198204
sub11115-35030
main11115-38012i197708-197808
sub11115-38013
main11115-38013i197808-198008
sub11115-38014
main11115-56010i197708-198008
sub11115-56011
main11115-56020i198008-198204
sub11115-56021
11116APLUG, TIGHT, NO.1
main90331-11001i197708-198008
OD=10.5
main96411-11200i198008-198204
OD=12
sub96411-41200
11116BPLUG, TIGHT, NO.2
main96411-12500i197708-198204
OD=25
sub96411-42500
11116CPLUG, TIGHT, NO.3
main90331-21001i197804-198204
OD=21
main90331-21039i197708-197804
OD=21
11116DPLUG, TIGHT, NO.4
main96411-12800i197708-198204
OD=28
sub96411-42800
11116EPLUG, TIGHT, NO.5
main90331-40024i197708-198204
OD=40
sub96411-44000
11117APLUG, W/HEAD TAPER SCREW, NO.1
main90341-32070i197708-198204
main90345-54002i197805-198008
main90345-54005i198008-198204
main90345-54021i197708-197805
11118APLUG, STRAIGHT, NO.1
main90043-34024i197911-198008
main90334-07020i197708-197911
L=3.5,OD=6.7
sub90334-08004
11122BUSH, INTAKE VALVE GUIDE
main11122-38021i197708-198204
main11122-56020i197708-198204
sub11122-56021
main11123-38021i197708-198204
11126BUSH, EXHAUST VALVE GUIDE
main11122-38021i197708-198204
main11122-56020i197708-198204
sub11122-56021
main11123-38021i197708-198204
11201COVER SUB-ASSY, CYLINDER HEAD
main11201-39185i197708-198008
sub11201-35020
main11201-39235i198008-198204
sub11201-35020
main11211-59025i197708-197806
sub11211-59026
main11211-59026i197806-197904
sub11211-59027
main11211-59027i197904-197908
sub11211-59036
main11211-59036i197908-198008
sub11211-59037
main11211-59045i198008-198204
sub11211-56031
sub11213-56012
sub11278-77010
sub11293-56012
sub11293-56040
sub11293-57010
sub11293-57030
sub11293-58010
sub12180-70010
sub90210-12001
11201ANUT, CAP(FOR CYLINDER HEAD COVER)
main11295-46010i197708-198204
main90176-08007i197708-198204
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
main90210-08002i197708-198204
main90210-12001i198008-198204
main90210-12002i197708-198008
11213GASKET, CYLINDER HEAD COVER
main11213-38010i197708-198204
sub11213-35010
main11213-56010i197708-197806
sub11213-56011
main11213-56011i197806-198204
sub11213-56012
12108CAP SUB-ASSY, OIL FILLER
main12180-13010i197908-198204
main12181-12903i197708-197809
sub12181-12904
main12181-12904i197809-197908
sub12180-13010
main12181-31020i197708-197908
12108AGASKET(FOR OIL FILLER CAP)
main90430-37140i197708-198204
1302
1701
1709
9461111300
main94611-11300

22 parts on this diagram · 3 diagrams in section
