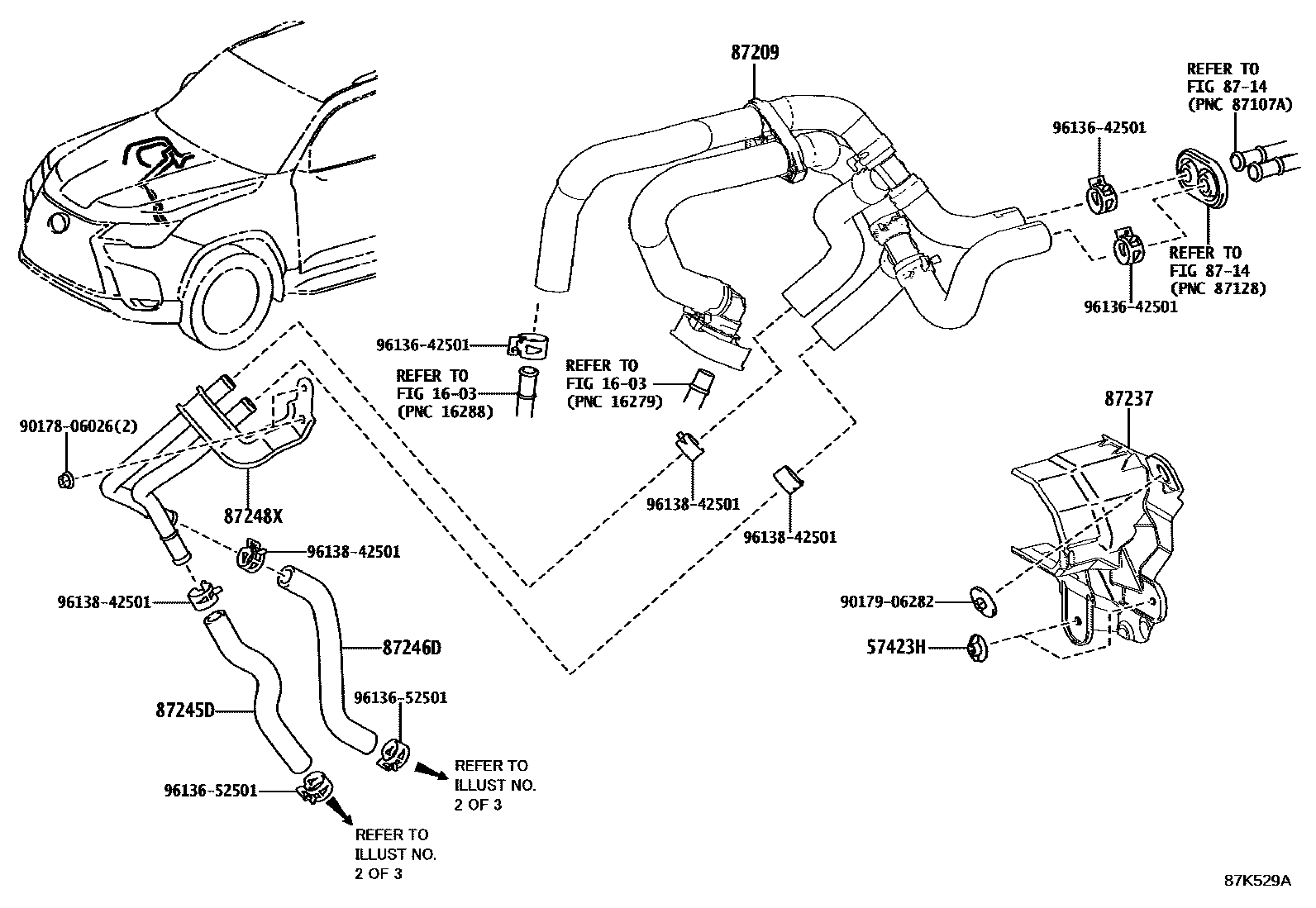

HEATING & AIR CONDITIONING - WATER PIPING

0001 1���� 0002 1�� NO.1 0003 1�� NO.2

1603

57423HCLAMP, HEATER COVER

main57423-26010iVJA310202112-202411

8714

87209HOSE SUB-ASSY, WATER

main87209-60L80iVJA310202112-202411

87237COVER, HEATER PIPING

main87237-60020iVJA310202112-202411

87245DHOSE, HEATER WATER, INLET D

main87242-60050iVJA310202112-202411

87246DHOSE, HEATER WATER, OUTLET D

main87242-60060iVJA310202112-202411

87248XPIPE, HEATER WATER

main87248-60C60iVJA310202112-202411

9017806026

main90178-06026

9017906282

main90179-06282

9613642501

main96136-42501

9613652501

main96136-52501

9613842501

main96138-42501

13 parts on this diagram · 3 diagrams in section
