SWITCH & RELAY & COMPUTER

0001 1����� & ��������� 0002 1�������� 0003 1�������� �������� 0004 1��� 0005 1������������ 0006 1����� ����� 1/2 0007 1����� ����� 2/2 0008 1������� 0009 1���� ��� 0010 1���� ��� (EXECUTIVE) 0011 1�� NO.1 ��� 0012 1�� NO.1 ��� (EXECUTIVE) 0013 1��� & ��� 0014 1��� & ������� 0015 1��� & ������� 0016 1�� �������� 0017 1�� ��������

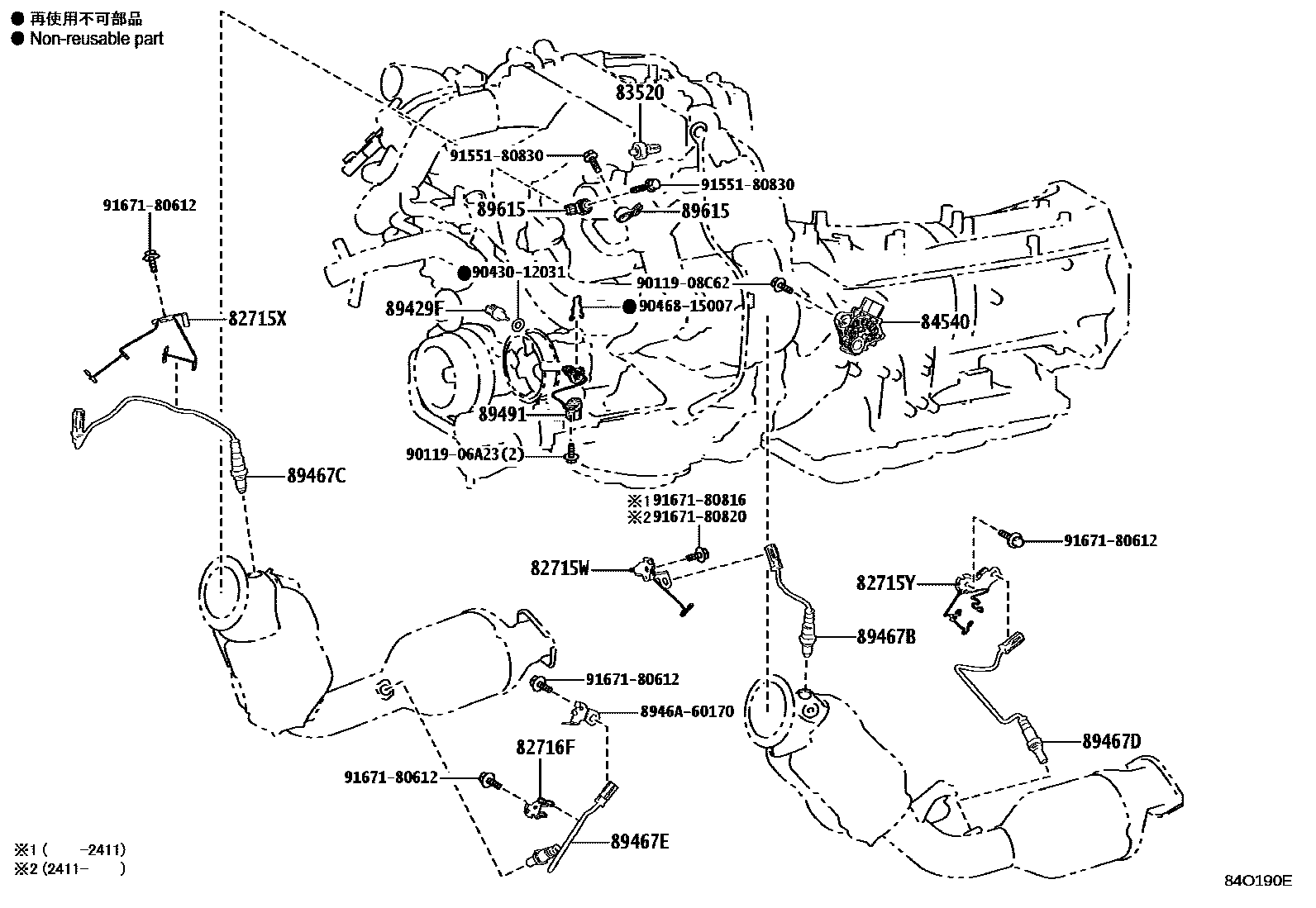

82715BRACKET,WIRING HARNESS CLAMP

main82715-6AJ60iVJA310202112-202411

82715WBRACKET, WIRING HARNESS CLAMP

main8946A-60120iVJA310202112-202411

82715XBRACKET, WIRING HARNESS CLAMP, NO.2

main8946A-60130iVJA310202112-202411

82715YBRACKET, WIRING HARNESS CLAMP, NO.3

main8946A-60140iVJA310202112-202411

82716FBRACKET, WIRING HARNESS CLAMP, NO.4

main8946A-60160iVJA310202112-202411

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-60070iVJA310202112-202411

84540SWITCH ASSY, NEUTRAL START

main84540-60070iVJA310202112-202411

89429FSENSOR, TEMPERATURE

main89429-12010iVJA310202112-202411

89467BSENSOR, AIR FUEL RATIO

main89467-60180iVJA310202112-202411

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-60190iVJA310202112-202411

89467DSENSOR, AIR FUEL RATIO, NO.3

main89467-60200iVJA310202112-202411

89467ESENSOR, AIR FUEL RATIO, NO.4

main89467-60210iVJA310202112-202411

89491SENSOR, ENGINE OIL LEVEL

main89491-50081iVJA310202112-202204

sub89491-50082

main89491-50082iVJA310202205-202411

89615SENSOR, KNOCK CONTROL

main89615-20090iVJA310202112-202411

8946A60170BRACKET, EXHAUST SENSOR CLAMP

main8946A-60170

9011906A23

main90119-06A23

9011908C62

main90119-08C62

9043012031

main90430-12031

9046815007

main90468-15007

9155180830

main91551-80830

9167180612

main91671-80612

9167180816

main91671-80816

9167180820

main91671-80820

23 parts on this diagram · 17 diagrams in section
