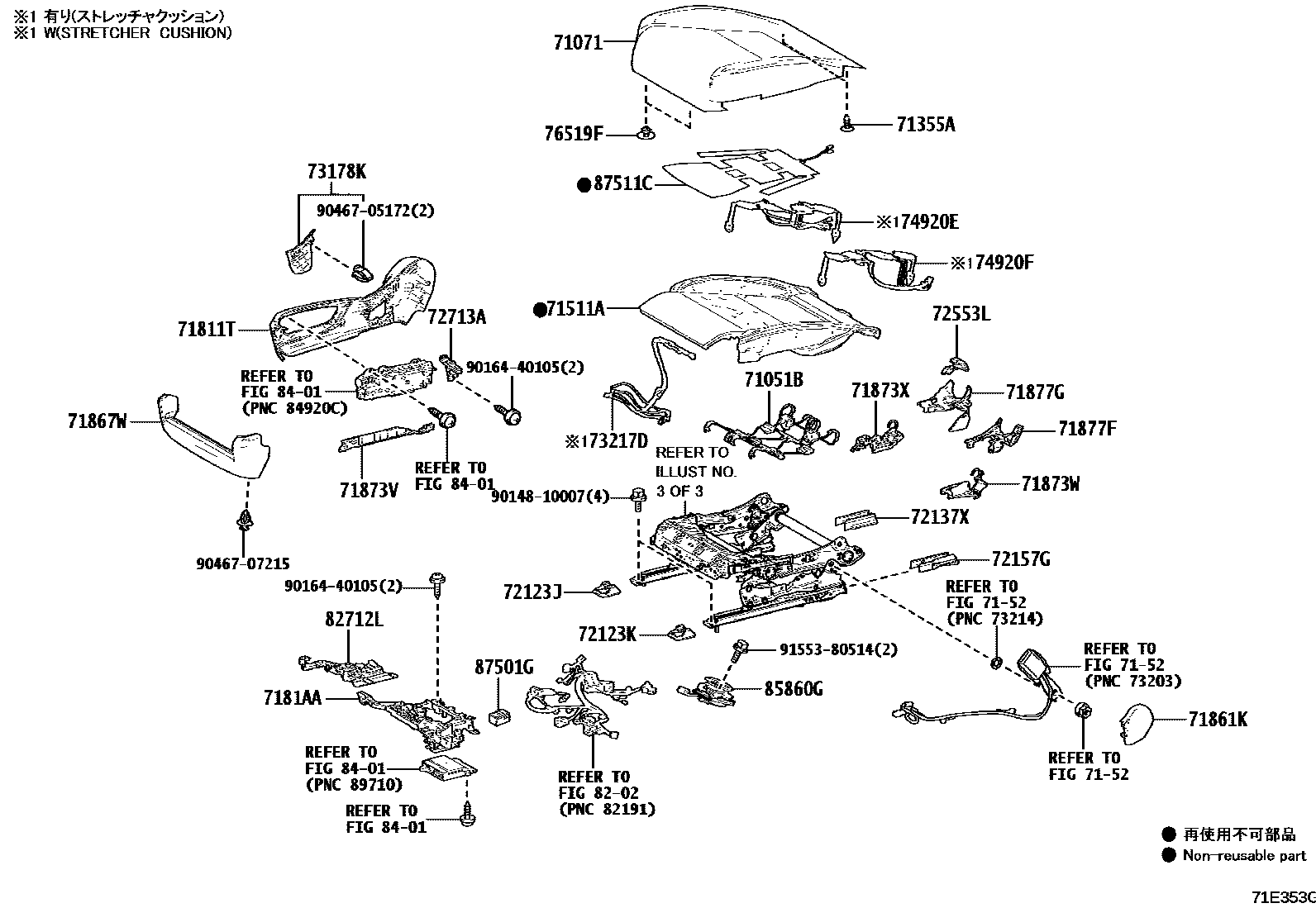

FRONT SEAT & SEAT TRACK
71051BSPRING SUB-ASSY, FRONT SEAT CUSHION, RH
71071COVER SUB-ASSY, FRONT SEAT CUSHION, RH
WHITE,TRIM0#
BLACK,TRIM2#
RED,TRIM31
CRIMSON,TRIM30
HAZEL,TRIM4#
71355ACLIP
71511APAD, FRONT SEAT CUSHION, RH
7152
71811TSHIELD, FRONT SEAT CUSHION, RH
BLACK,TRIM0#,2#,3#,4#
7181AAHOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH
71861KSHIELD, FRONT SEAT CUSHION, INNER RH
71867WSHIELD, FRONT SEAT CUSHION, FRONT RH
BLACK,TRIM0#,2#,3#,4#
71873VSHIELD, FRONT SEAT CUSHION, LOWER RH
71873WSHIELD, FRONT SEAT CUSHION, LOWER RH, OUTER
71873XSHIELD, FRONT SEAT CUSHION, LOWER RH, INNER
71877FCOVER, RECLINING ADJUSTER INSIDE, RH(FOR RH SEAT)
BLACK,TRIM0#,2#,3#,4#
71877GCOVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEAT)
BLACK,TRIM0#,2#,3#,4#
72123JCOVER, SEAT TRACK BRACKET, OUTER FRONT RH
72123KCOVER, SEAT TRACK BRACKET, INNER FRONT RH
72137XCOVER, SEAT TRACK BRACKET, OUTER REAR RH
BLACK,TRIM0#,2#,3#,4#
72157GCOVER, SEAT TRACK BRACKET, INNER REAR RH
BLACK,TRIM0#,2#,3#,4#
72553LPROTECTOR, RECLINING COVER, RH
72713ABRACKET, SEAT ADJUSTER SHIELD CLAMP, RH
73178KCAP, SEAT BELT ANCHOR COVER, RH
BLACK,TRIM0#,2#,3#,4#
73217DTUBE, ADJUSTER, RH
74920ECUSHION ASSY, MAIN STRETCHER, RH NO.1(FOR SEAT CUSHION)
74920FCUSHION ASSY, MAIN STRETCHER, RH NO.2(FOR SEAT CUSHION)
76519FCLIP, FRONT SEAT CUSHION COVER
8202
8401
85860GBLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, RH
87501GCONTROL SUB-ASSY, SEAT HEATER, RH
87511CHEATER ASSY, FRONT SEAT CUSHION, RH
9014810007
main90148-10007
9016440105
main90164-40105
9046705172
main90467-05172
9046707215
main90467-07215
9155380514
main91553-80514
36 parts on this diagram · 8 diagrams in section
