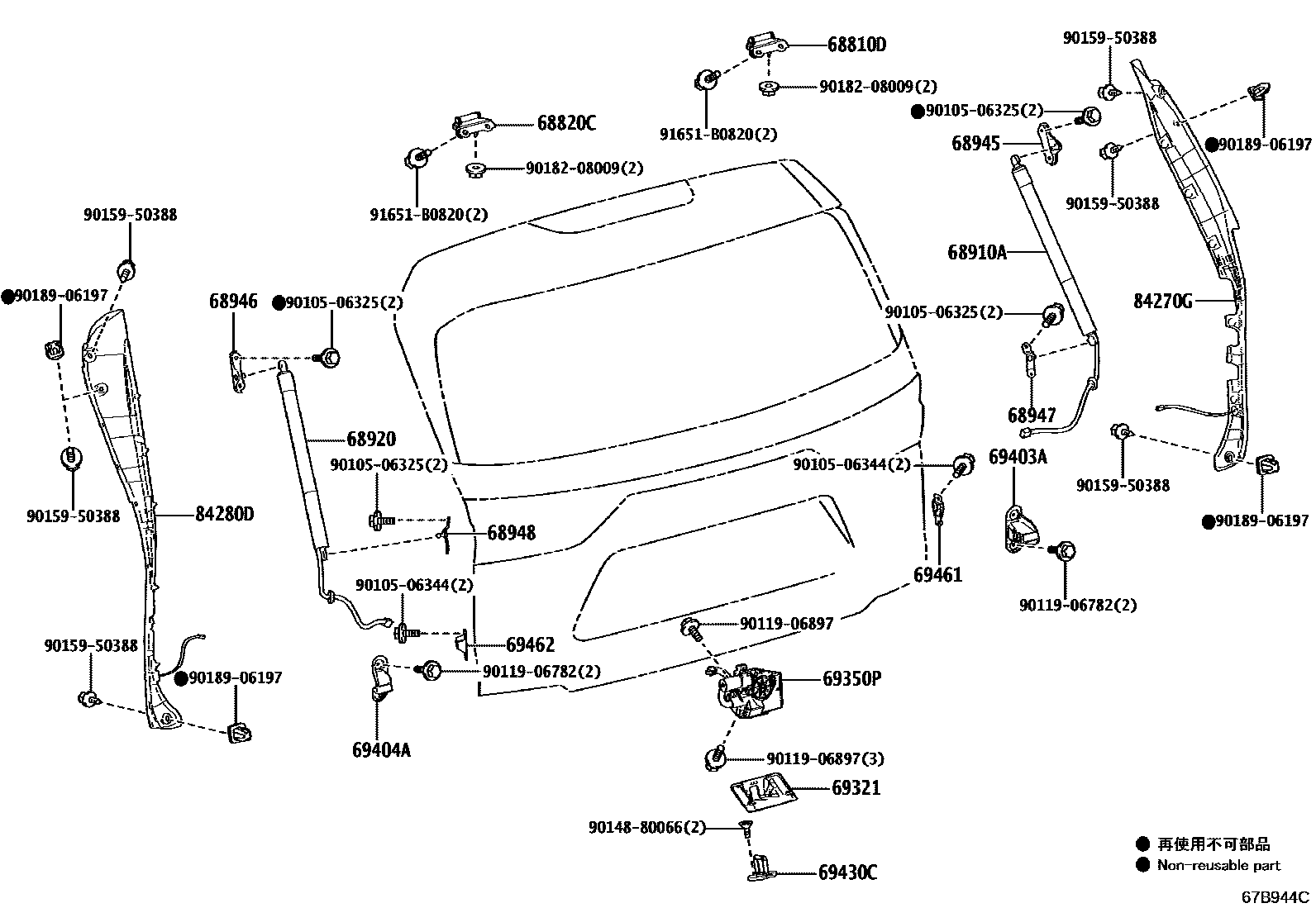

BACK DOOR LOCK & HINGE

68810DHINGE ASSY, BACK DOOR, RH

main68810-60060iVJA310202112-202411

main68810-60070iVJA310202112-202411

main68810-60080iVJA310202112-202411

68820CHINGE ASSY, BACK DOOR, LH

main68810-60060iVJA310202112-202411

main68810-60070iVJA310202112-202411

main68810-60080iVJA310202112-202411

68910AUNIT ASSY SET, POWER BACK DOOR, RH

main68910-60121iVJA310202112-202204

sub68910-60122

main68910-60122iVJA310202205-202411

68920UNIT ASSY SET, POWER BACK DOOR, LH

main68920-60021iVJA310202112-202204

sub68920-60022

main68920-60022iVJA310202205-202411

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-60030iVJA310202112-202411

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-60050iVJA310202112-202411

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-60030iVJA310202112-202411

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-60050iVJA310202112-202411

69321COVER, BACK DOOR LOCK

main69321-60060iVJA310202112-202411

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-42101iVJA310202112-202411

69403ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, RH

main67293-60090iVJA310202112-202411

69404ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, LH

main67294-60030iVJA310202112-202411

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-60080iVJA310202112-202411

69461STOPPER, BACK DOOR SIDE MALE, RH

main67281-60060iVJA310202112-202411

69462STOPPER, BACK DOOR SIDE MALE, LH

main67282-60030iVJA310202112-202411

84270GSENSOR ASSY, POWER BACK DOOR, RH

main84270-60130iVJA310202112-202411

84280DSENSOR ASSY, POWER BACK DOOR, LH

main84280-60070iVJA310202112-202411

9010506325

main90105-06325

9010506344

main90105-06344

9011906782

main90119-06782

9011906897

main90119-06897

9014880066

main90148-80066

9015950388

main90159-50388

9018208009

main90182-08009

9018906197

main90189-06197

91651B0820

main91651-B0820

26 parts on this diagram · 1 diagram in section
