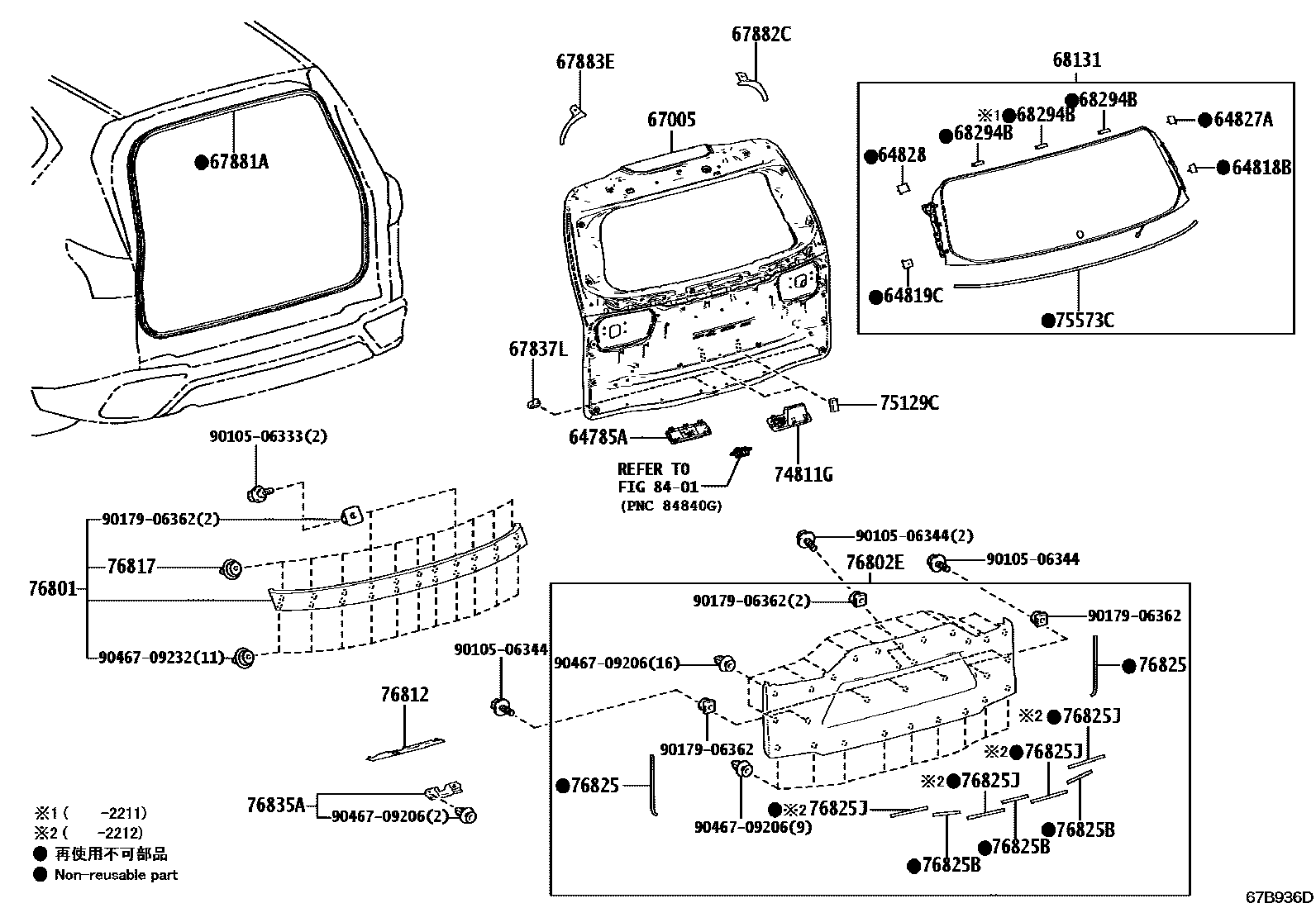

BACK DOOR PANEL & GLASS
64785ABASE, BACK DOOR TRIM
BLACK,TRIM0#,2#,3#,4#
64818BSPACER, BACK DOOR GLASS, NO.1
64819CSPACER, BACK DOOR GLASS, NO.2
64827ACLIP, BACK WINDOW GLASS, RH
64828CLIP, BACK WINDOW GLASS, LH
67005PANEL SUB-ASSY, BACK DOOR
67837LSEAL, DOOR DUST PROOF
67882CWEATHERSTRIP, BACK DOOR, NO.2
67883EWEATHERSTRIP, BACK DOOR, NO.3
68294BDAM, BACK DOOR GLASS ADHESIVE
74811GHANDLE, DOOR PULL
BLACK,TRIM0#,2#,3#,4#
75129CCUSHION, REAR LICENCE PLATE
75573CMOULDING, BACK WINDOW, OUTSIDE
76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
WHITE NOVA GF.,083
SONIC QUARTZ,085
SONIC TITANIUM,1J7
MANGANESE LUSTER,1K2
BLACK,202
GRAPHITE BLACK GF.,223
TERRANE KHAKI M.M.,6X4
76802EGARNISH SUB-ASSY, BACK DOOR, OUTSIDE LOWER
WHITE NOVA GF.,083
SONIC QUARTZ,085
SONIC TITANIUM,1J7
MANGANESE LUSTER,1K2
BLACK,202
GRAPHITE BLACK GF.,223
TERRANE KHAKI M.M.,6X4
76812GARNISH, BACK DOOR, OUTSIDE LOWER
WHITE NOVA GF.,083
SONIC QUARTZ,085
SONIC TITANIUM,1J7
MANGANESE LUSTER,1K2
BLACK,202
GRAPHITE BLACK GF.,223
TERRANE KHAKI M.M.,6X4
76817CLIP, BACK DOOR OUTSIDE GARNISH
76825PROTECTOR, BACK DOOR OUTSIDE GARNISH
76825BPROTECTOR, BACK DOOR OUTSIDE GARNISH
76825JPROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.2
76835APROTECTOR, BACK DOOR FINISH PANEL, NO.1
8401
9010506333
main90105-06333
9010506344
main90105-06344
9017906362
main90179-06362
9046709206
main90467-09206
9046709232
main90467-09232
29 parts on this diagram · 2 diagrams in section
