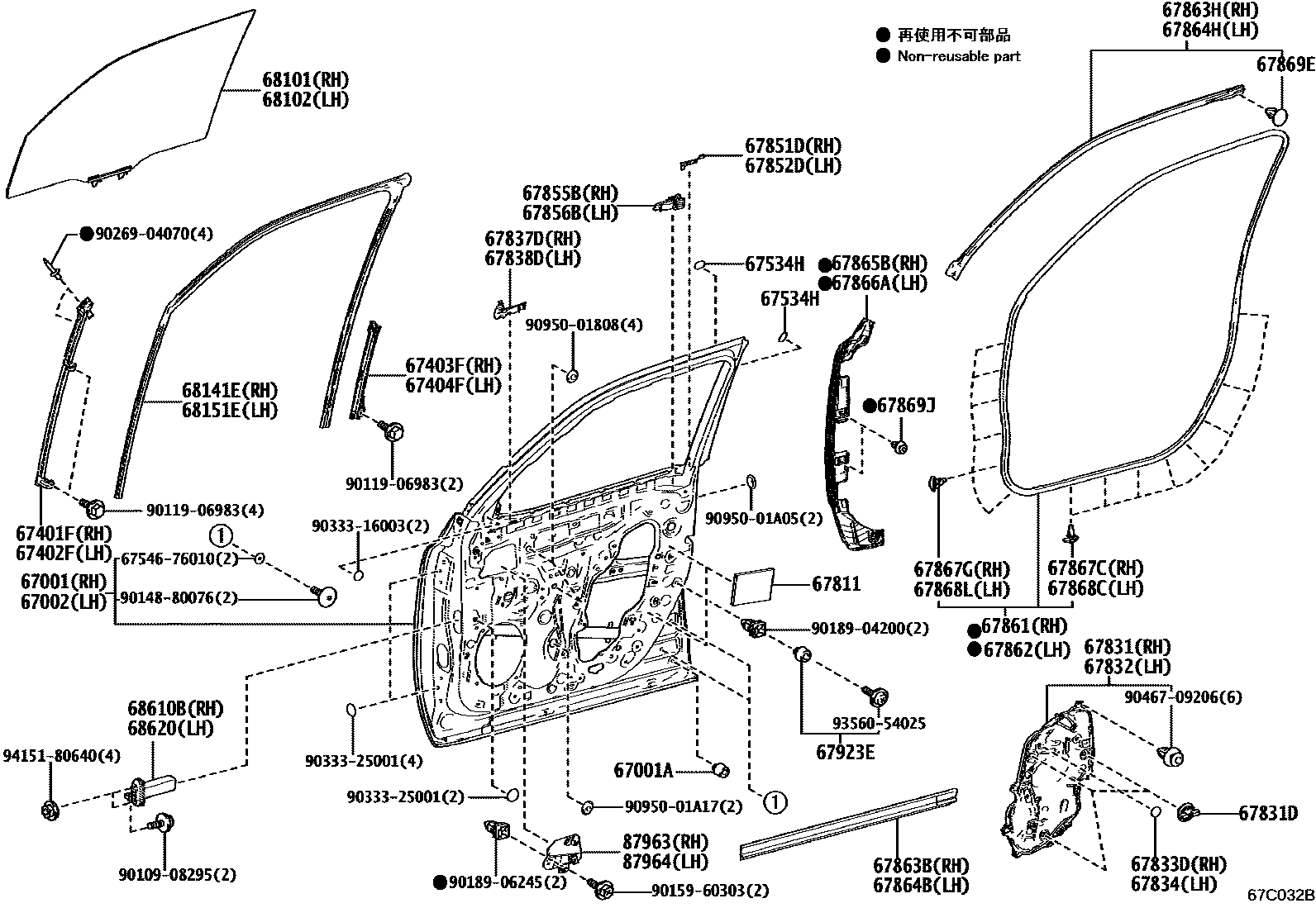

FRONT DOOR PANEL & GLASS

0001 1������� 0002 1������

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-60960iVJA310202112-202411

67001ACUSHION, FRONT DOOR PANEL

main90541-09150iVJA310202112-202411

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-60960iVJA310202112-202411

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-60050iVJA310202112-202411

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-60050iVJA310202112-202411

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-60120iVJA310202112-202411

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-60130iVJA310202112-202411

67534HSEAL, FRONT DOOR UPR GARNISH

main67534-76010iVJA310202112-202411

67811PAD, FRONT DOOR SILENCER

main67816-60070iVJA310202112-202411

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-60210iVJA310202112-202411

67831DCLIP(FOR FRONT DOOR SERVICE HOLE COVER)

main67869-50010iVJA310202112-202411

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-60120iVJA310202112-202411

67833DCOVER, FRONT DOOR SERVICE HOLE, NO.2 RH

main67833-60050iVJA310202112-202411

67834COVER, FRONT DOOR SERVICE HOLE, NO.2 LH

main67833-60050iVJA310202112-202411

67837DSEAL, FRONT DOOR VENT, RH

main67837-60080iVJA310202112-202411

67838DSEAL, FRONT DOOR VENT, LH

main67838-60040iVJA310202112-202411

67851DSEAL, FRONT DOOR REAR OUTSIDE, RH

main67851-60010iVJA310202112-202411

67852DSEAL, FRONT DOOR REAR OUTSIDE, LH

main67852-60010iVJA310202112-202411

67855BPROTECTOR, FRONT DOOR PANEL, RH

main67855-60050iVJA310202112-202411

67856BPROTECTOR, FRONT DOOR PANEL, LH

main67856-60020iVJA310202112-202411

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-60190iVJA310202112-202411

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-60180iVJA310202112-202411

67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH

main62315-60070iVJA310202112-202411

67863HWEATHERSTRIP, FRONT DOOR, NO.2 RH

main67863-60040iVJA310202112-202411

67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH

main62316-60030iVJA310202112-202411

67864HWEATHERSTRIP, FRONT DOOR, NO.2 LH

main67864-60040iVJA310202112-202411

67865BWEATHERSTRIP, FRONT DOOR, NO.3 RH

main67865-60010iVJA310202112-202411

67866AWEATHERSTRIP, FRONT DOOR, NO.3 LH

main67866-60010iVJA310202112-202411

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150iVJA310202112-202411

67867GRETAINER, DOOR WEATHERSTRIP, RH

main67867-50170iVJA310202112-202411

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150iVJA310202112-202411

67868LRETAINER, DOOR WEATHERSTRIP, LH

main67867-50170iVJA310202112-202411

67869ECLIP, FRONT DOOR WEATHERSTRIP

main67869-33030iVJA310202112-202411

67869JCLIP, FRONT DOOR WEATHERSTRIP

main90467-08010iVJA310202112-202411

67923ECUSHION, FRONT DOOR STIFFENER, NO.1

main67923-48060iVJA310202112-202411

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-60810iVJA310202112-202411

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-60810iVJA310202112-202411

68141ERUN, FRONT DOOR GLASS, RH

main68141-60110iVJA310202112-202411

68151ERUN, FRONT DOOR GLASS, LH

main68151-60100iVJA310202112-202411

68610BCHECK ASSY, FRONT DOOR, RH

main68610-60150iVJA310202112-202411

68620CHECK ASSY, FRONT DOOR, LH

main68620-60130iVJA310202112-202411

87963COVER, OUTER MIRROR INSTALL HOLE, RH

main87963-60010iVJA310202112-202411

87964COVER, OUTER MIRROR INSTALL HOLE, LH

main87964-60010iVJA310202112-202411

6754676010CHANNEL, VENT WINDOW DRIP, RH

main67546-76010

9010908295

main90109-08295

9011906983

main90119-06983

9014880076

main90148-80076

9015960303

main90159-60303

9018904200

main90189-04200

9018906245

main90189-06245

9026904070

main90269-04070

9033316003

main90333-16003

9033325001

main90333-25001

9046709206

main90467-09206

9095001808

main90950-01808

9095001A05

main90950-01A05

9095001A17

main90950-01A17

9356054025

main93560-54025

9415180640

main94151-80640

59 parts on this diagram · 2 diagrams in section
