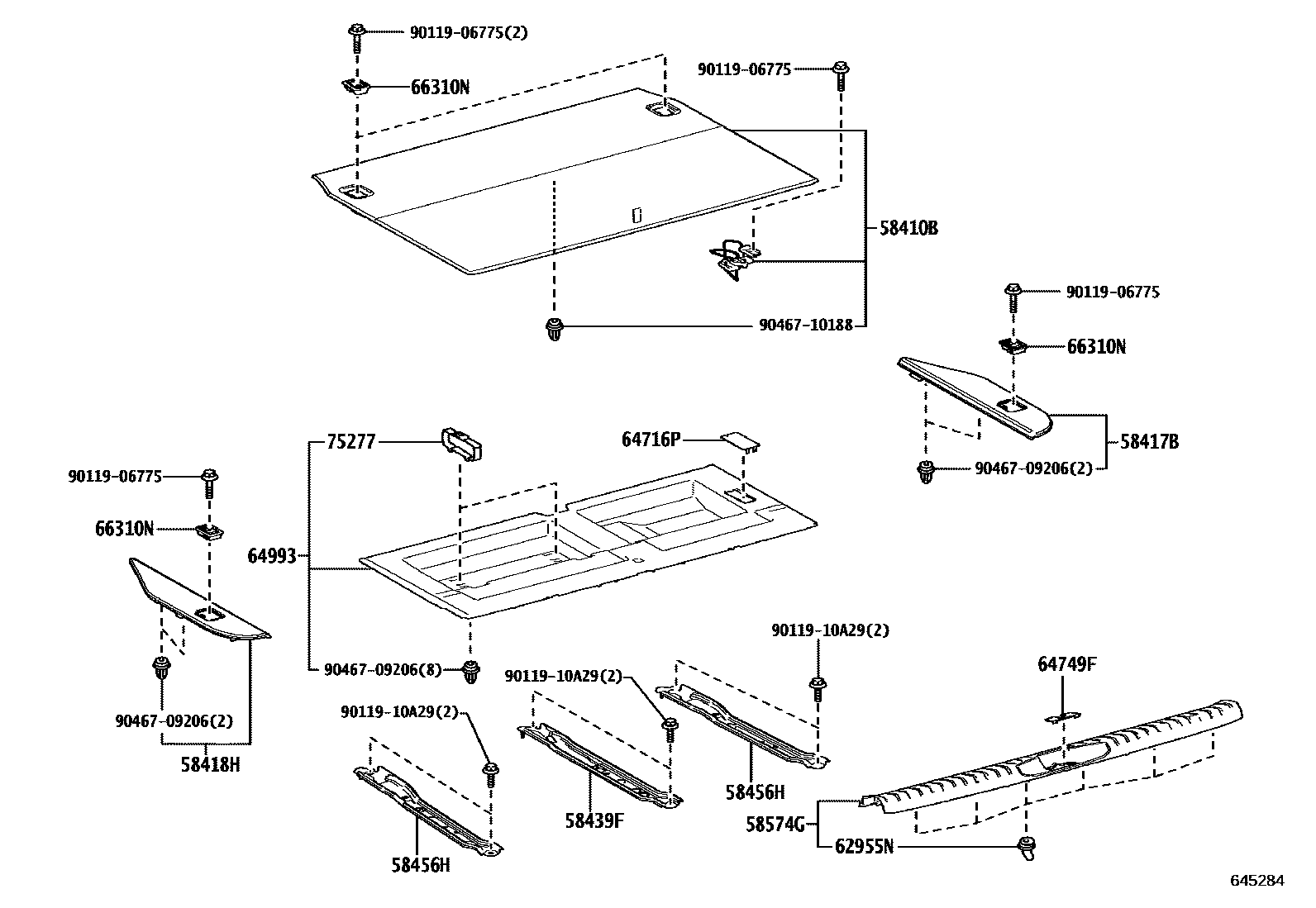

DECK BOARD & DECK TRIM COVER

0001 1��(��NO.2���) 0002 1��(��NO.2���) 0003 1��(��NO.2���)

58410BBOARD ASSY, DECK

main58410-60030-C2iVJA310202112-202411

main58410-60040-C2iVJA310202112-202411

BLACK,TRIM0#,2#,3#,4#

58417BBOARD, REAR FLOOR, REAR RH

main58417-60070-C2iVJA310202112-202411

main58417-60080-C2iVJA310202112-202411

BLACK,TRIM0#,2#,3#,4#

58418HBOARD, REAR FLOOR, REAR LH

main58418-60030-C2iVJA310202112-202411

main58418-60040-C2iVJA310202112-202411

BLACK,TRIM0#,2#,3#,4#

58439FREINFORCEMENT, DECK BOARD BRACKET

main58439-60020iVJA310202112-202201

sub58439-60021

main58439-60021iVJA310202202-202411

58456HBRACKET, DECK FLOOR NO.2

main58456-60020iVJA310202112-202201

sub58456-60021

main58456-60021iVJA310202202-202411

58574GPLATE, REAR FLOOR MAT SUPPORT, REAR

main58574-60150-C0iVJA310202112-202411

main58574-60160-C0iVJA310202112-202411

BLACK,TRIM0#,2#,3#,4#

62955NRETAINER, REAR FLOOR MAT SUPPORT PLATE, NO.1

main62955-60060iVJA310202112-202411

64716PCOVER, DECK TRIM, REAR

main64716-60090iVJA310202112-202411

64749FCOVER, BACK DOOR STRIKER

main64749-60010-C0iVJA310202112-202411

BLACK,TRIM0#,2#,3#,4#

64993BOX, DECK FLOOR, REAR

main64991-60020iVJA310202112-202411

66310NHOOK ASSY, ROPE

main66310-30011-C1iVJA310202112-202411

BLACK,TRIM0#,2#,3#,4#

sub66310-30011

main66310-30011-C1iVJA310202112-202411

sub66310-30011

75277BAND, TOOL, NO.1

main64279-60021iVJA310202112-202411

main64279-60030iVJA310202208-202411

9011906775

main90119-06775

9011910A29

main90119-10A29

9046709206

main90467-09206

9046710188

main90467-10188

16 parts on this diagram · 3 diagrams in section
