INSIDE TRIM BOARD
62111BCLIP(FOR COWL SIDE TRIM)
62111CBOARD, COWL SIDE TRIM, RH
BLACK,TRIM0#,2#,3#,4#
62112BOARD, COWL SIDE TRIM, LH
BLACK,TRIM0#,2#,3#,4#
62117BCLIP, NO.1(FOR COWL SIDE TRIM)
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
62211TCLIP(FOR FRONT PILLAR GARNISH)
62211UGARNISH ASSY, FRONT PILLAR, RH
BLACK,TRIM0#,2#,3#,4#
62212BGARNISH ASSY, FRONT PILLAR, LH
BLACK,TRIM0#,2#,3#,4#
62217HCLIP, CENTER PILLER GARNISH
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62331CWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62332CWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62411GARNISH, CENTER PILLAR, RH
BLACK,TRIM0#,2#,3#,4#
62411FCLIP, CENTER PILLAR GARNISH, RH
62412GARNISH, CENTER PILLAR, LH
BLACK,TRIM0#,2#,3#,4#
62412ECLIP, CENTER PILLAR GARNISH, LH
62413AGARNISH, CENTER PILLAR, LOWER RH
BLACK,TRIM0#,2#,3#,4#
62413CCLIP (FOR CENTER LOWER GARNISH)
62414AGARNISH, CENTER PILLAR, LOWER LH
BLACK,TRIM0#,2#,3#,4#
62430ACLIP, ROOF SIDE RAIL GARNISH
62431BGARNISH, ROOF SIDE RAIL, NO.1 RH
BLACK,TRIM0#,2#,3#,4#
62432BGARNISH, ROOF SIDE RAIL, NO.1 LH
BLACK,TRIM0#,2#,3#,4#
62461HCLIP (FOR ROOF SIDE INNER GARNISH)
62471AGARNISH, ROOF SIDE, INNER RH
BLACK,TRIM0#,2#,3#,4#
62471GCLIP, ROOF SIDE INNER GARNISH
62472AGARNISH, ROOF SIDE, INNER LH
BLACK,TRIM0#,2#,3#,4#
62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1
62581EGARNISH, QUARTER PILLAR, RH
BLACK,TRIM0#,2#,3#,4#
62582EGARNISH, QUARTER PILLAR, LH
BLACK,TRIM0#,2#,3#,4#
62638BCLIP
67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH
BLACK,TRIM0#,2#,3#,4#
67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH
BLACK,TRIM0#,2#,3#,4#
67913BPLATE, FRONT DOOR SCUFF, RH
BLACK,TRIM0#,2#,3#,4#
67914BPLATE, FRONT DOOR SCUFF, LH
BLACK,TRIM0#,2#,3#,4#
67915PLATE, REAR DOOR SCUFF, OUTSIDE RH
BLACK,TRIM0#,2#,3#,4#
67916PLATE, REAR DOOR SCUFF, OUTSIDE LH
BLACK,TRIM0#,2#,3#,4#
67917CPLATE, REAR DOOR SCUFF, RH
BLACK,TRIM0#,2#,3#,4#
67918DPLATE, REAR DOOR SCUFF, LH
BLACK,TRIM0#,2#,3#,4#
7152

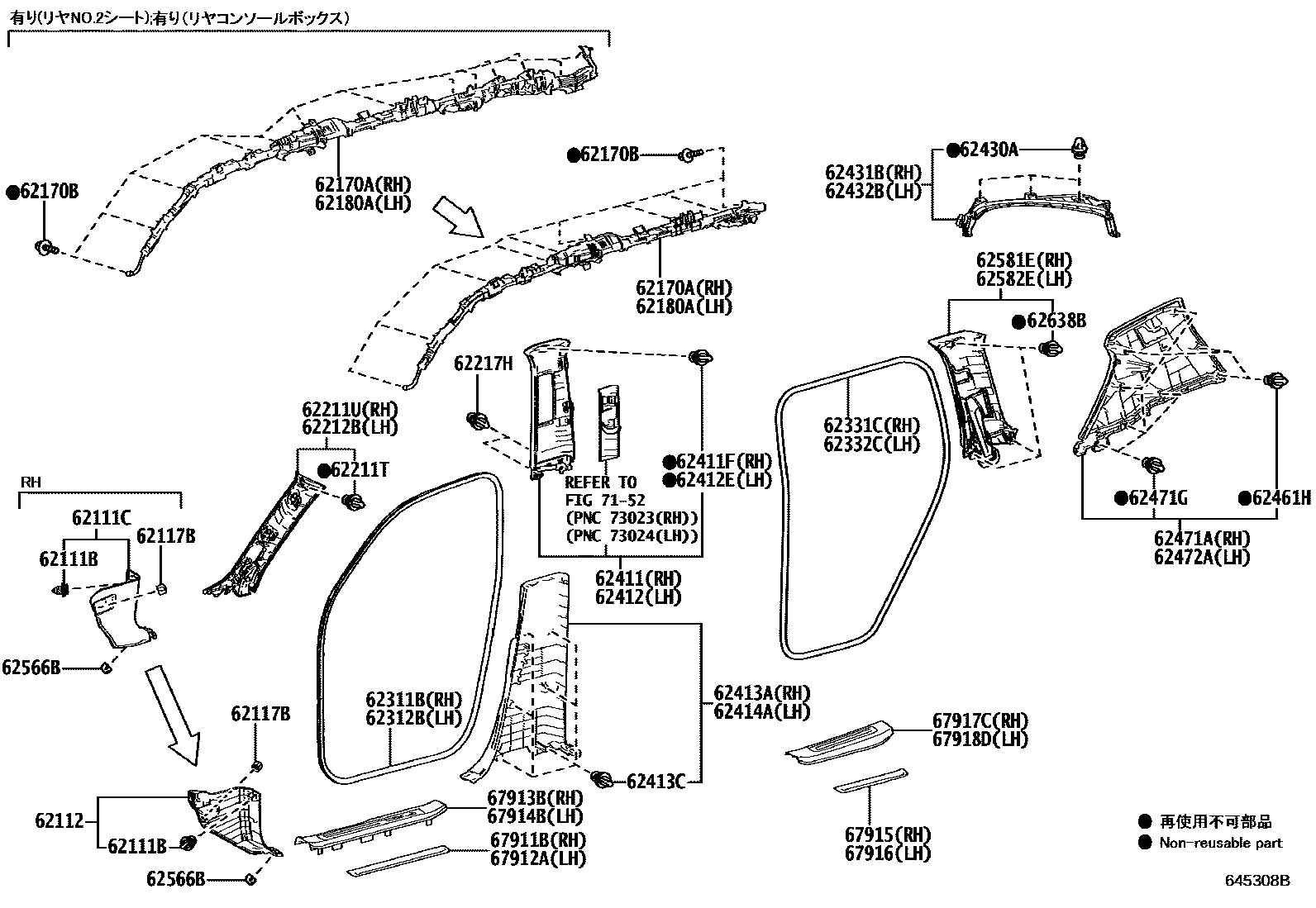

42 parts on this diagram · 5 diagrams in section
