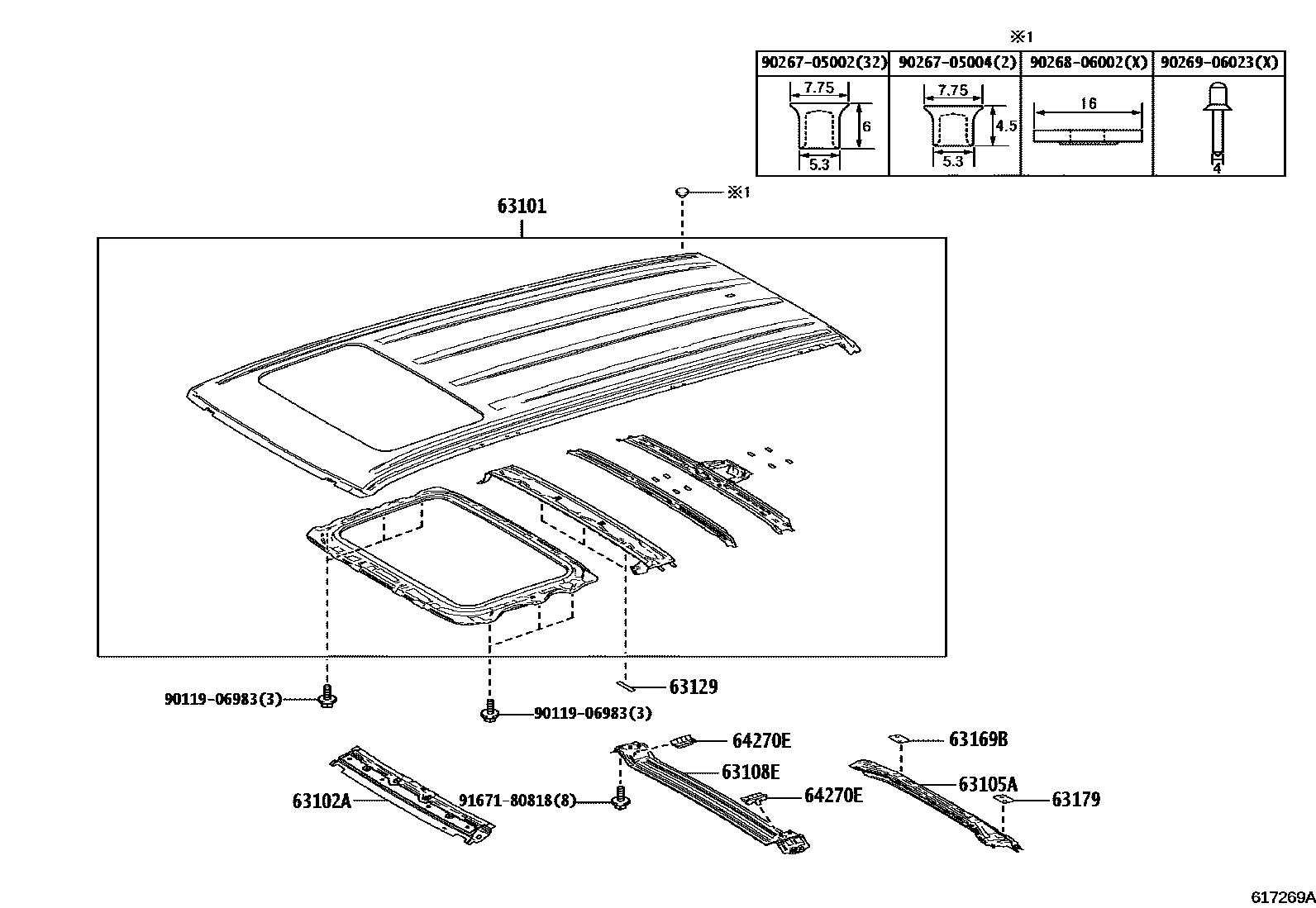

ROOF PANEL & BACK PANEL

0001 1������� 0002 1������ 0003 1������

63101PANEL SUB-ASSY, ROOF

main63101-60D70iVJA310202112-202411

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-60190iVJA310202112-202411

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-60310iVJA310202112-202411

63108EREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.6

main63108-60060iVJA310202112-202411

sub63108-60061

63129PROTECTOR, WINDSHIELD HEADER

main63129-60040iVJA310202112-202411

63169BPLATE, ROOF PANEL REINFORCEMENT, RH

main63169-48010iVJA310202112-202411

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63179-48010iVJA310202112-202411

64270ECLIP

main75396-60060iVJA310202112-202411

9011906983

main90119-06983

9026705002

main90267-05002

9026705004

main90267-05004

9026806002

main90268-06002

9026906023

main90269-06023

9167180818

main91671-80818

14 parts on this diagram · 3 diagrams in section
