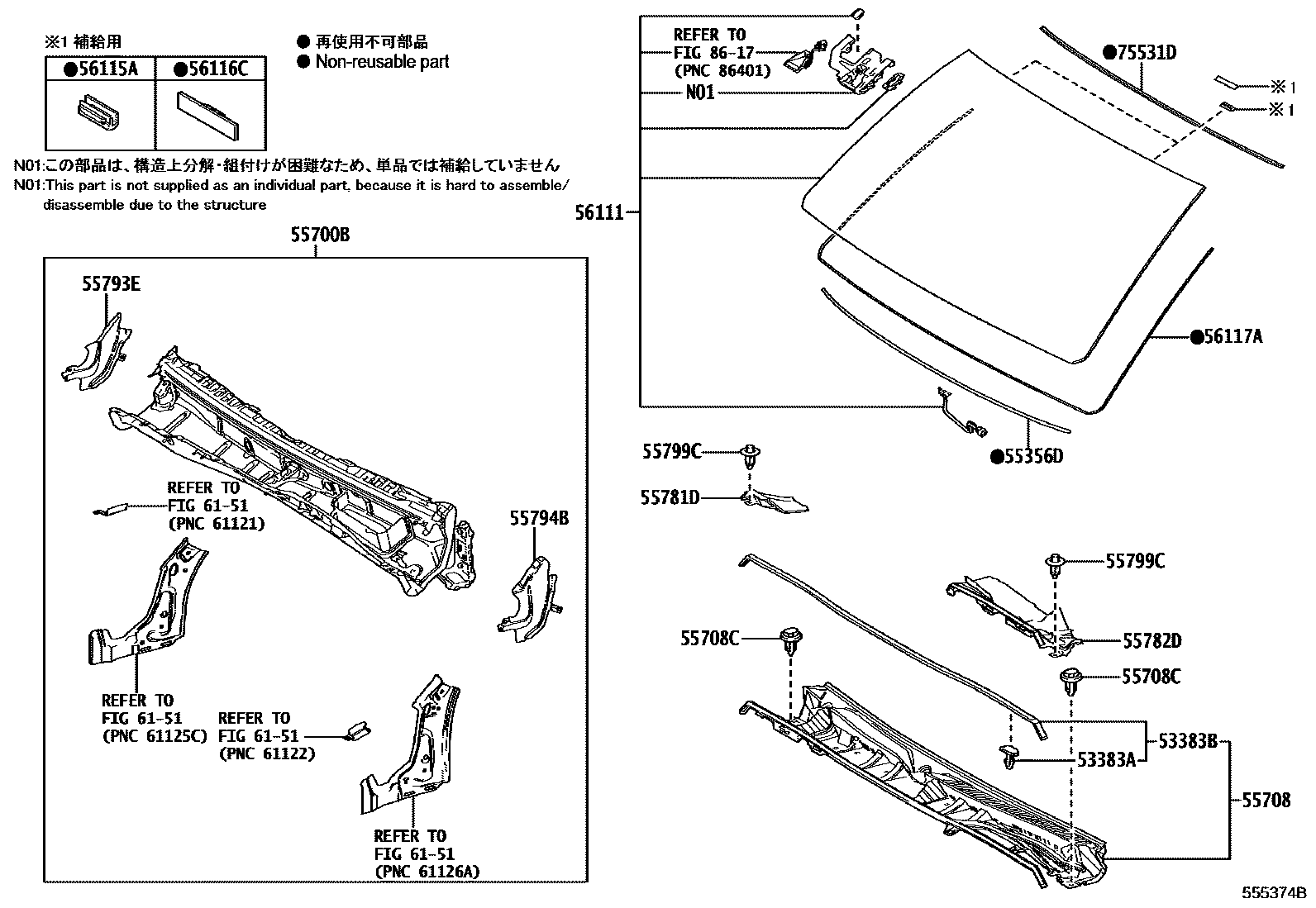

COWL PANEL & WINDSHIELD GLASS

53383ACLIP(FOR HOOD TO COWL TOP SEAL)

main67867-48030iVJA310202112-202411

53383BSEAL, HOOD TO COWL TOP

main53383-60130iVJA310202112-202411

55356DCUSHION, INSTRUMENT PANEL, NO.2

main55355-60240iVJA310202112-202411

55700BCOWL ASSY

main55700-60F90iVJA310202112-202302

sub55700-60F91

main55700-60F91iVJA310202303-202411

55708LOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-60370iVJA310202112-202212

sub55708-60280

main55708-60430iVJA310202401-202411

main55708-60440iVJA310202301-202401

sub55708-60430

55708CCLIP, COWL TOP VENTILATOR LOUVER

main90467-09242iVJA310202112-202411

55781DLOUVER, COWL TOP VENTILATOR, RH

main55784-60141iVJA310202112-202411

55782DLOUVER, COWL TOP VENTILATOR, LH

main55783-60071iVJA310202112-202411

55793ECOVER, COWL REINFORCEMENT, UPPER NO.2 RH

main55793-60040iVJA310202112-202411

55794BCOVER, COWL REINFORCEMENT, UPPER NO.2 LH

main55794-60040iVJA310202112-202411

55799CCLIP, COWL TOP VENTILATOR LOUVER

main90467-07217iVJA310202112-202411

56111GLASS, WINDSHIELD

main56101-6B918iVJA310202112-202411

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-60040iVJA310202112-202411

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iVJA310202112-202411

56117ADAM, WINDOW GLASS ADHESIVE

main56117-64010iVJA310202112-202411

6151

75531DMOULDING, WINDSHIELD, OUTSIDE UPPER

main75531-60090iVJA310202112-202411

8617

18 parts on this diagram · 1 diagram in section
