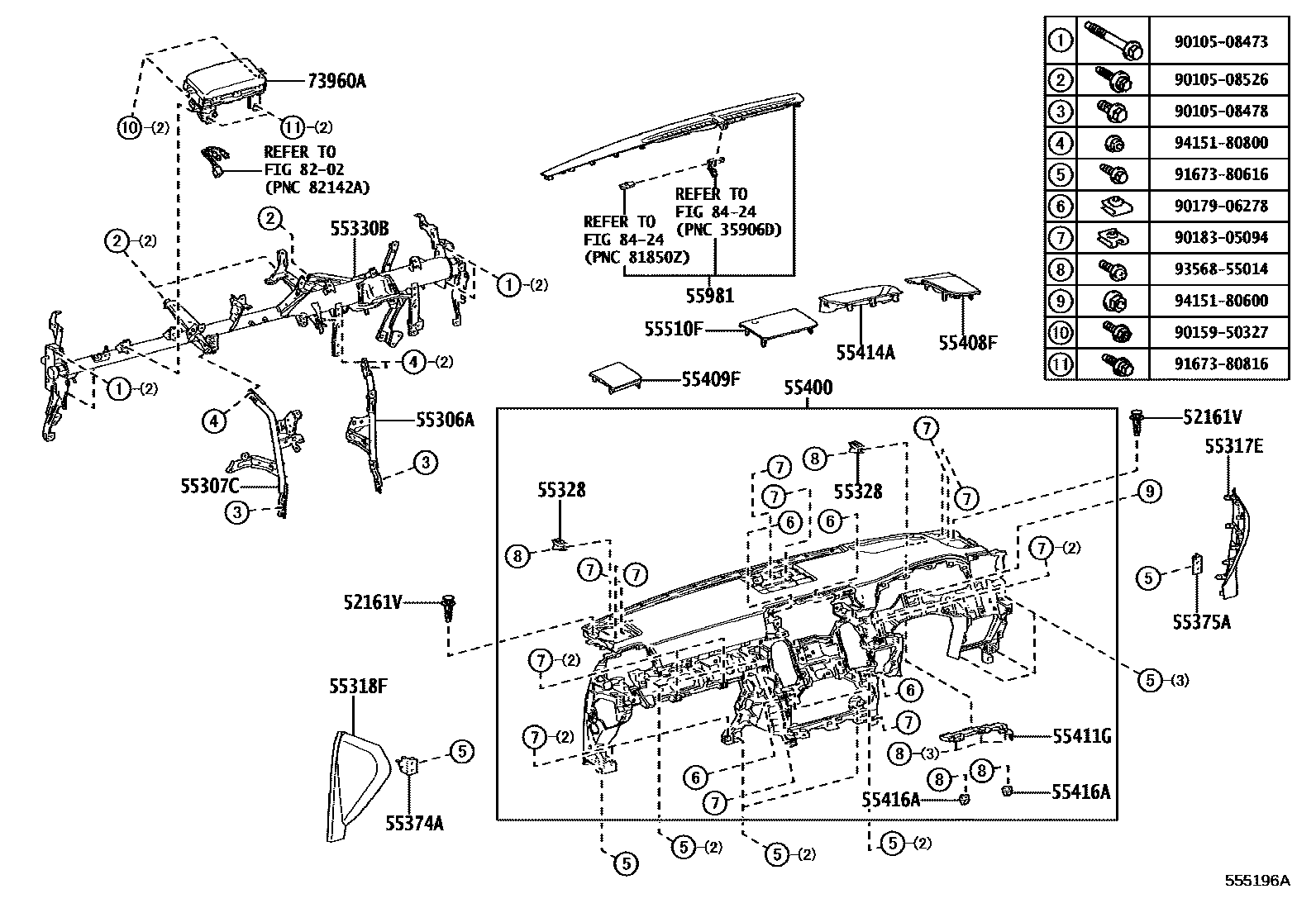

INSTRUMENT PANEL & GLOVE COMPARTMENT
52161VPIECE, INSTRUMENT PANEL
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55317EPANEL, INSTRUMENT SIDE, NO.1
BLACK,TRIM0#,2#,3#,4#
55318FPANEL, INSTRUMENT SIDE, NO.2
BLACK,TRIM0#,2#,3#,4#
55328PIN, INSTRUMENT PANEL, NO.1
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
55374ABRACKET, INSTRUMENT PANEL LOWER MOUNTING, RH
55375ABRACKET, INSTRUMENT PANEL LOWER MOUNTING, LH
55400PAD ASSY, INSTRUMENT PANEL SAFETY
SOFT BLACK,TRIM0#,2#,3#,4#
55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1
BLACK,TRIM0#,2#,3#,4#
55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2
BLACK,TRIM0#,2#,3#,4#
55411GPANEL, INSTRUMENT CLUSTER FINISH, NO.1
55414APANEL, INSTRUMENT CLUSTER FINISH, END
BLACK,TRIM0#,2#,3#,4#
55416ARETAINER, METER HOOD, NO.1
55510FCOVER ASSY, SPEAKER OPENING, NO.1
BLACK,TRIM0#,2#,3#,4#
55981GARNISH, DEFROSTER NOZZLE, NO.1
BLACK,TRIM0#,2#,3#,4#
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
8202
8424
9010508473
main90105-08473
9010508478
main90105-08478
9010508526
main90105-08526
9015950327
main90159-50327
9017906278
main90179-06278
9018305094
main90183-05094
9167380616
main91673-80616
9167380816
main91673-80816
9356855014
main93568-55014
9415180600
main94151-80600
9415180800
main94151-80800
31 parts on this diagram · 4 diagrams in section
