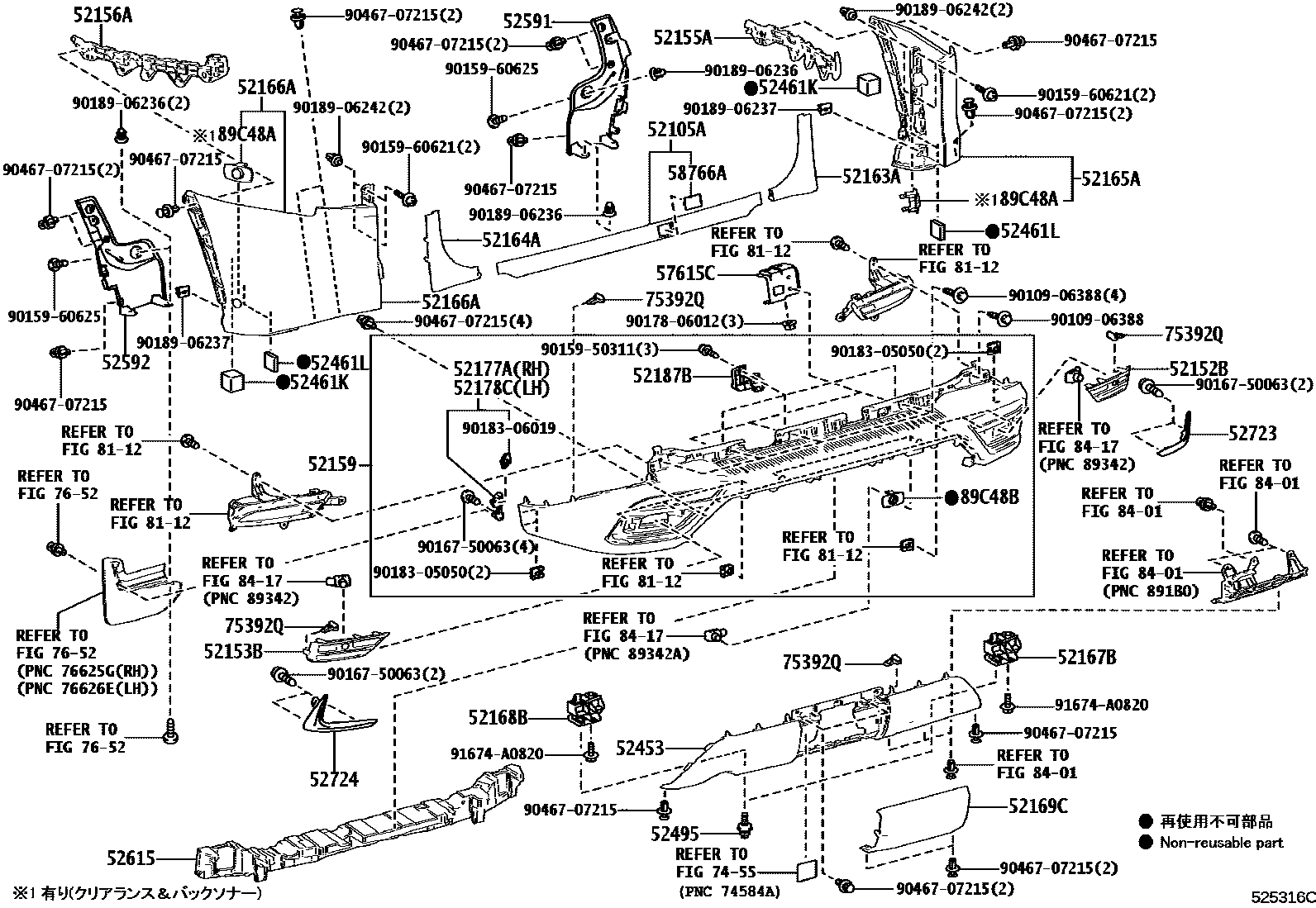

REAR BUMPER & BUMPER STAY
52105ABUMPER SUB-ASSY, REAR CENTER
52152BEXTENSION, REAR BUMPER, RH
52153BEXTENSION, REAR BUMPER, LH
52155ASUPPORT, REAR BUMPER SIDE, RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52159COVER, REAR BUMPER
52163APLATE, REAR BUMPER, RH
52164APLATE, REAR BUMPER, LH
52165ACOVER, REAR BUMPER, UPR RH
52166ACOVER, REAR BUMPER, UPR LH
52167BBRACKET, REAR BUMPER EXTENSION MOUNTING, RH
52168BBRACKET, REAR BUMPER EXTENSION MOUNTING, LH
52169CCOVER, REAR BUMPER, LOWER
52177ARETAINER, REAR BUMPER EXTENSION, RH
52178CRETAINER, REAR BUMPER EXTENSION, LH
52187BGUIDE, REAR BUMPER LOCATION
52453GUARD, REAR BUMPER, CENTER
52461KPAD, REAR BUMPER, NO.1
52461LPAD, REAR BUMPER, NO.2
52495BOLT, REAR BUMPER PAD, NO.1
52591SEAL, REAR BUMPER SIDE, RH
52592SEAL, REAR BUMPER SIDE, LH
52615ABSORBER, REAR BUMPER ENERGY
52723MOULDING, REAR BUMPER EXTENSION, RH
52724MOULDING, REAR BUMPER EXTENSION, LH
57615CBRACKET, REAR BUMPER ARM
58766ACOVER, JACK BOX HOLE
7455
75392QRETAINER, OUTSIDE MOULDING, NO.2
7652
8112
8401
8417
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
DUMMY-MAT BLACK
9010906388
main90109-06388
9015950311
main90159-50311
9015960621
main90159-60621
9015960625
main90159-60625
9016750063
main90167-50063
9017806012
main90178-06012
9018305050
main90183-05050
9018306019
main90183-06019
9018906236
main90189-06236
9018906237
main90189-06237
9018906242
main90189-06242
9046707215
main90467-07215
91674A0820
main91674-A0820
48 parts on this diagram · 2 diagrams in section
