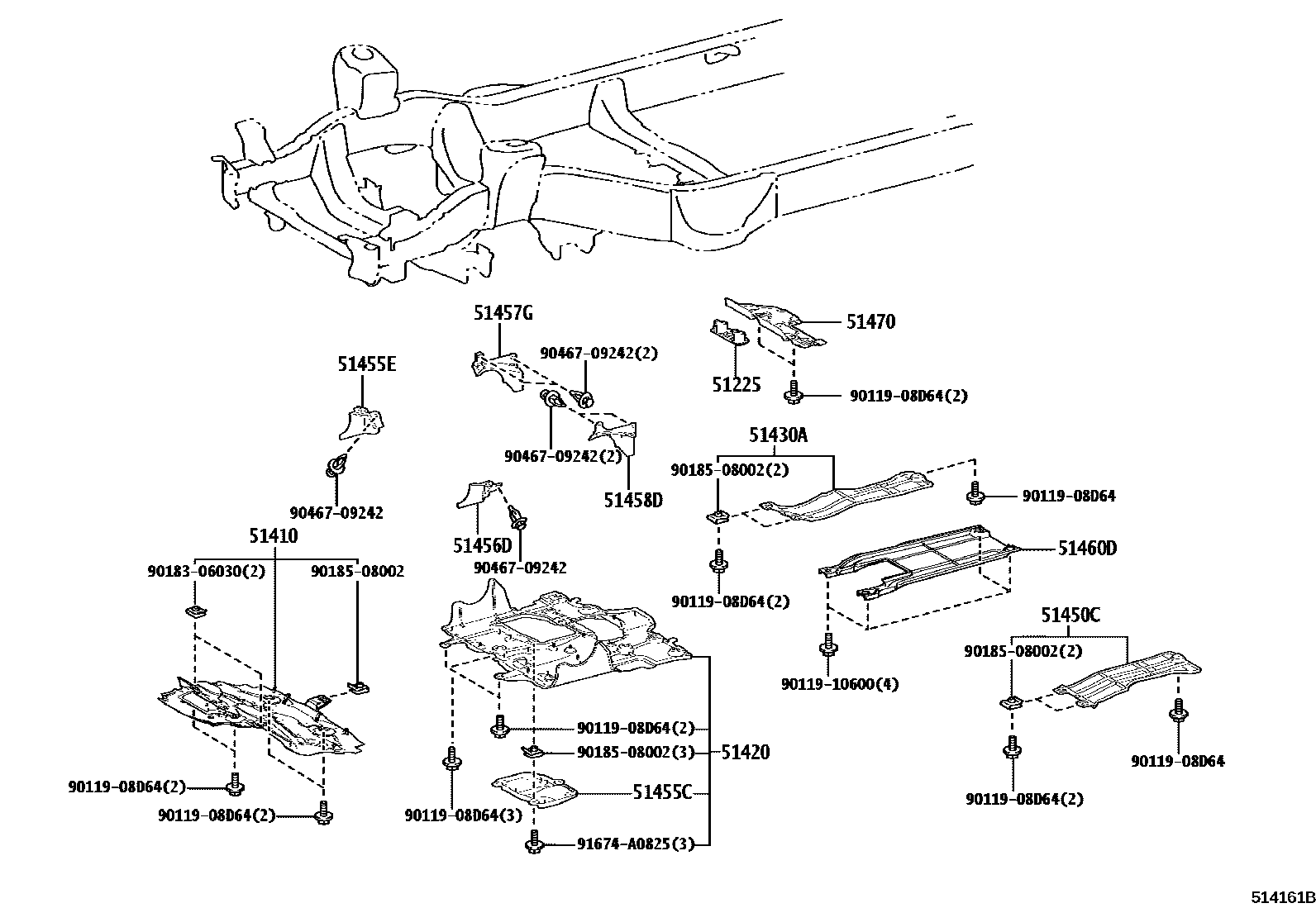

SUSPENSION CROSSMEMBER & UNDER COVER

51225COVER, ENGINE MOUNTING HOLE, NO.3

main51225-60020iVJA310202112-202411

51410COVER ASSY, ENGINE UNDER, NO.1

main51410-60170iVJA310202112-202411

51420COVER ASSY, ENGINE UNDER, NO.2

main51420-60110iVJA310202112-202411

51430ACOVER ASSY, FRAME UNDER, RH

main51430-60010iVJA310202112-202411

51450CCOVER ASSY, FRAME UNDER, LH

main51450-60070iVJA310202112-202411

51455CSEAL, ENGINE UNDER COVER, NO.2

main51466-60030iVJA310202112-202411

51455ESEAL, FRAME UNDER, NO.1 RH

main51455-60100iVJA310202112-202411

51456DSEAL, FRAME UNDER, NO.1 LH

main51456-60110iVJA310202112-202411

51457GSEAL, FRAME UNDER, NO.2 RH

main51457-60040iVJA310202112-202411

51458DSEAL, FRAME UNDER, NO.2 LH

main51458-60040iVJA310202112-202411

51460DCOVER ASSY, TRANSMISSION UNDER, FRONT

main51460-60020iVJA310202112-202411

51470COVER ASSY, TRANSMISSION UNDER

main51470-60020iVJA310202112-202411

9011908D64

main90119-08D64

9011910600

main90119-10600

9018306030

main90183-06030

9018508002

main90185-08002

9046709242

main90467-09242

91674A0825

main91674-A0825

18 parts on this diagram · 1 diagram in section
