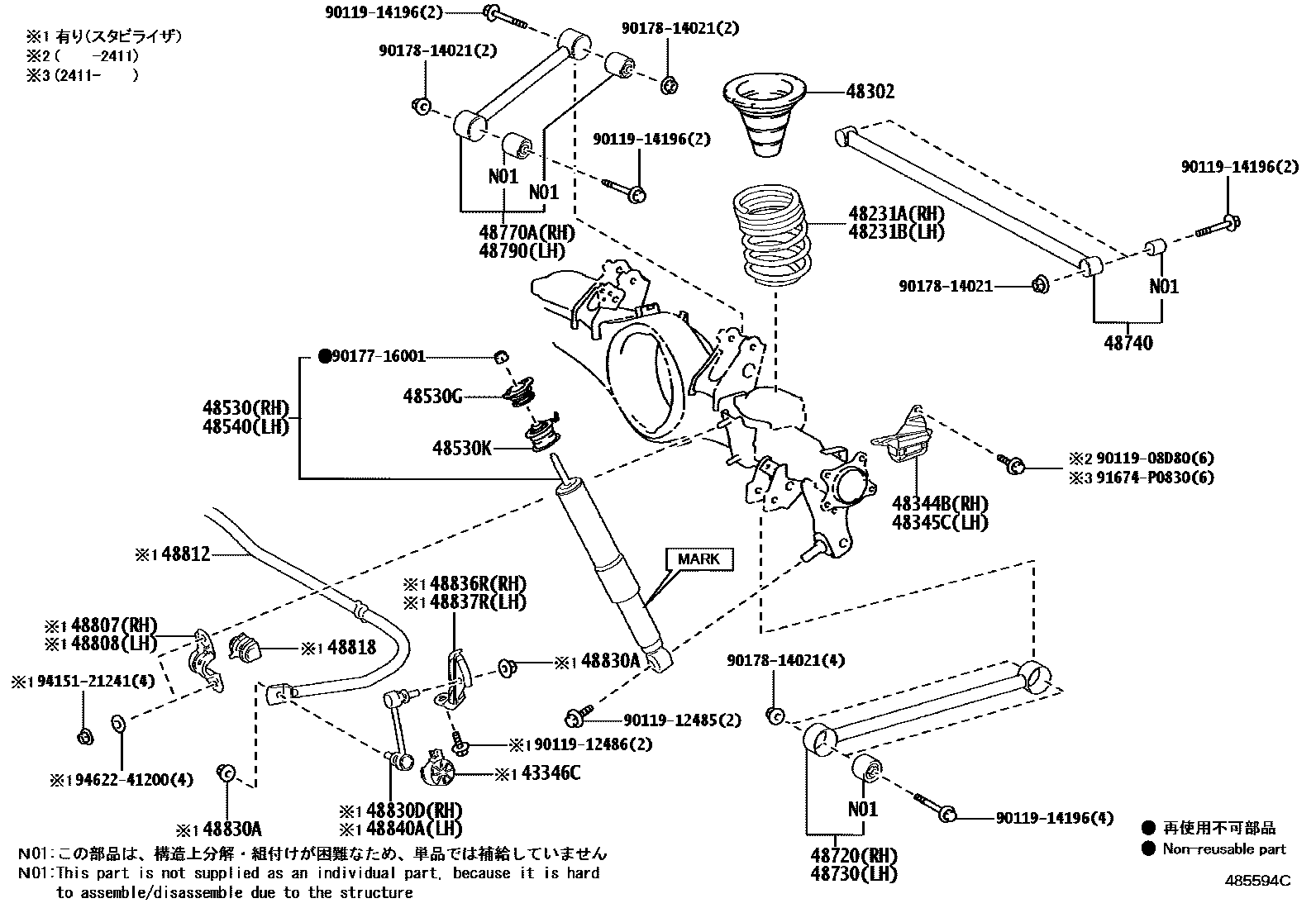

REAR SPRING & SHOCK ABSORBER
43346CPROTECTOR, LOWER BALL JOINT DUST COVER
48231ASPRING, COIL, REAR RH
48231BSPRING, COIL, REAR LH
48302SPRING SUB-ASSY, HOLLOW
48344BSTOPPER, BUMPER, REAR RH
48345CSTOPPER, BUMPER, REAR LH
48530ABSORBER ASSY, SHOCK, REAR RH
48530GCUSHION, REAR SHOCK ABSORBER, NO.1
48530KCUSHION, REAR SHOCK ABSORBER, NO.2
48540ABSORBER ASSY, SHOCK, REAR LH
48720ARM ASSY, LOWER CONTROL, RH
48730ARM ASSY, LOWER CONTROL, LH
48740ROD ASSY, REAR LATERAL CONTROL
48770AARM ASSY, UPPER CONTROL, REAR RH
48790ARM ASSY, UPPER CONTROL, REAR LH
48807BRACKET, REAR STABILIZER BAR, RH
main4884A-60020
48808BRACKET, REAR STABILIZER BAR, LH
main4884A-60020
48812BAR, STABILIZER, REAR
main48812-60320
48818BUSH, STABILIZER, REAR
main48818-60090
48830ANUT(FOR REAR STABILIZER LINK)
48830DLINK ASSY, REAR STABILIZER, RH
48836RBRACKET, REAR STABILIZER END, RH
48837RBRACKET, REAR STABILIZER END, LH
48840ALINK ASSY, REAR STABILIZER, LH
9011908D80
main90119-08D80
9011912485
main90119-12485
9011912486
main90119-12486
9011914196
main90119-14196
9017716001
main90177-16001
9017814021
main90178-14021
91674P0830
main91674-P0830
9415121241
main94151-21241
9462241200
main94622-41200
33 parts on this diagram · 1 diagram in section
