V-BELT

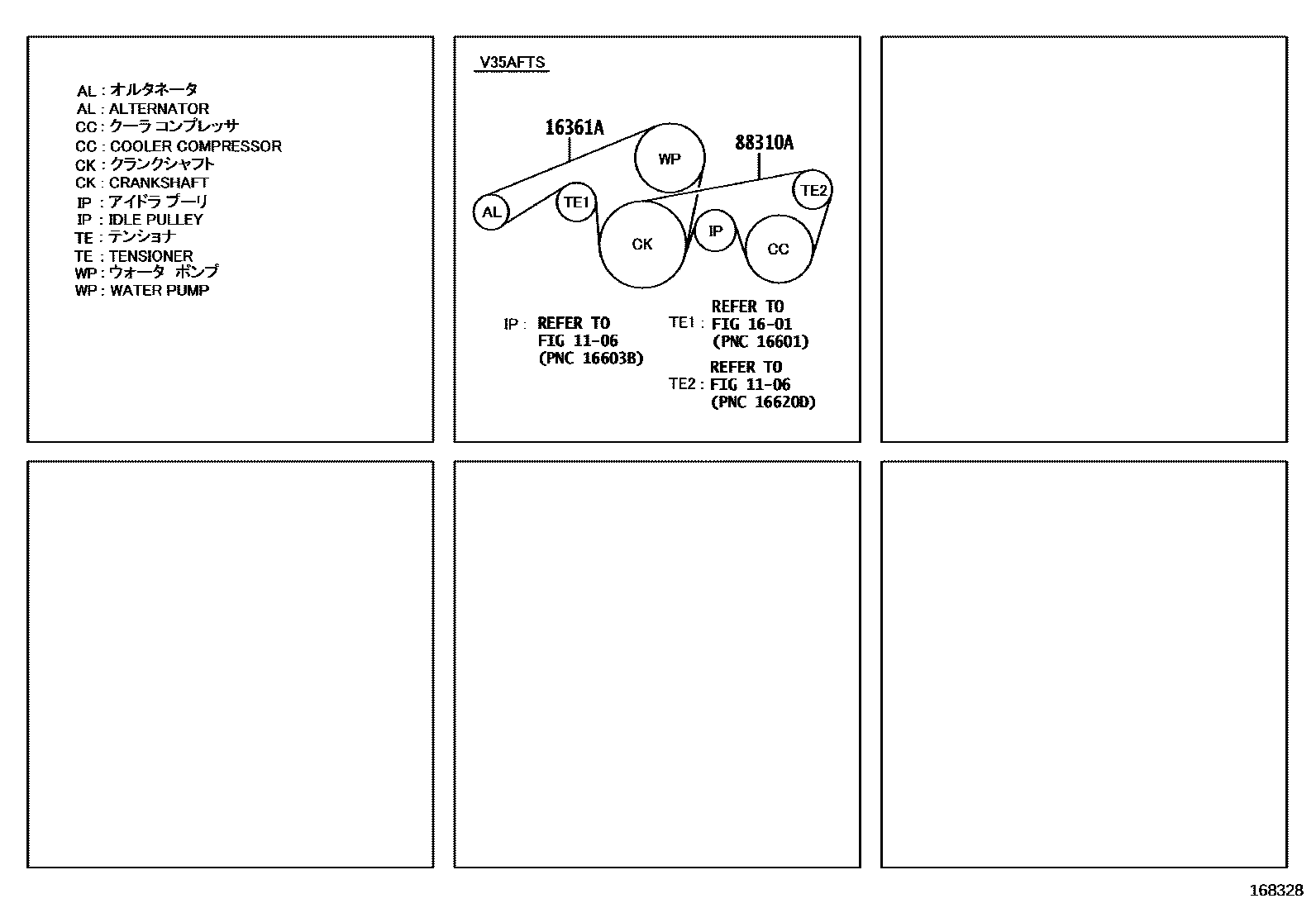

Parts diagram

1106

1601

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02776i202112-202411

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90916-02750i202112-202411

4 parts on this diagram · 1 diagram in section
