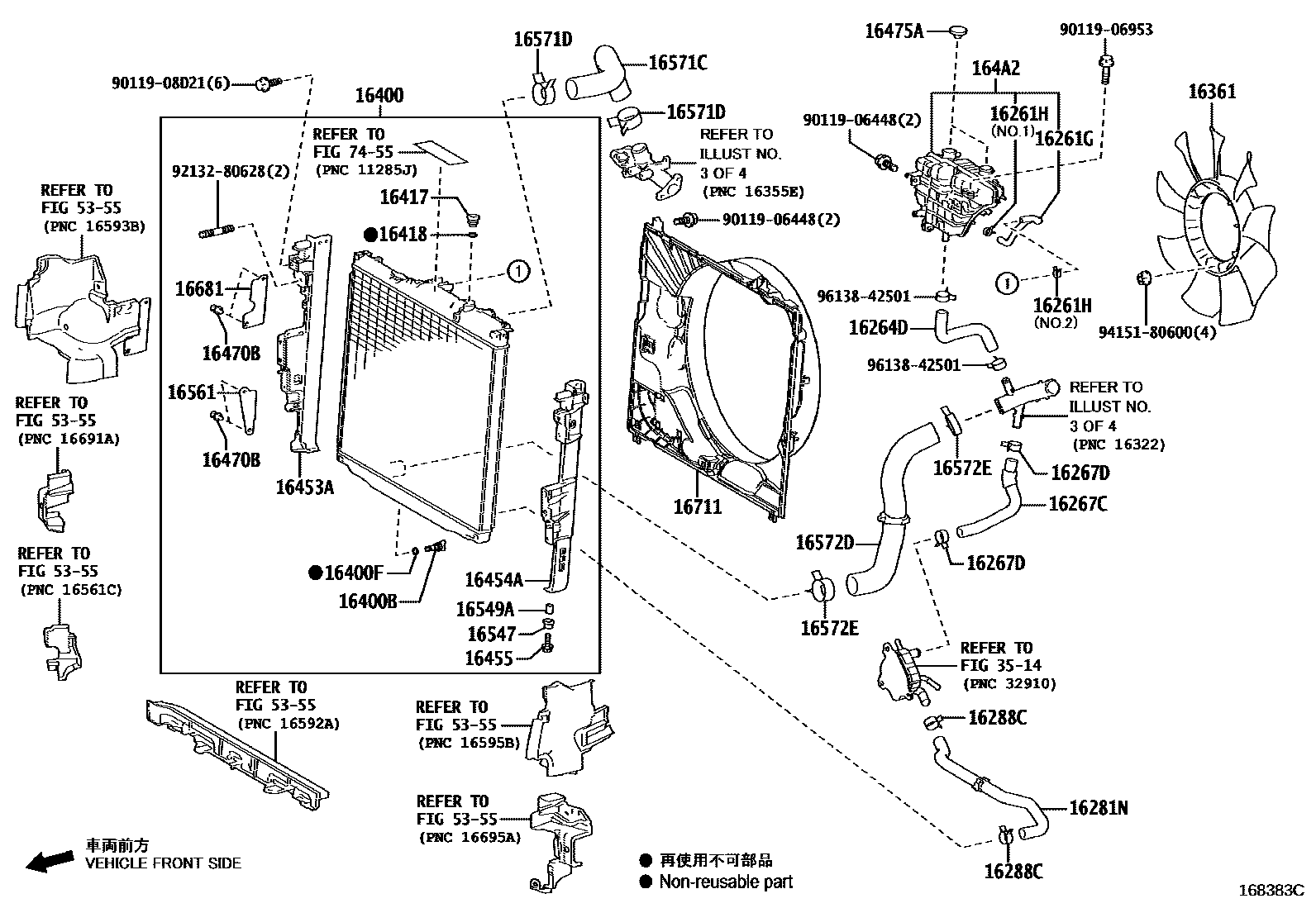

RADIATOR & WATER OUTLET
16261GHOSE, WATER BY-PASS, NO.1
16261HCLIP(FOR WATER BY-PASS HOSE NO.1)
16264HOSE, WATER BY-PASS, NO.2
16264DHOSE, WATER BY-PASS, NO.2
16267CHOSE, WATER BY-PASS, NO.4
16267DCLIP(FOR WATER BY-PASS HOSE NO.4)
16281HOSE, WATER BY-PASS, NO.4
16281NHOSE, WATER BY-PASS, NO.4
16288PIPE, WATER BY-PASS, NO.4
16288CCLIP(FOR WATER BY-PASS PIPE NO.4)
16361FAN
16400RADIATOR ASSY
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16417COCK
16418PACKING
16453APLATE, RADIATOR SIDE SUPPORT, RH
16454APLATE, RADIATOR SIDE SUPPORT, LH
16455BOLT, RADIATOR SIDE SUPPORT PLATE
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16475ACAP, RESERVE TANK
164A2TANK, RESERVE SEALED W/O CAP
16547BUSH, RADIATOR SUPPORT, NO.1
16549ACOLLAR, RADIATOR SUPPORT, NO.1
16561SEAL, RADIATOR TO SUPPORT, NO.1
16571CHOSE, RADIATOR, NO.1
16571DCLIP, RADIATOR HOSE, NO.1
16572DHOSE, RADIATOR, NO.2
16572ECLIP, RADIATOR HOSE, NO.2
16681PLATE, RADIATOR UPPER AIR GUIDE
16711SHROUD, FAN
3514
5355
7455
9011906448
main90119-06448
9011906953
main90119-06953
9011908D21
main90119-08D21
9213280628
main92132-80628
9415180600
main94151-80600
9613842501
main96138-42501
41 parts on this diagram · 4 diagrams in section
