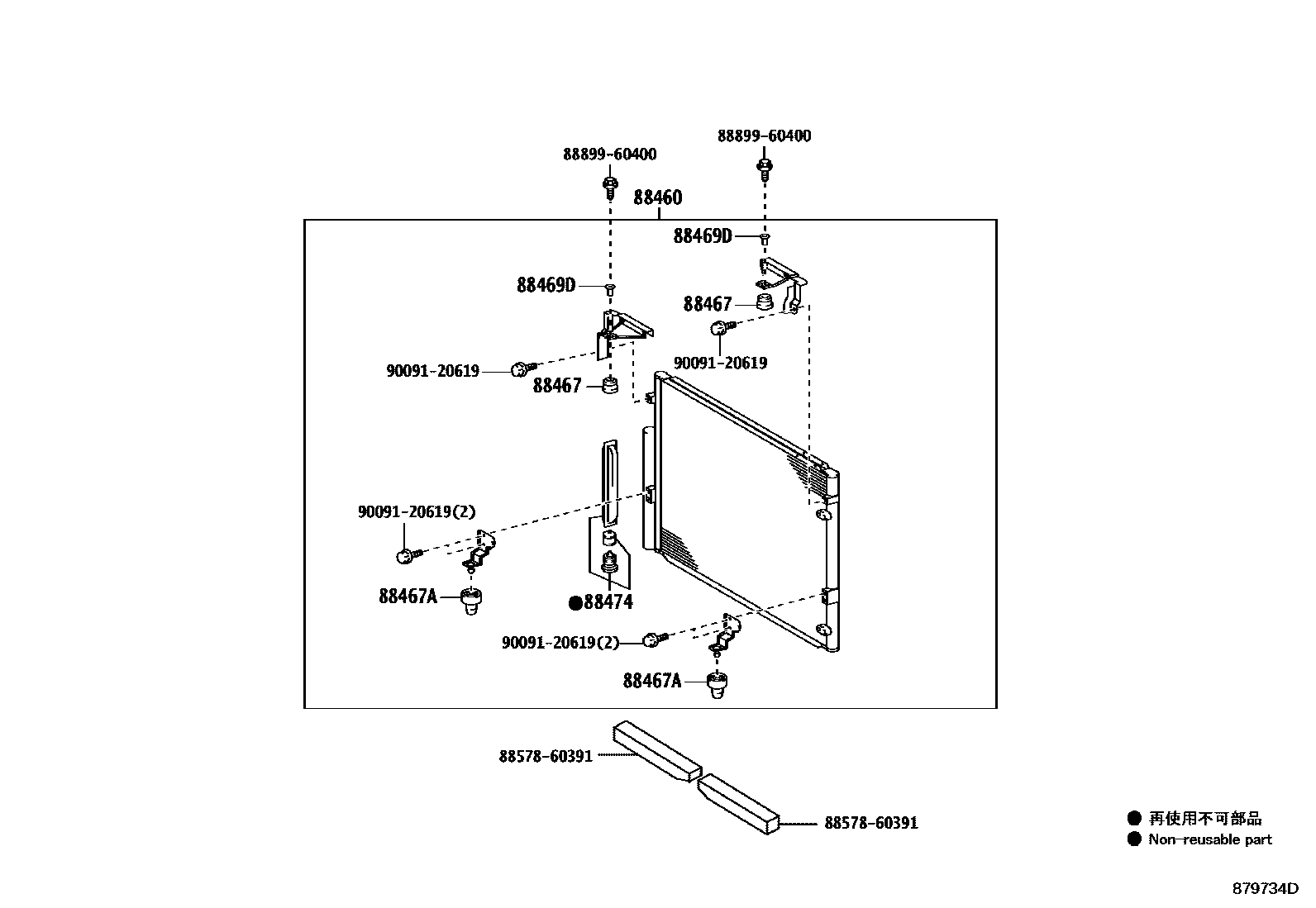

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1������ 0002 1���� 0003 1��

88460CONDENSER ASSY, COOLER

main88460-60400iURJ201201509-202006

main88460-60570iURJ201202006-202111

88467CUSHION, COOLER CONDENSER, NO.1

main88467-12180iURJ201201509-202008

88467ACUSHION, COOLER CONDENSER, NO.2

main88467-60010iURJ201201509-202008

88469DCOLLAR, CONDENSER BRACKET, NO.1

main88469-52010iURJ201201509-202008

88474DRYER, COOLER

main88474-12030iURJ201201509-202111

8857860391PAKING, COOLER AIR DUCT

main88578-60391

8889960400COVER, EVAPORATOR

main88899-60400

9009120619

main90091-20619

8 parts on this diagram · 3 diagrams in section
