ANTENNA

86050ANTENNA ASSY, TELEVISION

main86050-60180iURJ201201509

86077COVER KIT, ANTENNA

main86077-48020-A0iURJ201201509-201708

WHITE PEARL CS.,077

main86077-48020-A2iURJ201201708

SONIC QUARTZ,085

main86077-48020-B0iURJ201201509-202008

MERCURY GRAY MC.,1H9

main86077-48020-B2iURJ201201509

SONIC TITANIUM,1J7

main86077-48020-C0iURJ201201509

BLACK,202

main86077-48020-C2iURJ201201509

STARLIGHT BLACK GF.,217

main86077-48020-E0iURJ201201509-201912

SLEEK ECRU ME.,4U7

main86077-48020-G0iURJ201202008

TERRANE KHAKI M.M.,6X4

main86077-48020-J0iURJ201201509-202101

DEEP BLUE MC.,8X5

86101CORD SUB-ASSY, ANTENNA

main86101-60N20iURJ201201509

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-60K50iURJ201201509

86101QCORD SUB-ASSY, ANTENNA, NO.4

main86101-60L00iURJ201201509

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-60860iURJ201201509

86300CANTENNA ASSY, AMPLIFIER, NO.2

main86300-60621iURJ201201509

main86300-60631iURJ201201509

86760AANTENNA ASSY, TELEPHONE

main86760-48070iURJ201201509

86769HOUSING, ROOF ANTENNA

main86769-53010iURJ201201509

827111A770WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A770

9011906A06

main90119-06A06

9017906274

main90179-06274

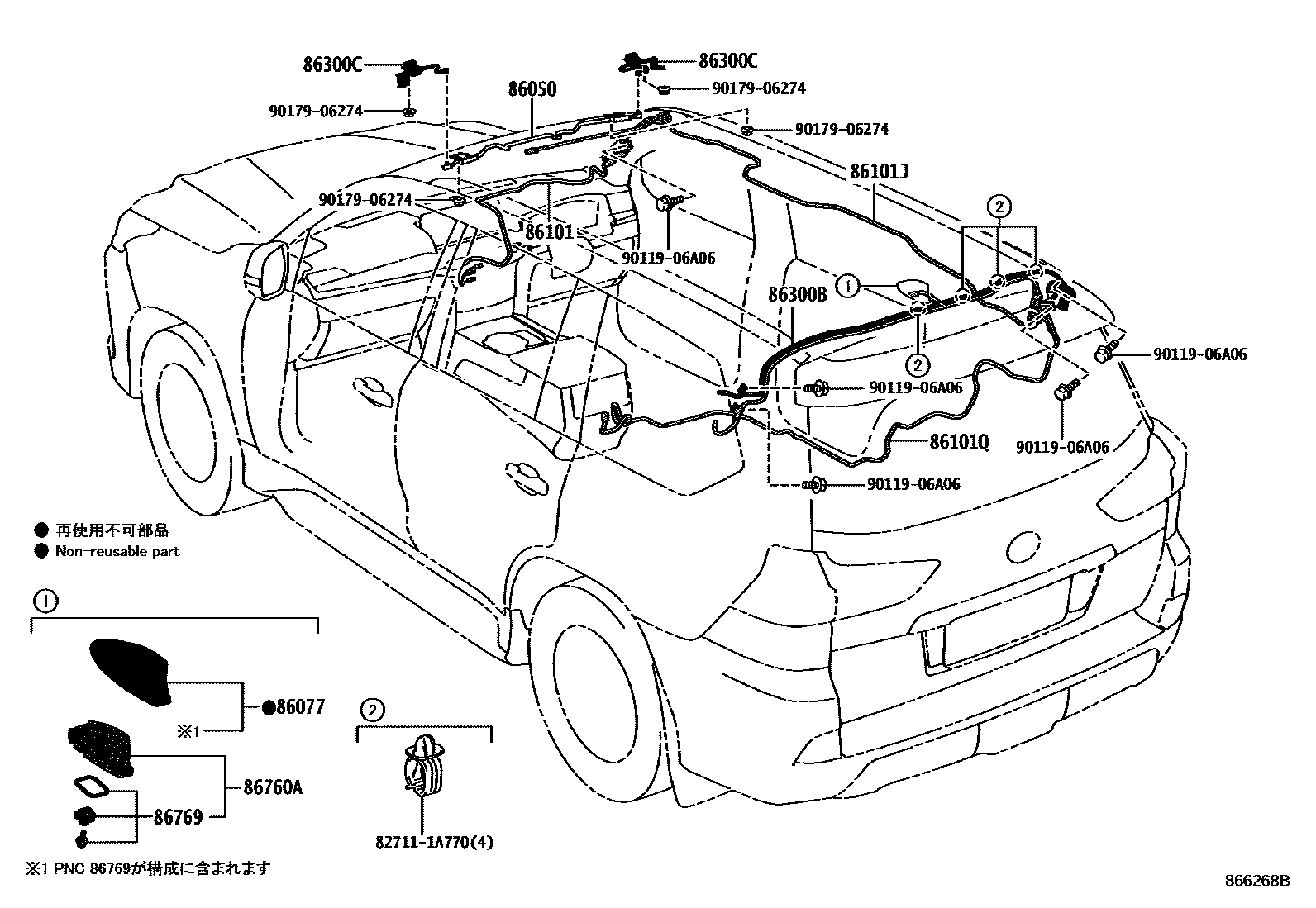

12 parts on this diagram · 1 diagram in section
