REAR COMBINATION LAMP
52562ERETAINER, REAR BUMPER, UPPER RH
52563DRETAINER, REAR BUMPER, UPPER LH
6151
76801EGARNISH SUB-ASSY, BACK DOOR, OUTSIDE RH
76802DGARNISH SUB-ASSY, BACK DOOR, OUTSIDE LH
81496GUIDE, REAR COMBINATION LAMP
81496CGUIDE, REAR COMBINATION LAMP, NO.2
81497COVER, REAR COMBINATION LAMP, RH
81498COVER, REAR COMBINATION LAMP, LH
81550ECLIP(FOR REAR COMBINATION LAMP)
81551DLENS & BODY, REAR COMBINATION LAMP, RH
81557BPROTECTOR, REAR COMBINATION LAMP, RH
81558LPROTECTOR, REAR COMBINATION LAMP, RH
81561DLENS & BODY, REAR COMBINATION LAMP, LH
81567BPROTECTOR, REAR COMBINATION LAMP, LH
81568JPROTECTOR, REAR COMBINATION LAMP, LH
81580DLAMP ASSY, REAR, RH
81584AGASKET, REAR LAMP RH
81590ALAMP ASSY, REAR, LH
81594AGASKET, REAR LAMP LH
5256160040RETAINER, REAR BUMPER, UPPER CENTER
main52561-60040
7681726040CLIP, BACK DOOR OUTSIDE GARNISH
main76817-26040
9010906350
main90109-06350
9016740018
main90167-40018
9017605018
main90176-05018
9017905102
main90179-05102

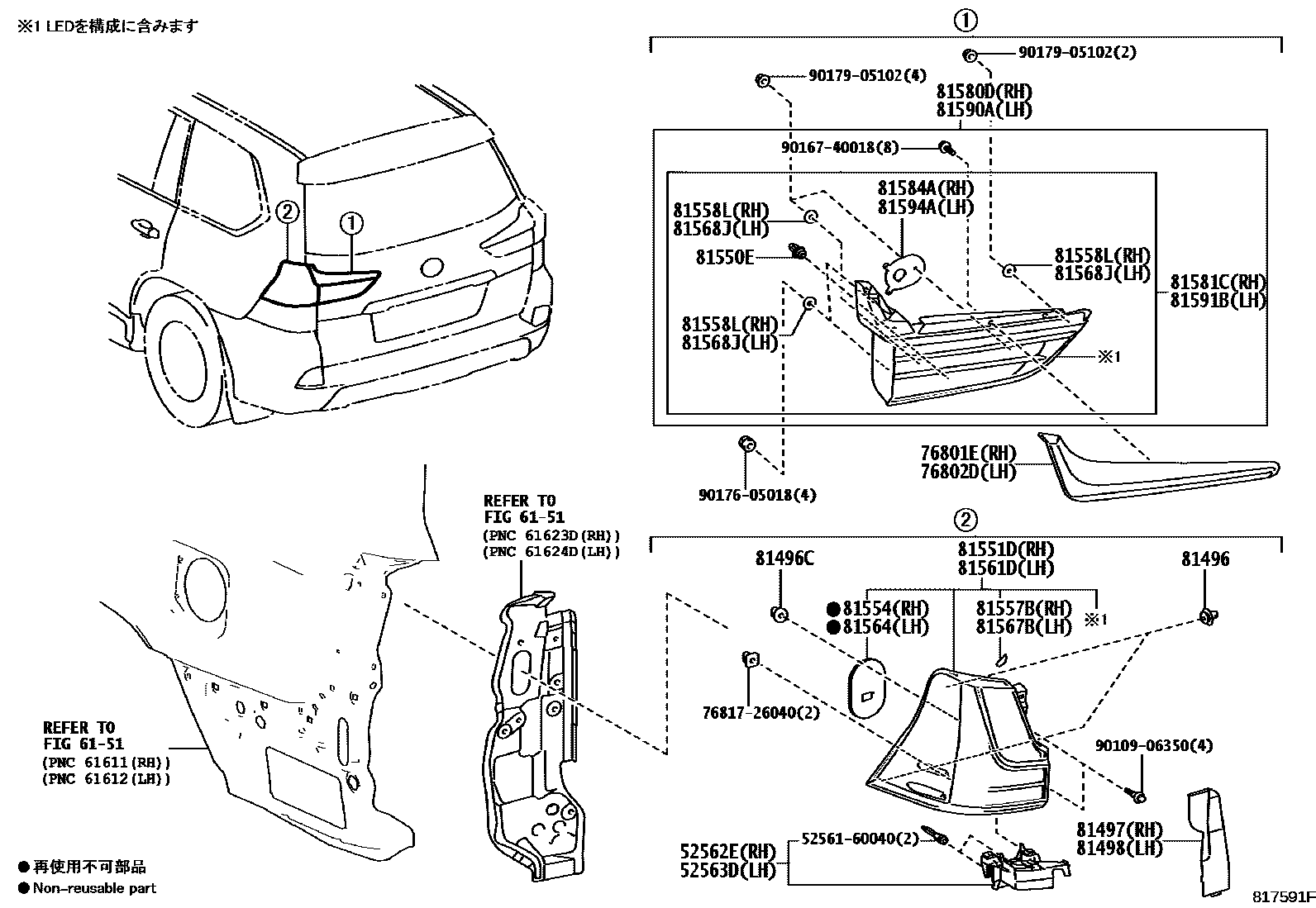

30 parts on this diagram · 1 diagram in section
