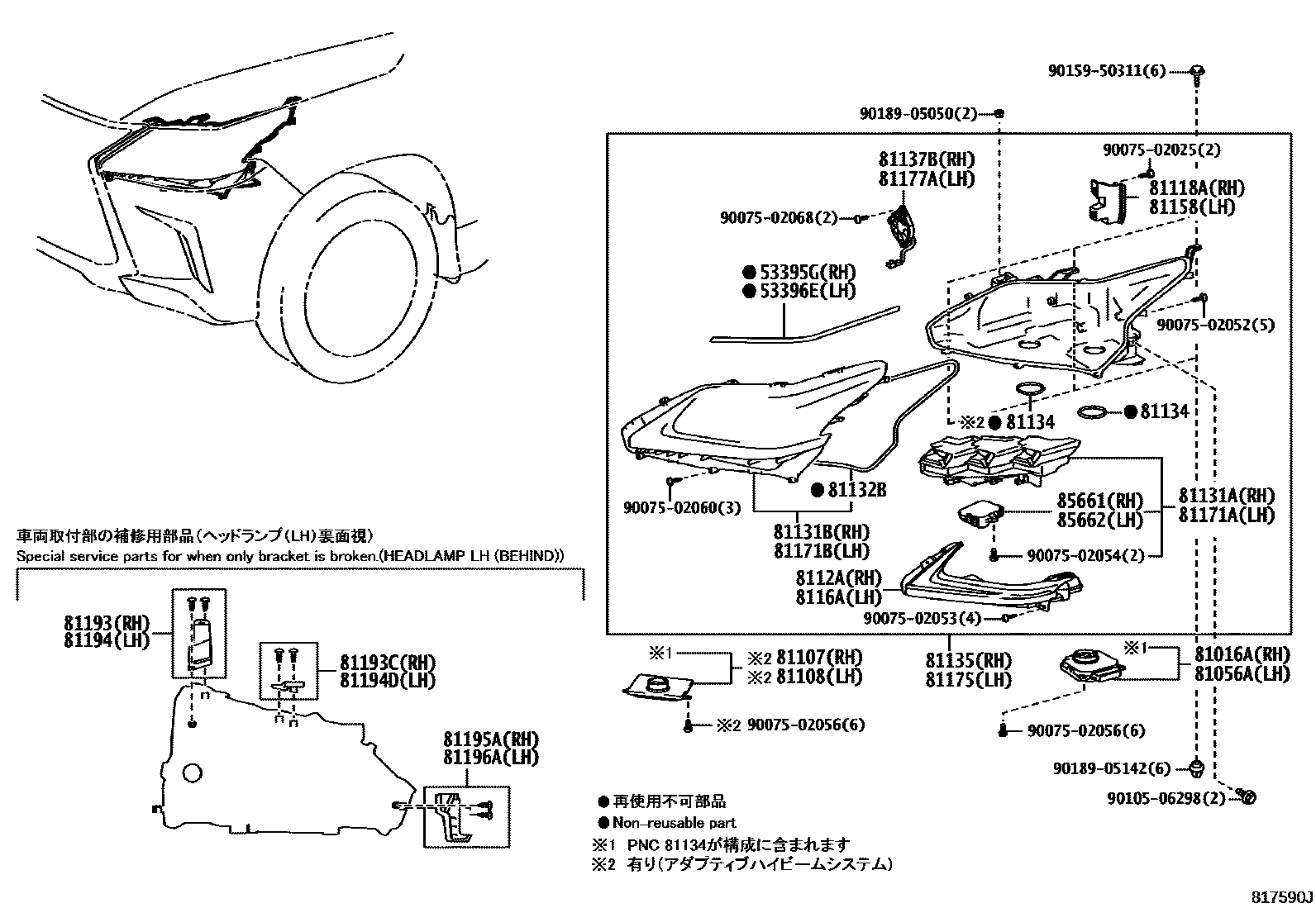

HEADLAMP

53395GSEAL, HOOD TO FRONT END PANEL

main53395-60100iURJ201201509-201811

sub53395-60101

main53395-60101iURJ201201811

53396ESEAL, HOOD TO FRONT END PANEL, NO.2

main53396-60070iURJ201201509-201811

sub53396-60071

main53396-60071iURJ201201811

81016ACOMPUTER SUB-ASSY, HEADLAMP, RH

main81016-60K80iURJ201201509-201708

main81016-60L10iURJ201201708-202008

main81016-60L11iURJ201202008

81056ACOMPUTER SUB-ASSY, HEADLAMP, LH

main81056-60J60iURJ201201509-201701

sub81056-60N40

main81056-60L20iURJ201201708-202008

main81056-60L21iURJ201202008

main81056-60N40iURJ201201701-201708

81107COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH

main81107-48C90iURJ201201708

81108COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH

main81108-48C90iURJ201201708

81118ABRACKET, HEADLAMP, RH

main81118-60K80iURJ201201509

8112AUNIT, HEADLAMP CLEARANCE LED, NO.1 RH

main8112A-60K80iURJ201201509-201708

main8112A-60L10iURJ201201708

81131AUNIT, HEADLAMP, RH

main81130-60K70iURJ201201509-201708

main81130-60L00iURJ201201708

81131BHEAD LAMP LENS, RH

main81131-60L00iURJ201202008

main81131-60L20iURJ201201708-202008

main81131-60L60iURJ201201509-201708

81132BGASKET, HEADLAMP LENS

main81132-60K80iURJ201201509

81134GASKET, HEADLAMP

main90075-23003iURJ201201509

81135UNIT ASSY, HEADLAMP, RH

main81145-60L01iURJ201202008

main81145-60L21iURJ201201708-202008

main81145-60L60iURJ201201509-201703

sub81145-60L61

main81145-60L61iURJ201201703-201708

81137BFAN, HEADLAMP, RH

main81137-47660iURJ201201509

81158BRACKET, HEADLAMP, LH

main81158-60J60iURJ201201509

8116AUNIT, HEADLAMP CLEARANCE LED, NO.1 LH

main8116A-60J60iURJ201201509-201708

main8116A-60K90iURJ201201708

81171AUNIT, HEADLAMP, LH

main81170-60J50iURJ201201509-201708

main81170-60K80iURJ201201708

81171BHEAD LAMP LENS, LH

main81171-60K80iURJ201202008

main81171-60L00iURJ201201708-202008

main81171-60L40iURJ201201509-201708

81175UNIT ASSY, HEADLAMP, LH

main81185-60K81iURJ201202008

main81185-60L01iURJ201201708-202008

main81185-60L40iURJ201201509-201703

sub81185-60L41

main81185-60L41iURJ201201703-201708

81177AFAN, HEADLAMP, LH

main81137-47660iURJ201201509

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-60180iURJ201201509

81193CRETAINER, RH HEADLAMP PROTECTOR, UPPER RH

main81193-60190iURJ201201509

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-60180iURJ201201509

81194DRETAINER, LH HEADLAMP PROTECTOR, UPPER LH

main81194-60190iURJ201201509

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81195-60160iURJ201201509

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81196-60150iURJ201201509

85661MOTOR, HEADLAMP LEVELING, RH

main85661-48060iURJ201201509

85662MOTOR, HEADLAMP LEVELING, LH

main85691-48010iURJ201201509

9007502025

main90075-02025

9007502052

main90075-02052

9007502053

main90075-02053

9007502054

main90075-02054

9007502056

main90075-02056

9007502060

main90075-02060

9007502068

main90075-02068

9010506298

main90105-06298

9015950311

main90159-50311

9018905050

main90189-05050

9018905142

main90189-05142

39 parts on this diagram · 1 diagram in section
