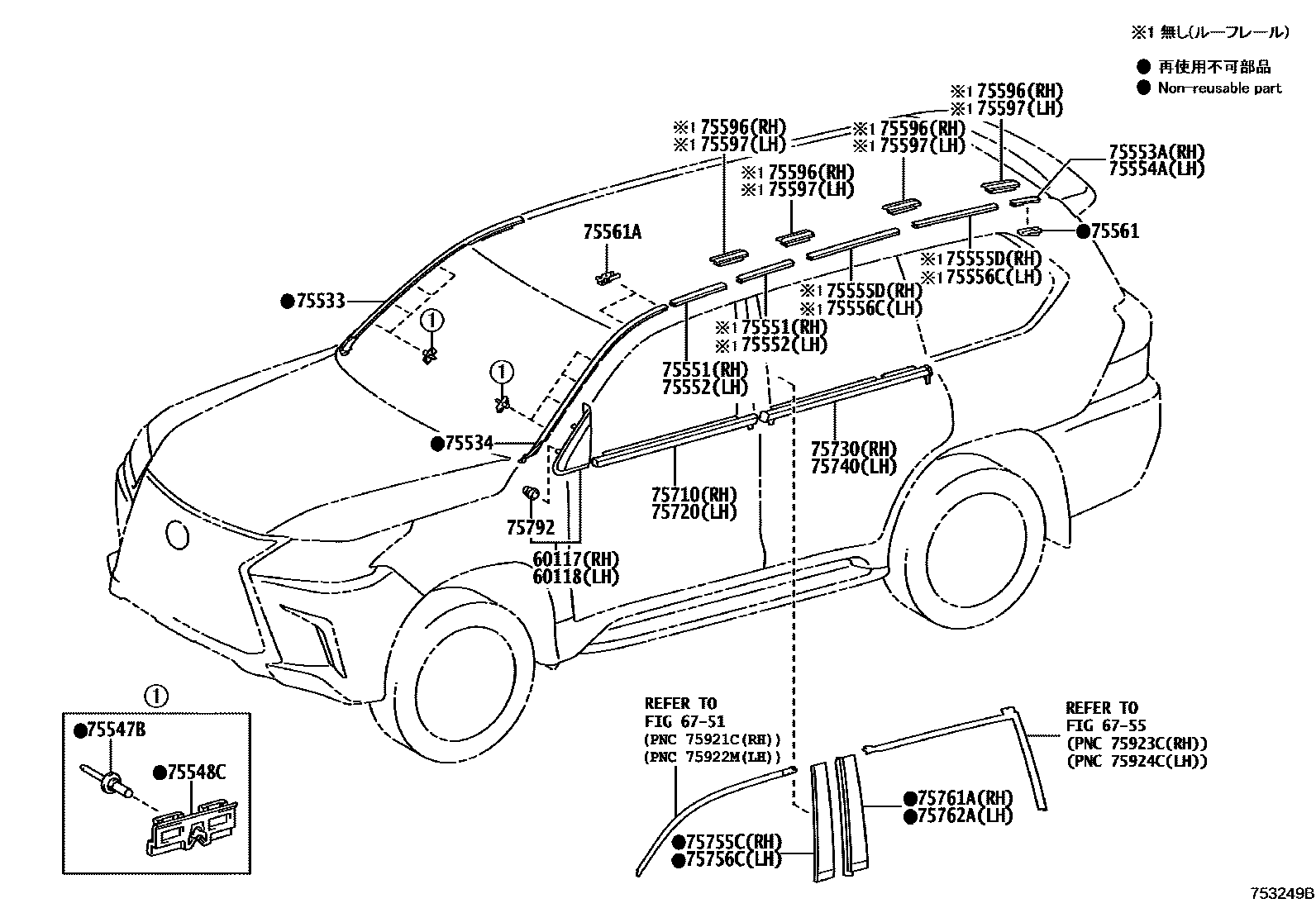

MOULDING

60117COVER SUB-ASSY, FRONT PILLAR, UPR RH

main60117-60030iURJ201201509

60118COVER SUB-ASSY, FRONT PILLAR, UPR LH

main60118-60030iURJ201201509

6751

6755

75533MOULDING, WINDSHIELD, OUTSIDE RH

main75533-60082iURJ201201509

75534MOULDING, WINDSHIELD, OUTSIDE LH

main75534-60072iURJ201201509

75547BCLIP, WINDSHIELD OUTSIDE MOULDING, NO.3

main75547-51021iURJ201201509

75548CPAD, WINDSHIELD MOULDING, NO.4

main75548-60021iURJ201201509

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75551-60110iURJ201201509

main75551-60110iURJ201201509

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75551-60110iURJ201201509

main75551-60110iURJ201201509

75553AMOULDING, ROOF DRIP SIDE FINISH, REAR RH

main75553-60040iURJ201201509

75554AMOULDING, ROOF DRIP SIDE FINISH, REAR LH

main75554-60040iURJ201201509

75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH

75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75561-60030iURJ201201509-201611

sub75561-60031

main75561-60031iURJ201201612

75561ACLIP, ROOF DRIP SIDE FINISH MOULDING

main75561-60030iURJ201201509-201611

sub75561-60031

main75561-60031iURJ201201612

75596COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, RH

main75596-35030

75597COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, LH

main75596-35030

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-60080iURJ201201509

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-60080iURJ201201509

75730MOULDING ASSY, REAR DOOR BELT, RH

main75730-60070iURJ201201509

75740MOULDING ASSY, REAR DOOR BELT, LH

main75740-60070iURJ201201509

75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH

main75755-60070iURJ201201509-201709

sub75755-60071

main75755-60071iURJ201201710

75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH

main75756-60070iURJ201201509-201709

sub75756-60071

main75756-60071iURJ201201710

75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH

main75761-60070iURJ201201509

75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH

main75762-60070iURJ201201509

75792CLIP, DOOR WINDOW FRAME MOULDING

main90044-67440iURJ201201509

27 parts on this diagram · 1 diagram in section
