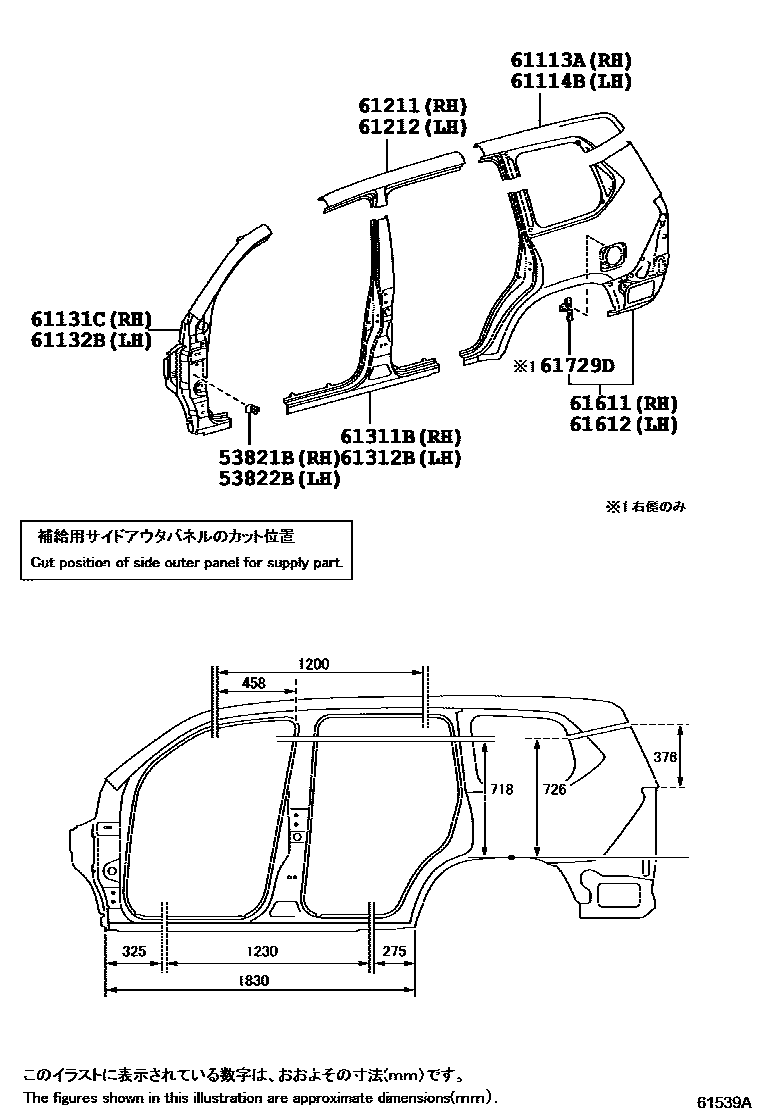

SIDE MEMBER

0001 1������� 0002 1�������,RH 0003 1�������,LH

53821BBRACKET, FRONT FENDER, REAR RH

main53821-60040iURJ201201509

53822BBRACKET, FRONT FENDER, REAR LH

main53821-60040iURJ201201509

61113APANEL, SIDE, OUTER NO.2 RH

main61113-60060iURJ201201509

61114BPANEL, SIDE, OUTER NO.2 LH

main61114-60040iURJ201201509

61131CPILLAR, FRONT BODY, OUTER RH

main61131-60370iURJ201201509

61132BPILLAR, FRONT BODY, OUTER LH

main61132-60290iURJ201201509

61211RAIL, ROOF SIDE, OUTER RH

main61211-60060iURJ201201509

61212RAIL, ROOF SIDE, OUTER LH

main61212-60060iURJ201201509

61311BPILLAR, CENTER BODY, OUTER RH

main61311-60150iURJ201201509

61312BPILLAR, CENTER BODY, OUTER LH

main61312-60220iURJ201201509

61611PANEL, QUARTER, RH

main60161-60C20iURJ201201509

61612PANEL, QUARTER, LH

main60162-60B70iURJ201201509

61729DPLATE, FUEL INLET BOX

main61729-60060iURJ201201509

13 parts on this diagram · 3 diagrams in section
