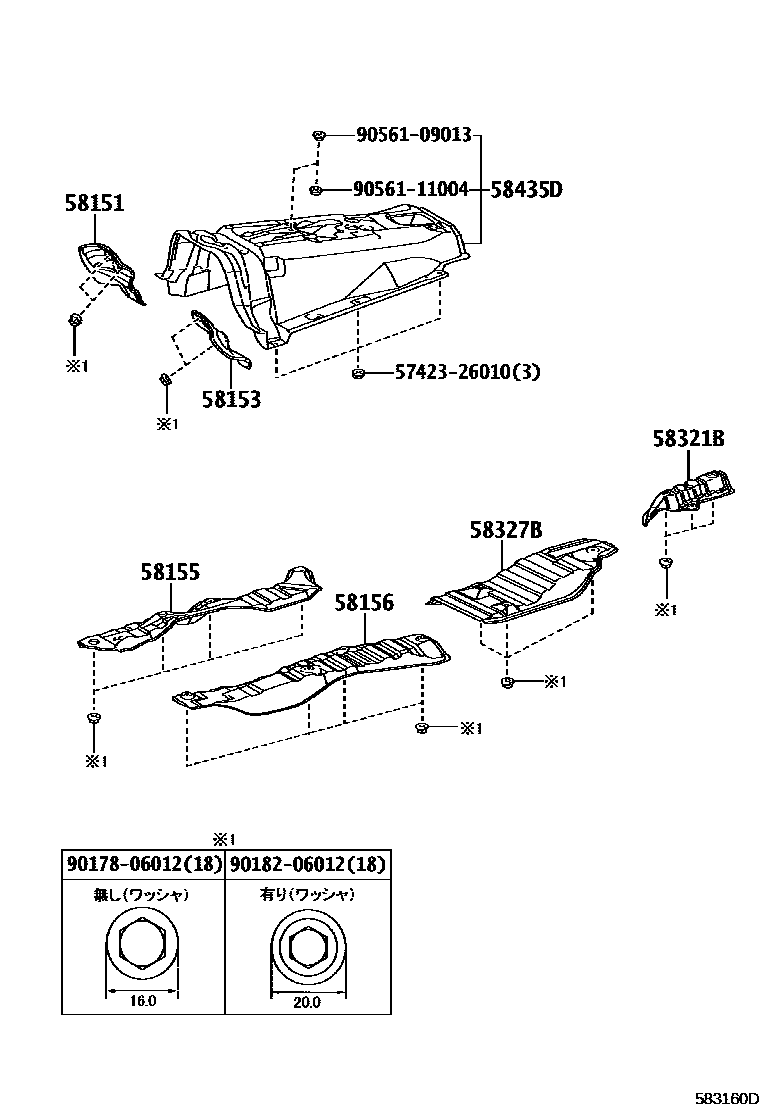

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-60110iURJ201201509-201807

sub58151-60111

main58151-60111iURJ201201808

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-60120iURJ201201509-201806

sub58153-60121

main58153-60121iURJ201201807

58155INSULATOR, FRONT FLOOR HEAT, NO.3

main58155-60061iURJ201201509-201902

main58155-60062iURJ201201902

58156INSULATOR, FRONT FLOOR HEAT, NO.4

main58156-60022iURJ201201509-201902

main58156-60023iURJ201201902

58321BINSULATOR, REAR FLOOR HEAT, NO.1

main58321-60060iURJ201201509-201901

sub58321-60061

main58321-60061iURJ201201902

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-60090iURJ201201509-201709

sub58327-60091

main58327-60091iURJ201201710

58435DSILENCER, FRONT FLOOR, CENTER

main58563-60050iURJ201201509-201611

main58563-60070iURJ201201611

5742326010BRACKET, FRONT FLOOR REINFORCEMENT, RH

main57423-26010

9017806012

main90178-06012

9018206012

main90182-06012

9056109013

main90561-09013

9056111004

main90561-11004

12 parts on this diagram · 1 diagram in section
