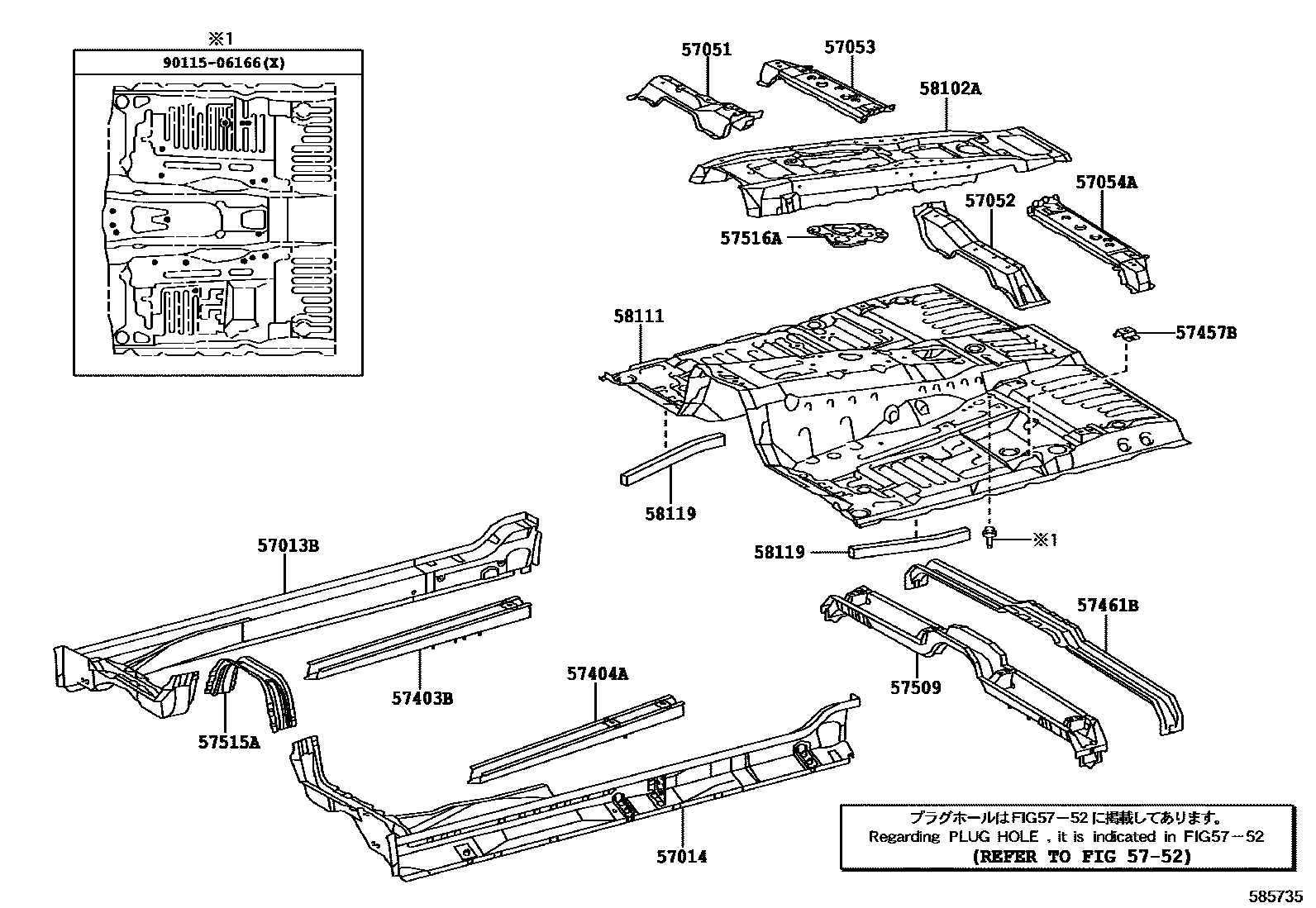

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1������� 0002 1���������

57013BMEMBER SUB-ASSY, FLOOR, FRONT RH

main57013-60010iURJ201201509

57014MEMBER SUB-ASSY, FLOOR, FRONT LH

main57014-60010iURJ201201509

57051MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-60060iURJ201201509

57052MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-60060iURJ201201509

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-60050iURJ201201509

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-60010iURJ201201509

57403BREINFORCE SUB-ASSY, FLOOR SIDE, INNER RH

main57403-60060iURJ201201509

57404AREINFORCE SUB-ASSY, FLOOR SIDE, INNER LH

main57404-60060iURJ201201509

57457BBRACKET, FRONT SEAT, FRONT

main57457-60030iURJ201201509

57461BMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1

main57461-60020iURJ201201509

57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER

main57509-60090iURJ201201509

57515AREINFORCEMENT, FRONT FLOOR, CENTER

main57515-60030iURJ201201509

57516ARETAINER, FRONT FLOOR REINFORCEMENT, FRONT

main57516-60010iURJ201201509

58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR

main58102-60090iURJ201201509

58111PAN, FRONT FLOOR

main58111-60F20iURJ201201509

sub58111-60F30

sub90333-20001

58119PLATE, FRONT FLOOR SIDE, FRONT

main58119-60070iURJ201201509

9011506166

main90115-06166

17 parts on this diagram · 2 diagrams in section
